PicoScope 3000 Series, 70 MHz PC Based Oscilloscope 4-Channel

RS庫存編號:: 846-3421
Distrelec 貨號:: 300-18-071
製造零件編號:: PicoScope 3404D
製造商:: Pico Technology

PicoScope 3000 Series, 70 MHz PC Based Oscilloscope 4-Channel

查看所有Oscilloscopes

暫時無法供應

我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。

RS庫存編號:: 846-3421
Distrelec 貨號:: 300-18-071
製造零件編號:: PicoScope 3404D
製造商:: Pico Technology

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Pico Technology
	Product Type	Oscilloscope
	Bandwidth	70MHz
	Number of Channels	4
	Model Number	PicoScope 3404D
	Oscilloscope Type	PC Based
	Interface Type	CAN, IIC, LIN, RS232, SPI, UART, USB
	Series	PicoScope 3000
	Length	190mm
	Width	170mm
	Standards/Approvals	RoHS, WEEE
	Height	40mm
	Vertical Resolution	8 bit
	Power Source	USB
	Minimum Time Base	1ns/div
	Maximum Time Base	5000s/div
	Rise Time	5ns
	Maximum Vertical Sensitivity	4V/div
	Minimum Vertical Sensitivity	4mV/div

	選取全部
	品牌 Pico Technology
	Product Type Oscilloscope
	Bandwidth 70MHz
	Number of Channels 4
	Model Number PicoScope 3404D
	Oscilloscope Type PC Based
	Interface Type CAN, IIC, LIN, RS232, SPI, UART, USB
	Series PicoScope 3000
	Length 190mm
	Width 170mm
	Standards/Approvals RoHS, WEEE
	Height 40mm
	Vertical Resolution 8 bit
	Power Source USB
	Minimum Time Base 1ns/div
	Maximum Time Base 5000s/div
	Rise Time 5ns
	Maximum Vertical Sensitivity 4V/div
	Minimum Vertical Sensitivity 4mV/div

COO (Country of Origin):: GB

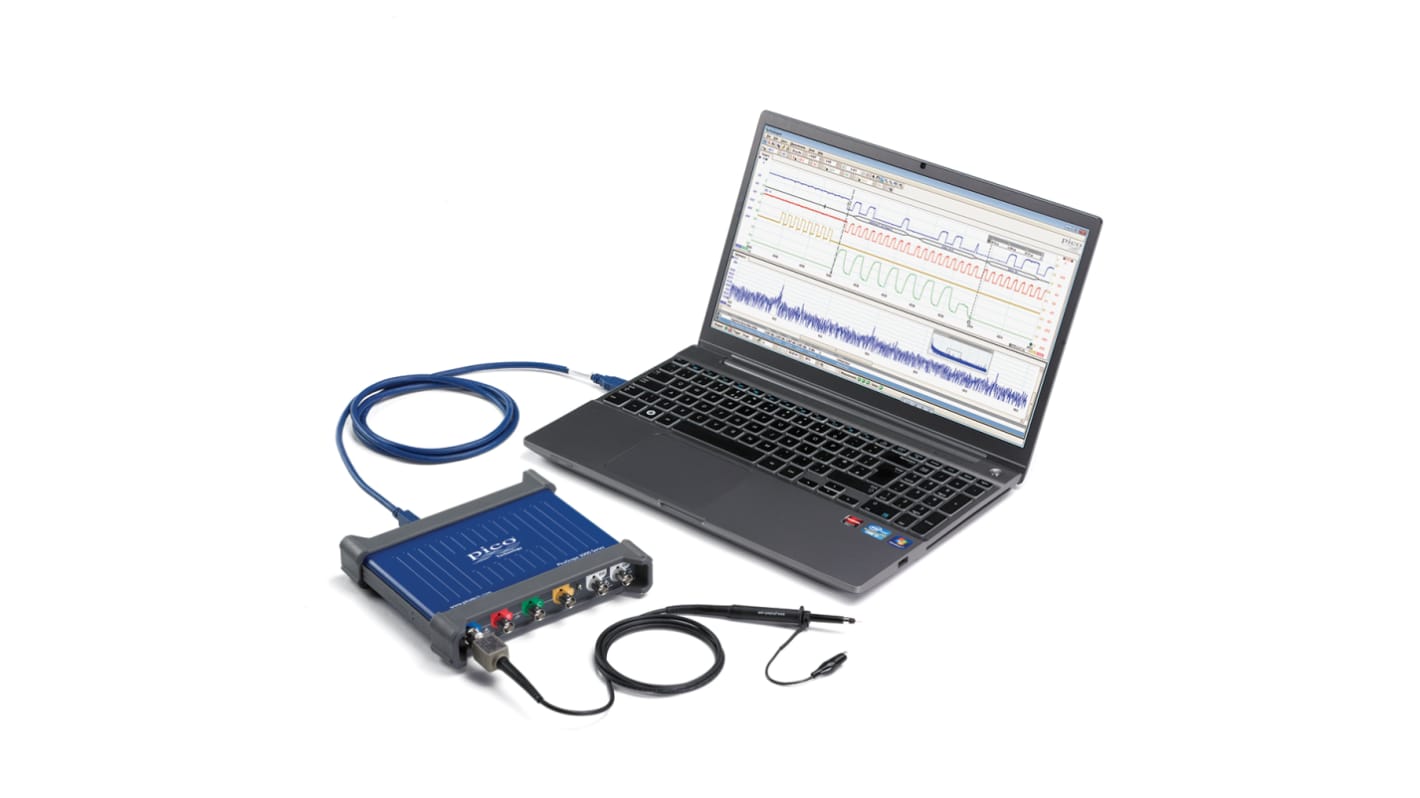

PicoScope 3000 Series Oscilloscope, 70MHz Bandwidth, 4 Channels - PicoScope 3404D

This oscilloscope is a PC-connected diagnostic instrument designed for waveform capture and analysis via USB power. It operates as a multi-channel measurement tool suitable for electrical testing and signal inspection in laboratory and field settings. The instrument supports serial and automotive communications and provides configurable timebase ranges for both fast and extended observations.

Features and Benefits:

• 70MHz bandwidth delivers detailed analogue signal visibility
• 5ns rise time captures Rapid transient events
• 8-bit vertical resolution balances speed and data size
• 4mV/div minimum sensitivity resolves small amplitude signals
• 5000s/div maximum timebase enables long-duration monitoring

Applications

• Suitable for automotive diagnostics using LIN and CAN networks
• Ideal for embedded systems debugging over SPI and I2C buses
• Used with serial devices employing RS232 and UART protocols
• Can be used for laboratory signal capture via USB PC Interface
• Suitable for field testing where portable USB power is available

What interfaces are available for connecting to external devices?

It provides CAN, I2C, LIN, RS232, SPI, UART and USB connections for diverse signalling standards.

What are the timebase extremes and how do they affect measurements?

The minimum timebase of 1ns/div permits high-speed capture while the maximum of 5000s/div allows long-term signal logging.

How is the instrument powered during operation?

The unit is powered via the USB connection, eliminating a separate mains supply.

What vertical measurement range can be expected on channels?

The vertical sensitivity ranges from 4mV/div up to 4V/div to accommodate both low- and higher-amplitude signals.

Supplied with

Switchable x1/x10 probes (1 per analog channel) in carrying case, Quick Start guide, software and reference CD, USB cables, power adaptor (with 4 analog channel models only)
