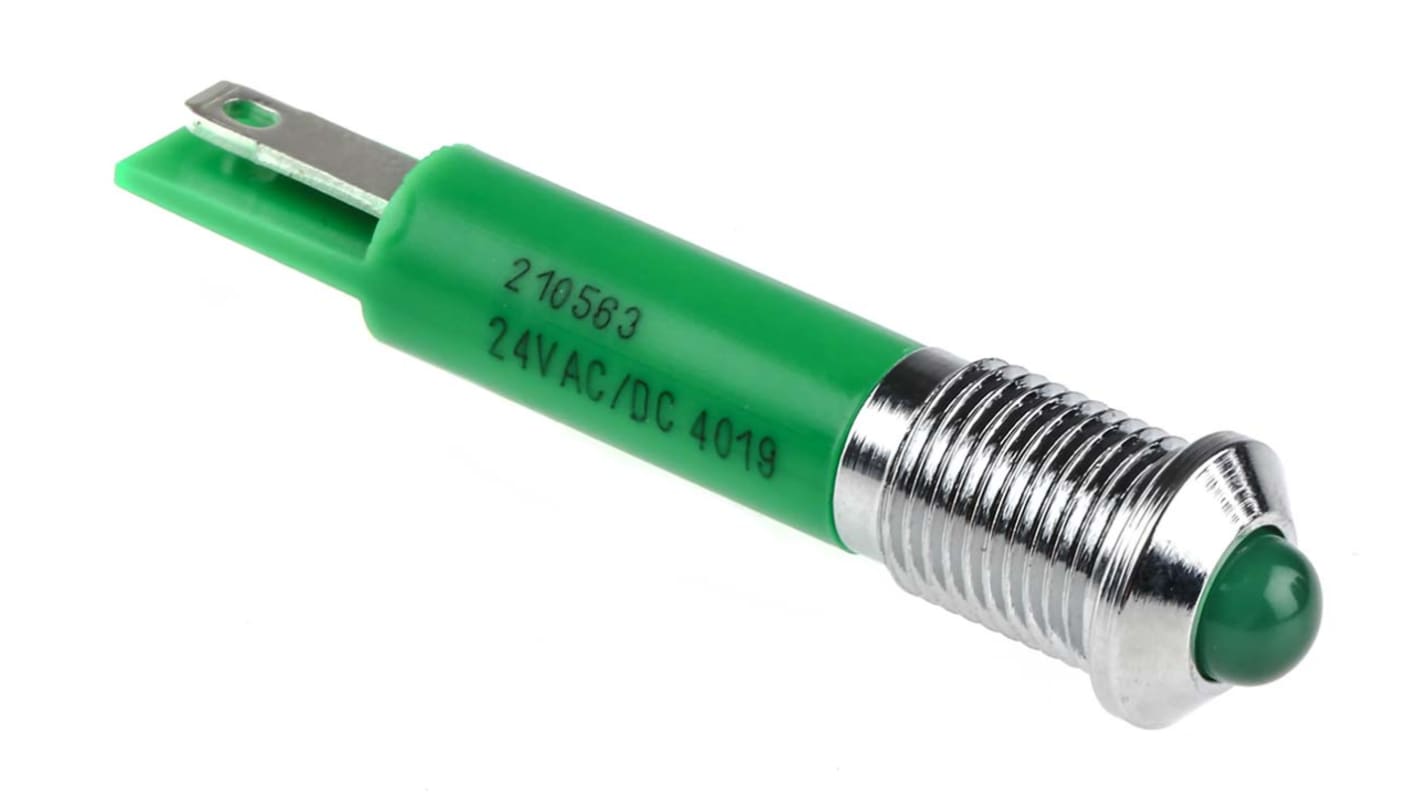

RS PRO Q8P1 Series, Green Panel Mount Indicator, Solder Tab Termination 24V dc, 8 mm
- RS庫存編號:
- 210-563
- 製造商:
- RS PRO
可享批量折扣
小計（1 件）*
HK$57.00
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 13 件從 2026年4月27日 起發貨
- 加上 300 件從 2026年6月15日 起發貨
- 加上 1,000 件從 2026年7月27日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 24 | HK$57.00 |
| 25 - 49 | HK$55.60 |
| 50 - 99 | HK$54.50 |
| 100 - 499 | HK$52.80 |
| 500 + | HK$42.90 |
* 參考價格
- RS庫存編號:
- 210-563
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Panel Mount Indicator | |
| Number of LEDs | 1 | |
| LED Colour | Green | |
| Terminal Type | Solder Tab | |
| Mount Hole Size | 8 mm | |
| Maximum Supply Voltage | 24V dc | |
| Luminous Intensity | 40mcd | |
| Standards/Approvals | RoHS, EN61340 | |
| Length | 40mm | |
| Series | Q8P1 | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Panel Mount Indicator | ||
Number of LEDs 1 | ||
LED Colour Green | ||
Terminal Type Solder Tab | ||
Mount Hole Size 8 mm | ||
Maximum Supply Voltage 24V dc | ||
Luminous Intensity 40mcd | ||
Standards/Approvals RoHS, EN61340 | ||
Length 40mm | ||
Series Q8P1 | ||
- COO (Country of Origin):
- GB
RS Pro 8mm LED Indicators
Brought to you by RS Pro, a range of high quality indicators. These LED indicators are an excellent solution to applications which require a signal or warning light. The build quality and reliability of each indicator and LED provides a high level of brightness and longevity at low level consumption. The body of these indicators available include a convenient solder lug, meaning they can be terminated through a quick and easy installation for your application.
Features and Benefits
• 5 mm coloured diffused epoxy lens
• LED Colours available include: Red, Green and Yellow
• Solder tab terminals for quick installation
• Both black satin and black chrome brass bezels are available
• 2.8 mm x 0.8 mm terminals
• Various voltage ratings
What are the uses of an Indicator?
Uses of indicators fall entirely down to the user. They can be fixed to PCB circuit boards and mounted on push buttons and switches. Primarily, these types of indicators are used within circuit boards and electronic designs. This is due to their relatively small size, as compared with other types of indicators, such as car turn signals. The LED's included within the equipment itself are reliable and excellent quality.
Why choose LED?
LED's have many benefits, the longevity and low power consumption are the main selling points of an LED. However, there are various other reasons to consider:
• Temperature - LED's give off a far cooler temperature than what an incandescent or neon light would.
• Direction - LED's will only emit light in a single direction, reducing the need for additional components, such as reflectors. Although this would not apply if the LED indicator is being used as a circuit board signal.
