3M 2500 Series Straight Surface PCB Header, 40 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded

RS庫存編號:: 212-828
製造零件編號:: N2540-6V0C-RB-WG
製造商:: 3M

3M 2500 Series Straight Surface PCB Header, 40 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded

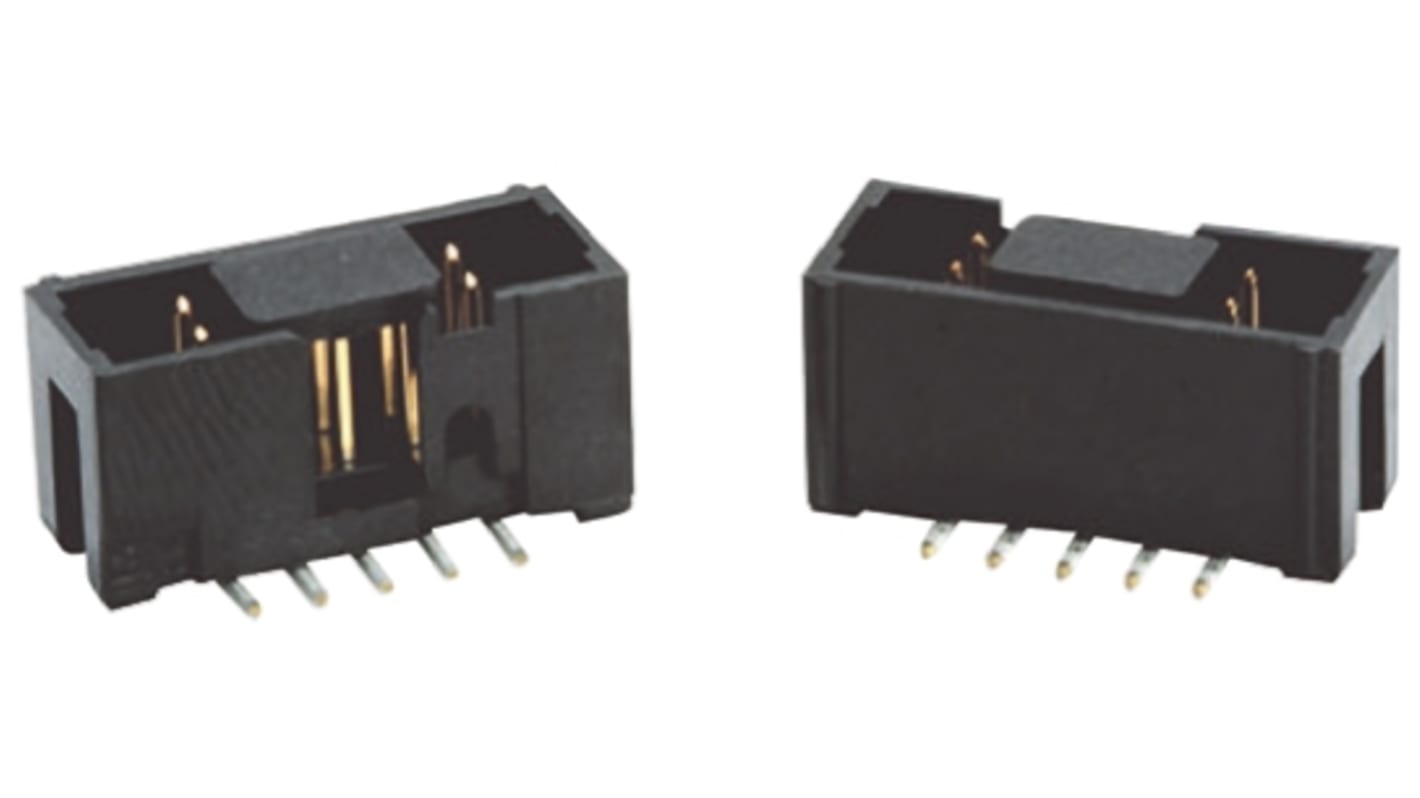

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有PCB Headers

可享批量折扣

小計（1 包，共 5 件）*

HK$248.10

訂單超過 HK$250.00 免費送貨

有庫存

510 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每包*
5 - 45	HK$49.62	HK$248.10
50 - 95	HK$47.62	HK$238.10
100 +	HK$45.66	HK$228.30

* 參考價格

RS庫存編號:: 212-828
製造零件編號:: N2540-6V0C-RB-WG
製造商:: 3M

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	3M
	Series	2500
	Product Type	PCB Header
	Pitch	2.54mm
	Current	2A
	Housing Material	Glass Filled Polyester
	Number of Contacts	40
	Number of Rows	2
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Mount Type	Surface
	Connector System	Board-to-Board, Wire-to-Board
	Contact Material	Copper Alloy
	Contact Plating	Gold
	Minimum Operating Temperature	-55°C
	Termination Type	Solder
	Row Pitch	2.54mm
	Contact Gender	Male
	Maximum Operating Temperature	105°C
	Standards/Approvals	No
	Voltage	1000 V

	選取全部
	品牌 3M
	Series 2500
	Product Type PCB Header
	Pitch 2.54mm
	Current 2A
	Housing Material Glass Filled Polyester
	Number of Contacts 40
	Number of Rows 2
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Mount Type Surface
	Connector System Board-to-Board, Wire-to-Board
	Contact Material Copper Alloy
	Contact Plating Gold
	Minimum Operating Temperature -55°C
	Termination Type Solder
	Row Pitch 2.54mm
	Contact Gender Male
	Maximum Operating Temperature 105°C
	Standards/Approvals No
	Voltage 1000 V

3M Four-Wall Header

登入下載 CAD 模型

COO (Country of Origin):: US

3M HE10 SMT sockets - N25xx Series

From 3M, this HE10 SMT sockets feature a low profile, space saving design. The exposed solder tails (on right angle version) provide ease of cleaning and reduced repair costs.

Features and Benefits

• High-temp insulation in accordance with JEDEC J-STD-020C requirements: withstands remelt temperatures and lead-free processes up to 260°C.

• Packaged as slotted rolls. The connectors feature a pick-up hood in high-temp resistant material. The roll is composed of black ESD conductive material with a 24 mm pitch.

• Contacts are visible, for inspection after soldering. The connector body does not mask the contacts, as when using straight through-hole connectors

Applications

These SMT conenctors feature center slot polarization that prevents mis-insertions and reduces insertion time. This makes them ideal for cost-effective and quick termination. These connectors are suitable for use in applications in a wide range of markets. These markets include industrial, instrumentation, medical markets, consumer, communications and data.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

Standards

UL No.: E68080, JEDEC J-STD-020C.
