製造零件編號

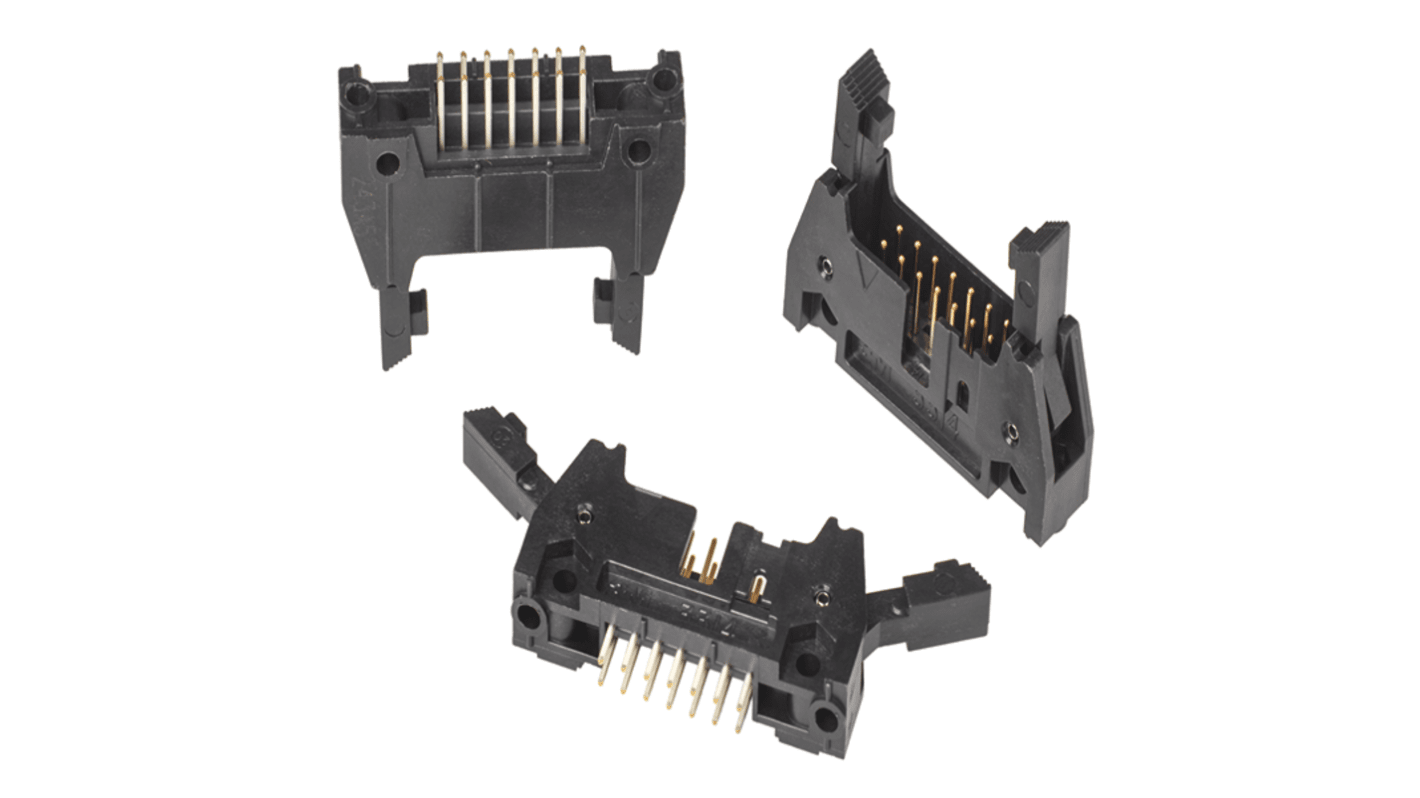

3M 3000 Series Straight Through Hole PCB Header, 14 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded

小計（1 包，共 350 件）*

HK$6,327.30

庫存資訊目前無法查詢

包	每包	每單位*
1 +	HK$6,327.30	HK$18.078

* 參考價格

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	3M
	Product Type	PCB Header
	Series	3000
	Pitch	2.54mm
	Current	1A
	Number of Contacts	14
	Number of Rows	2
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Connector System	Board-to-Board, Wire-to-Board
	Mount Type	Through Hole
	Contact Material	Copper Alloy
	Contact Plating	Nickel
	Termination Type	Solder
	Row Pitch	2.54mm
	Minimum Operating Temperature	-55°C
	Contact Gender	Male
	Maximum Operating Temperature	105°C
	Tail Pin Length	0.01in
	Standards/Approvals	No
	Mating Pin Length	6.2mm
	Voltage	25 V

	選取全部
	品牌 3M
	Product Type PCB Header
	Series 3000
	Pitch 2.54mm
	Current 1A
	Number of Contacts 14
	Number of Rows 2
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Connector System Board-to-Board, Wire-to-Board
	Mount Type Through Hole
	Contact Material Copper Alloy
	Contact Plating Nickel
	Termination Type Solder
	Row Pitch 2.54mm
	Minimum Operating Temperature -55°C
	Contact Gender Male
	Maximum Operating Temperature 105°C
	Tail Pin Length 0.01in
	Standards/Approvals No
	Mating Pin Length 6.2mm
	Voltage 25 V

豁免

The 3M Connector header is a through-hole type with 14 positions and a pitch of 2.54mm.

Contact Shape Square

Contact Finish Tin

Contact Material Copper Alloy
