JST PH Series Straight Through Hole PCB Header, 5 Contact(s), 2 mm Pitch, 1 Row, Shrouded
- RS庫存編號:
- 175-5461
- 製造零件編號:
- B5B-PH-KL (LF)(SN)
- 製造商:
- JST
可享批量折扣
小計（1 包，共 10 件）*
HK$24.30
訂單超過 HK$250.00 免費送貨
有庫存
- 1,370 件準備從其他地點送貨
- 加上 3,510 件從 2025年12月24日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每包* |
|---|---|---|
| 10 - 40 | HK$2.43 | HK$24.30 |
| 50 - 90 | HK$2.39 | HK$23.90 |
| 100 - 240 | HK$2.33 | HK$23.30 |
| 250 - 490 | HK$2.29 | HK$22.90 |
| 500 + | HK$2.19 | HK$21.90 |
* 參考價格
- RS庫存編號:
- 175-5461
- 製造零件編號:
- B5B-PH-KL (LF)(SN)
- 製造商:
- JST
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | JST | |
| Series | PH | |
| Product Type | PCB Header | |
| Pitch | 2mm | |
| Current | 2A | |
| Housing Material | Polyamide | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | Wire-to-Board | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -25°C | |
| Row Pitch | 2mm | |
| Tail Pin Length | 3.4mm | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Voltage | 800 V | |
| 選取全部 | ||
|---|---|---|
品牌 JST | ||
Series PH | ||
Product Type PCB Header | ||
Pitch 2mm | ||
Current 2A | ||
Housing Material Polyamide | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System Wire-to-Board | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Minimum Operating Temperature -25°C | ||
Row Pitch 2mm | ||
Tail Pin Length 3.4mm | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Voltage 800 V | ||
- COO (Country of Origin):
- MY

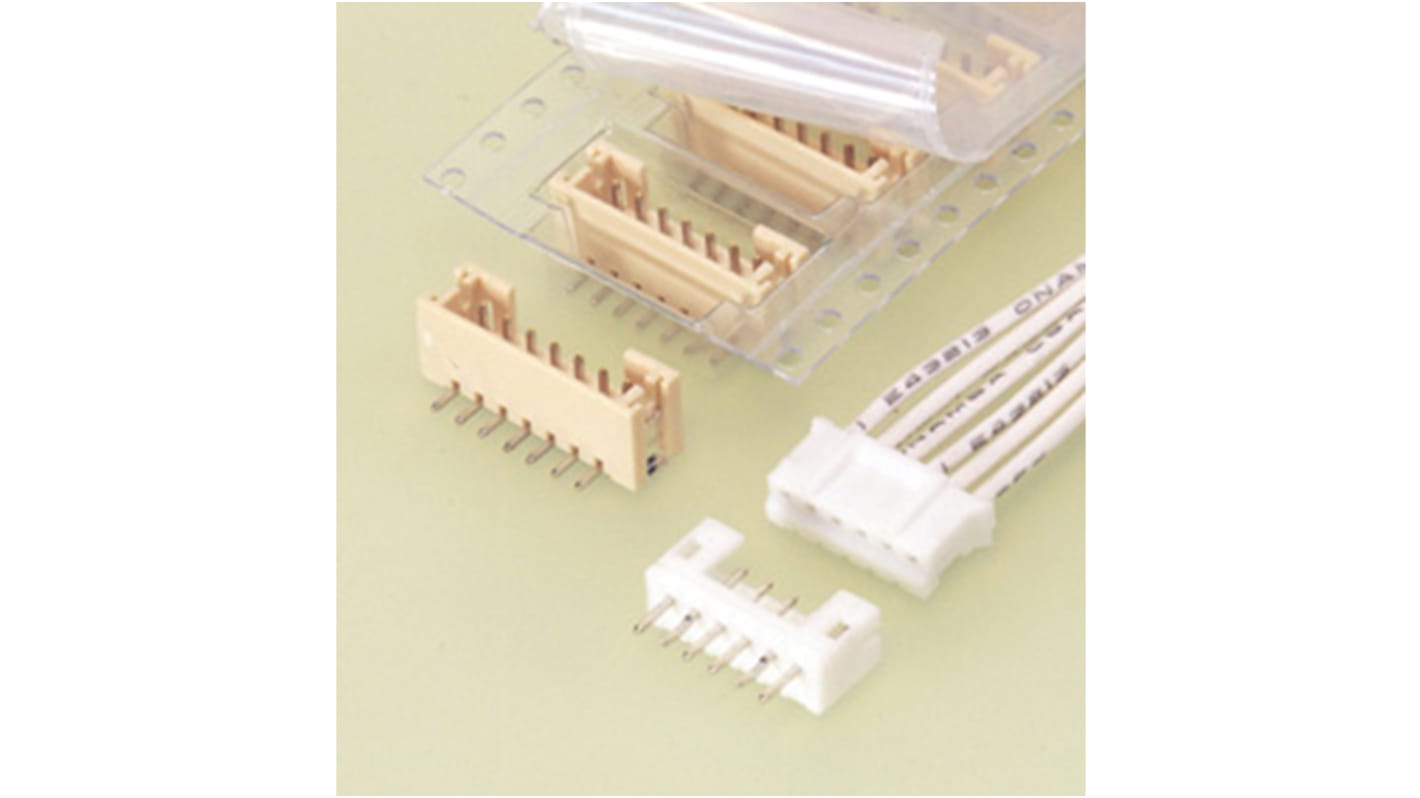

The JST B5B-PH-KL (LF)(SN) is a PH series, 5 way, single row, 2. 0 mm pitch, top entry type, low insertion force through hole shrouded header. It is designed to meet the demand for high density connection of internal wires to printed circuit boards.
Reliable contact
Fully shrouded header
Printed circuit board retention mechanism
Surface mount model (SMT)
Compact, highly reliable & low in cost
