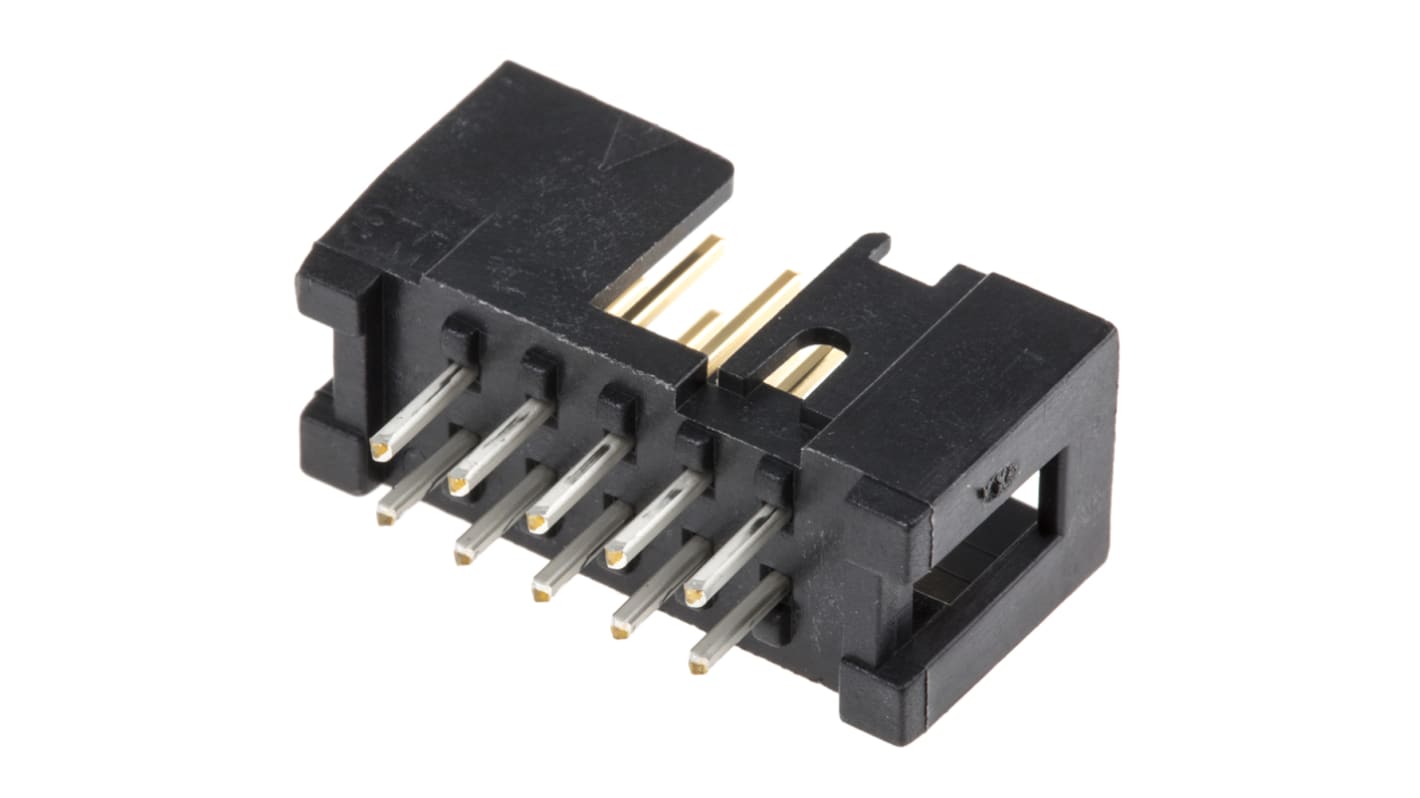

3M 2500 Series PCB Header, 10 Contacts, 2.54mm Pitch - N2510-6002RB

This PCB header is a shrouded connector designed for optimal performance in electronic applications. Featuring a 2.54mm pitch, this connector allows for flexibility in board-to-board and wire-to-board configurations, ensuring seamless integration within your circuits. With 10 contacts arranged in 2 rows, it is a reliable choice for various electrical connections requiring a robust solution.

Features & Benefits

• Shrouded design protects contacts from damage during insertion

• 2.54mm pitch connector offers compatibility with standard PCB layouts

• Through hole header ensures stable mounting and secure connections

• Solder termination connectors allow for reliable electrical continuity

• Male PCB header configuration suitable for diverse usage

Applications

• Utilised in automation control systems for reliable connectivity

• Ideal for communication equipment requiring stable connections

• Used in consumer electronics where space-efficient layouts are necessary

• Preferred in robotics for secure and efficient wiring

What type of mounting does this connector use?

This connector is designed for through hole mounting, providing stability and durability in various applications, making it suitable for high-density circuit boards.

How does the shrouded design enhance functionality?

The shrouded design aids in protecting the contacts from damage and misalignment during the mating process, ensuring reliable connections in challenging environments.

What materials are used in the construction of this connector?

The contacts are made from copper alloy, which is plated with gold, ensuring excellent conductivity and resistance to corrosion, essential for maintaining long-term performance.

What is the maximum voltage rating for safe operation?

The connector is rated for a maximum voltage of 1000V, suitable for applications where high-voltage integrity is paramount.

How does the current rating affect its application in electronic systems?

With a current rating of 1.75A, it is well-suited for various electronic components that require efficient power distribution without overheating.

單位	每單位
1 - 24	HK$19.90
25 - 74	HK$19.30
75 - 199	HK$18.70
200 - 399	HK$18.30
400 +	HK$17.90

選取全部	屬性	值
	品牌	3M
	Series	2500
	Product Type	PCB Header
	Current	2A
	Pitch	2.54mm
	Number of Contacts	10
	Number of Rows	2
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Mount Type	Through Hole
	Connector System	Board-to-Board, Wire-to-Board
	Contact Material	Copper Alloy
	Contact Plating	Gold
	Termination Type	Solder
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	105°C
	Contact Gender	Male
	Standards/Approvals	No
	Voltage	1000 V
	Distrelec Product Id	143-12-340

	選取全部
	品牌 3M
	Series 2500
	Product Type PCB Header
	Current 2A
	Pitch 2.54mm
	Number of Contacts 10
	Number of Rows 2
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Mount Type Through Hole
	Connector System Board-to-Board, Wire-to-Board
	Contact Material Copper Alloy
	Contact Plating Gold
	Termination Type Solder
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 105°C
	Contact Gender Male
	Standards/Approvals No
	Voltage 1000 V
	Distrelec Product Id 143-12-340

3M 2500 Series Straight Through Hole PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded
