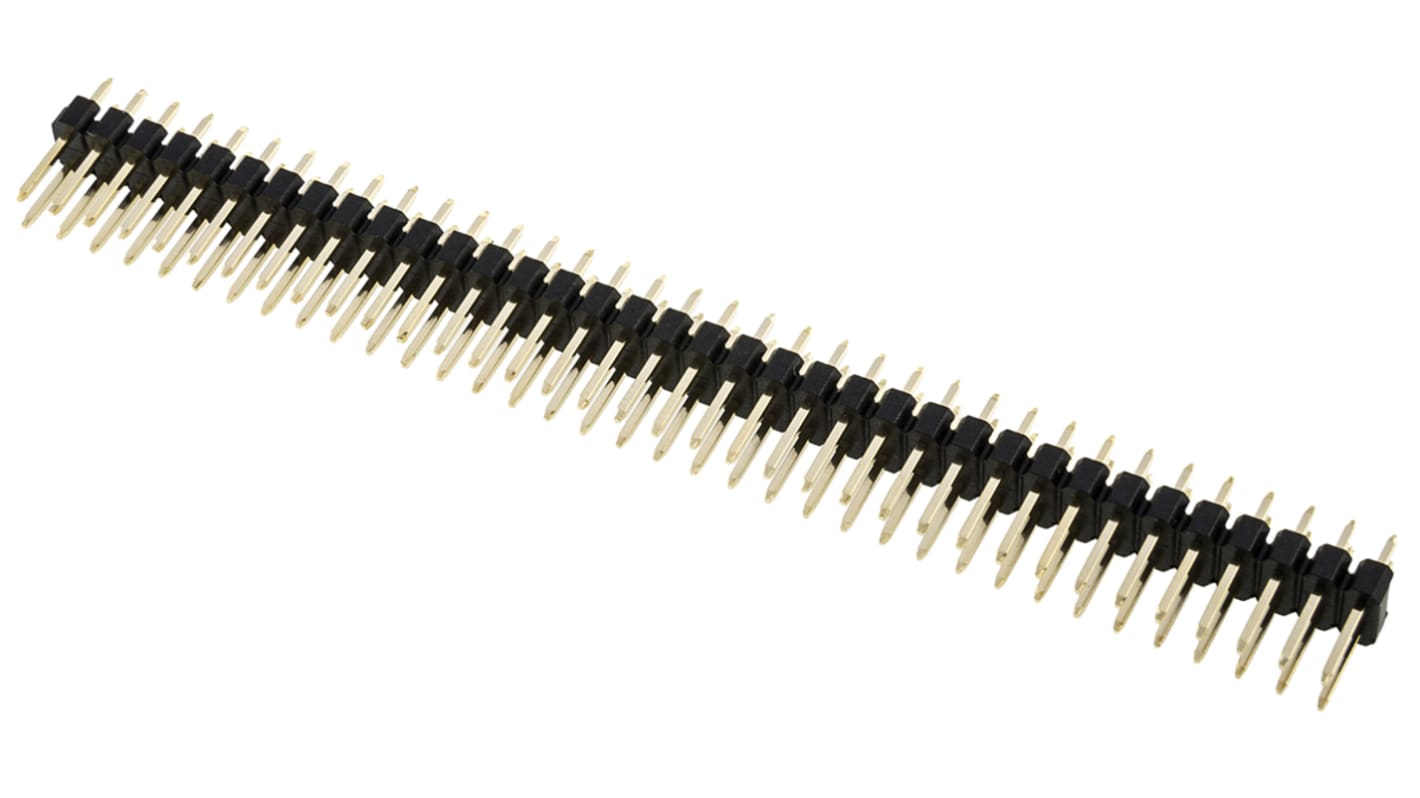

HARWIN M20, 2.54mm Pitch, 72 Way, 2 Row, Straight Pin Header, Through Hole
- RS庫存編號:
- 547-3172
- 製造零件編號:
- M20-9983645
- 製造商:
- HARWIN
可享批量折扣
單價 个
HK$20.90
241 現貨庫存,可於3工作日發貨。
單位 | 每單位 |
1 - 24 | HK$20.90 |
25 - 49 | HK$20.60 |
50 + | HK$20.20 |
- RS庫存編號:
- 547-3172
- 製造零件編號:
- M20-9983645
- 製造商:
- HARWIN
- COO (Country of Origin):
- TW
Harwin M20 2.54mm PCB Pin Header Connectors
M20 series PCB through hole and SMT mount header connectors with a 2.54mm pitch. These M20 2.54 mm PCB headers are available with dual and single row, vertical and right angle configurations making them a versatile solution for various applications. The housings of these M20 2.54 mm PCB pin header connectors are also supplied with different mating pin lengths: M20-975xxx, M20-976xxx, M20-977xxx = 5.8 mm pin height
M20-995xxx, M20-996xxx, M20-998xxx, M20-999xxx = 6.1 mm pin height
M20-997xxx = 8.5 mm pin height
The housings of both PCB through hole and SMT headers are made from high temperature thermoplastic enabling them to withstand the same reflow soldering process
The design of the housings incorporates castellations enabling them to be cut to size where required, care should be taken with the tails when doing this
These M20 2.54 mm PCB pin header connectors mate with the M20 series PCB sockets, socket housings and jumpers.
M20-995xxx, M20-996xxx, M20-998xxx, M20-999xxx = 6.1 mm pin height
M20-997xxx = 8.5 mm pin height
The housings of both PCB through hole and SMT headers are made from high temperature thermoplastic enabling them to withstand the same reflow soldering process
The design of the housings incorporates castellations enabling them to be cut to size where required, care should be taken with the tails when doing this
These M20 2.54 mm PCB pin header connectors mate with the M20 series PCB sockets, socket housings and jumpers.
Features and Benefits
Multiple configuration options and pin mating lengths for design flexibility
Thermoplastic housings can withstand reflow soldering process
Can be cut to smaller sizes
Thermoplastic housings can withstand reflow soldering process
Can be cut to smaller sizes
Applications
These M20 2.54 mm PCB headers can be used in a wide range of applications and are established as standard connectors in embedded PCs, motherboards and large electronics systems
Applications include consumer electronics, communications, drives and controls, industrial monitoring and personal computing
Applications include consumer electronics, communications, drives and controls, industrial monitoring and personal computing
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Attribute | Value |
---|---|
Series | M20 |
Pitch | 2.54mm |
Number of Contacts | 72 |
Number of Rows | 2 |
Body Orientation | Straight |
Shrouded/Unshrouded | Unshrouded |
Mating Pin Length | 6.1mm |
Connector System | Board to Board, Wire to Board |
Mounting Type | Through Hole |
Tail Pin Length | 3mm |
Termination Method | Solder |
Type | Board to Board, Wire to Board |
Contact Material | Brass |
Contact Plating | Gold |
Voltage Rating | 750 V ac/dc |
Current Rating | 3A |
