可享批量折扣
小計（1 件）*
HK$210.60
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 - 9 | HK$210.60 |
| 10 - 49 | HK$203.80 |
| 50 + | HK$167.70 |
* 參考價格
- RS庫存編號:
- 504-357
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Secondary Voltage | 24 V ac | |
| Primary Voltage | 2 x 115 V ac | |
| Power | 12VA | |
| Depth | 33mm | |
| Weight | 180g | |
| Maximum Operating Frequency | 60Hz | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Secondary Voltage 24 V ac | ||
Primary Voltage 2 x 115 V ac | ||
Power 12VA | ||
Depth 33mm | ||
Weight 180g | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- PL

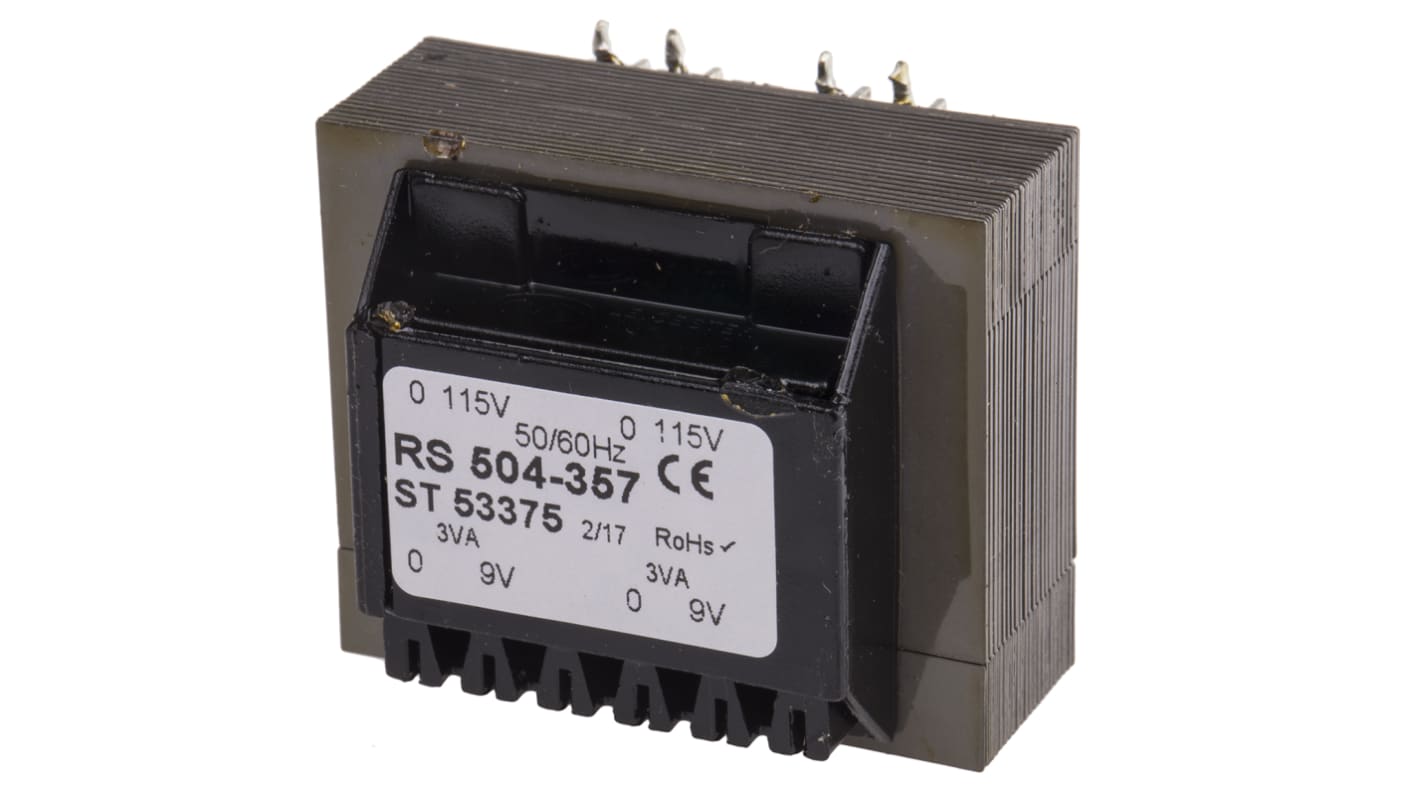

PCB Mount 115/230Vac Transformer
Twin 115Va.c. 50/60Hz primary windings which may be connected in series for 230V or parallel for 115V operation
Fully shrouded bobbins
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742
Open Frame - Laminated
PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Double section metric bobbin construction
Full varnish impregnation
Standards
BS3535; EN 60 742
