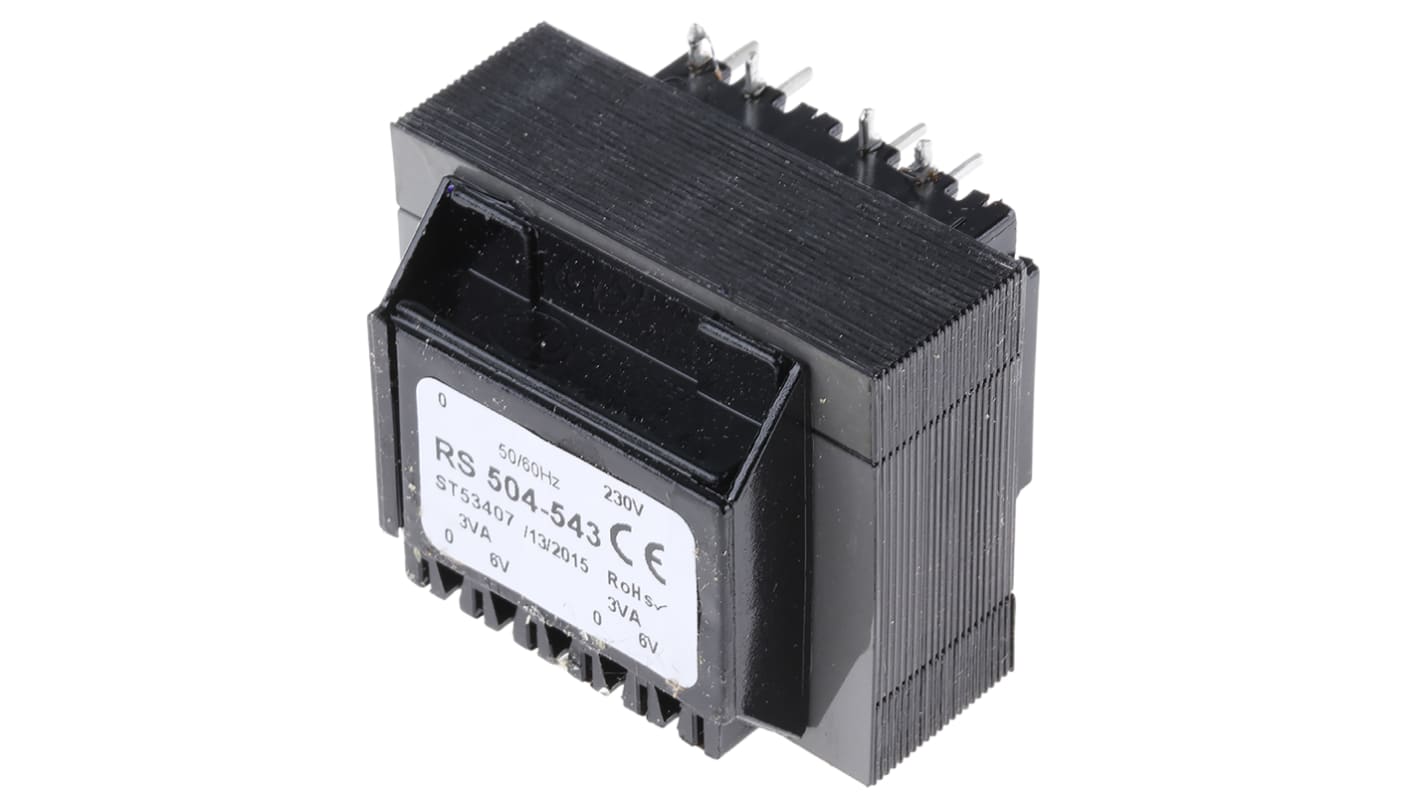

RS PRO 6 V ac 2 Output Through Hole PCB Transformer, RoHS, UKCA, CE 6 VA
- RS庫存編號:
- 504-543
- Distrelec 貨號:
- 304-04-320
- 製造商:
- RS PRO
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 504-543
- Distrelec 貨號:
- 304-04-320
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | PCB Transformer | |
| Secondary Voltage | 6 V ac | |
| Primary Voltage | 230 V ac | |
| Length | 43mm | |
| Depth | 33mm | |
| Power | 6VA | |
| Weight | 180g | |
| Mount Type | Through Hole | |
| Winding Type | Single Primary, Dual Secondary | |
| Isolation Voltage | 4kVrms | |
| Efficiency | 77% | |
| Maximum Operating Temperature | 130°C | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Standards/Approvals | RoHS, UKCA, CE | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type PCB Transformer | ||
Secondary Voltage 6 V ac | ||
Primary Voltage 230 V ac | ||
Length 43mm | ||
Depth 33mm | ||
Power 6VA | ||
Weight 180g | ||
Mount Type Through Hole | ||
Winding Type Single Primary, Dual Secondary | ||
Isolation Voltage 4kVrms | ||
Efficiency 77% | ||
Maximum Operating Temperature 130°C | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Standards/Approvals RoHS, UKCA, CE | ||
- COO (Country of Origin):
- PL
230 Vac Primary Transformers
Fully shrouded bobbins
Extra pins for secure board mounting
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742
Open Frame - Laminated
PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Double section metric bobbin construction
Full varnish impregnation
Standards
BS3535; EN 60 742
