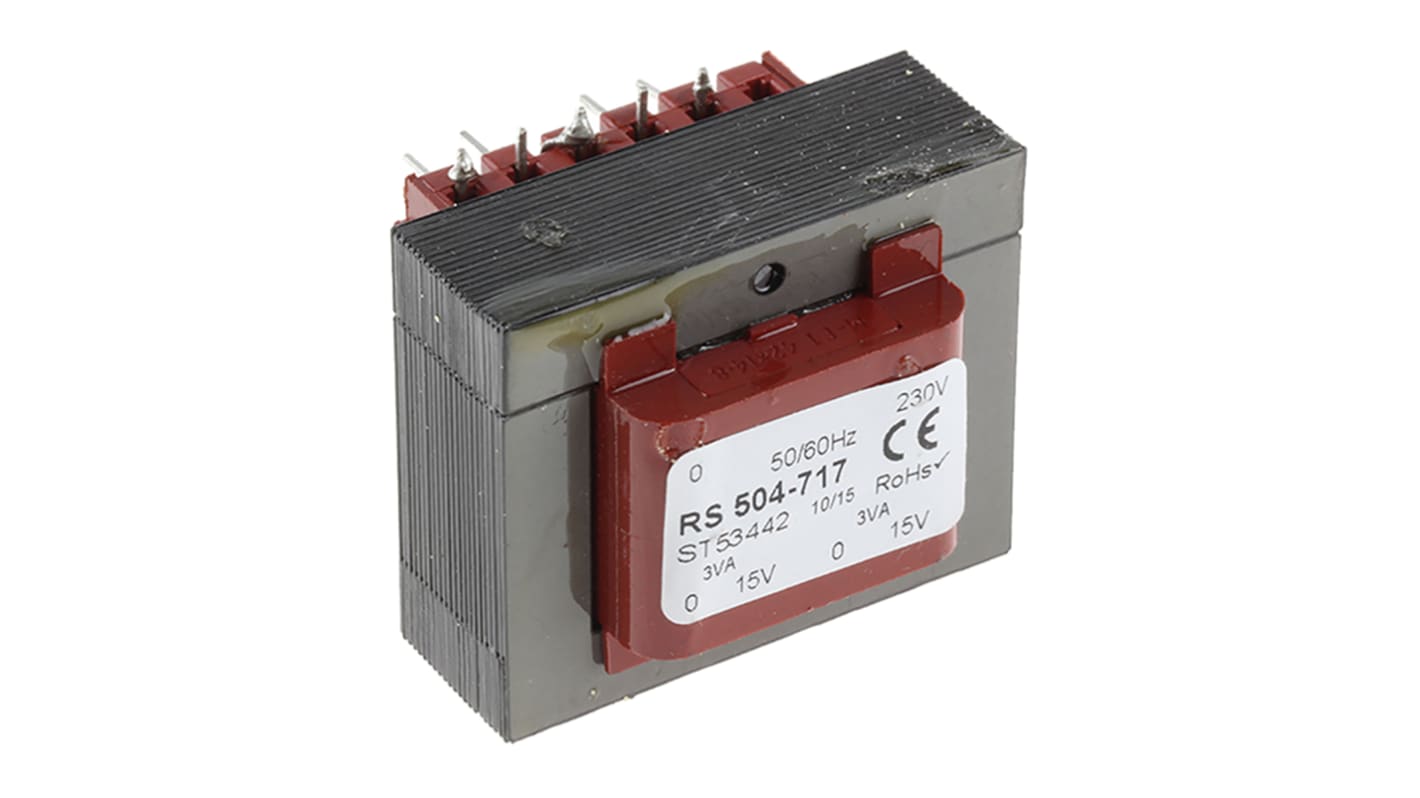

RS PRO 6 → 15 V ac 2 Output Through Hole PCB Transformer, CE, IEC/BS/EN 61558-1, RoHS, IEC/BS/EN 61558-2-6,
- RS庫存編號:
- 504-717
- Distrelec 貨號:
- 304-03-130
- 製造商:
- RS PRO
享受批量購買折扣
額外添加10件可節省HK$67.00
查看批量定價選項小計（1 件）*
HK$222.30
訂單超過 HK$250.00 免費送貨
有庫存
- 48 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 節省 |
|---|---|---|
| 1 - 9 | HK$222.30 | - |
| 10 - 24 | HK$215.60 | HK$67.00 |
| 25 - 49 | HK$209.00 | HK$332.50 |
| 50 + | HK$204.50 | HK$890.00 |
* 參考價格
- RS庫存編號:
- 504-717
- Distrelec 貨號:
- 304-03-130
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | PCB Transformer | |
| Secondary Voltage | 6 → 15 V ac | |
| Primary Voltage | 230 V ac | |
| Number of Outputs | 2 | |
| Length | 43mm | |
| Width | 54mm | |
| Depth | 30.42mm | |
| Power | 20VA | |
| Weight | 400g | |
| Mount Type | Through Hole | |
| Isolation Voltage | 4kVrms | |
| Maximum Operating Temperature | 130°C | |
| Minimum Operating Frequency | 50Hz | |
| Standards/Approvals | CE, IEC/BS/EN 61558-1, RoHS, IEC/BS/EN 61558-2-6, AS/NZS 61558.2.6, AS/NZS 61558.1, UL94-V0 | |
| Maximum Operating Frequency | 60Hz | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type PCB Transformer | ||
Secondary Voltage 6 → 15 V ac | ||
Primary Voltage 230 V ac | ||
Number of Outputs 2 | ||
Length 43mm | ||
Width 54mm | ||
Depth 30.42mm | ||
Power 20VA | ||
Weight 400g | ||
Mount Type Through Hole | ||
Isolation Voltage 4kVrms | ||
Maximum Operating Temperature 130°C | ||
Minimum Operating Frequency 50Hz | ||
Standards/Approvals CE, IEC/BS/EN 61558-1, RoHS, IEC/BS/EN 61558-2-6, AS/NZS 61558.2.6, AS/NZS 61558.1, UL94-V0 | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- PL
PCB Mounting, Flame Retardant Transformer with Thermal Fuse
Thermal fuse in primary providing overload and short circuit protection
Flame retardant materials to UL94-V0
Fully shrouded windings
Extra pins for secure board mounting
Designed and tested in accordance with EN 61558 (EN 60742) EN 60950
Open Frame - Laminated
PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Double section metric bobbin construction
Full varnish impregnation
Standards
EN 61558 (EN 60742); EN 60950
