Block 24V ac 2 Output Through Hole PCB Transformer, 18VA
RS庫存編號:
201-7296
製造零件編號:
FL 18/24
製造商:
Block

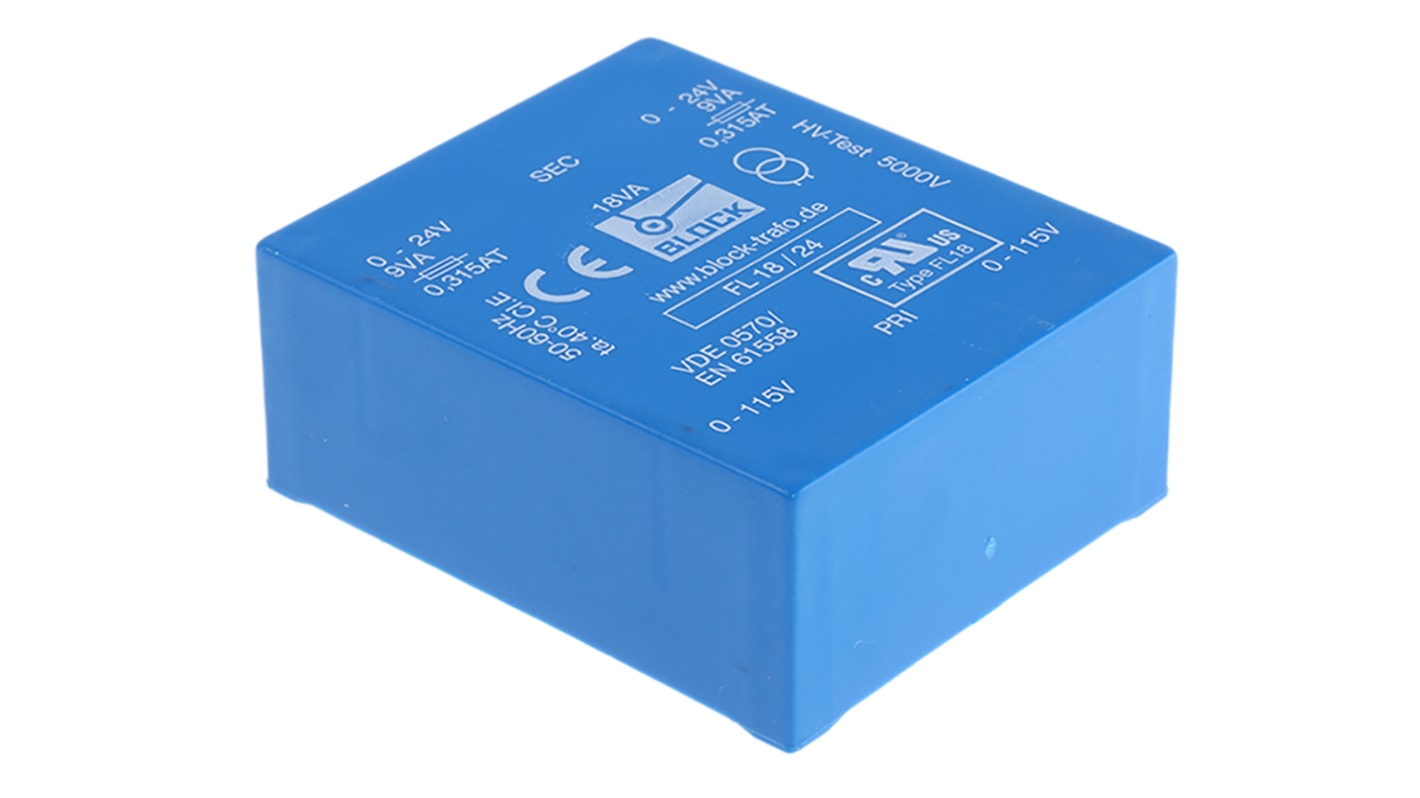

此圖片僅供參考,請參閲產品詳細資訊及規格
查看所有PCB Transformers
可享批量折扣
Price 个**
HK$141.40
Add to Basket
單位
選擇或輸入數量
添加到購物車
48 現貨庫存,可於4工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$850.00 即可享受 免費 送貨服務
即時庫存查詢
添加到收藏夾
批量购买价格选项
單位
每單位
1 - 4
HK$141.40
5 - 9
HK$138.30
10 +
HK$135.30
** 參考價格
RS庫存編號:
201-7296
製造零件編號:
FL 18/24
製造商:
Block
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
規格
Low Profile Transformer FL Range Data Sheet
FL 18/24 Low Profile Transformer Data Sheet
Group 6
3D
登入下載 CAD 模型
相容
符合聲明
COO (Country of Origin):
DE
PCB Mounting Low Profile 115 / 230Vac Primary
Twin 115Va.c. 50 to 60Hz primary windings for series or parallel connection
Twin secondary windings for series or parallel connection
Low profile compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure board mounting
Standard: EN60742, VDE 0551, IEC 61558
Note
Transformer with 2 x 24V outputs are not VDE, SEV approved.
Standards
VD 61 558
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Attribute
Value
Secondary Voltage Rating
24V ac
Power Rating
18VA
Primary Voltage Rating
115V ac, 230V ac
Number of Outputs
2
Length
68mm
Width
27.6mm
Depth
57mm
Dimensions
68 x 27.6 x 57mm
Weight
375g
Mounting Type
Through Hole
Maximum Temperature
+40°C
Minimum Operating Frequency
50Hz
Maximum Operating Frequency
60Hz
