Block 15 V ac 2 Output Through Hole PCB Transformer, VDE, UL 7.5 VA
- RS庫存編號:
- 201-8564
- 製造零件編號:
- PT 7.5/2/15
- 製造商:
- Block

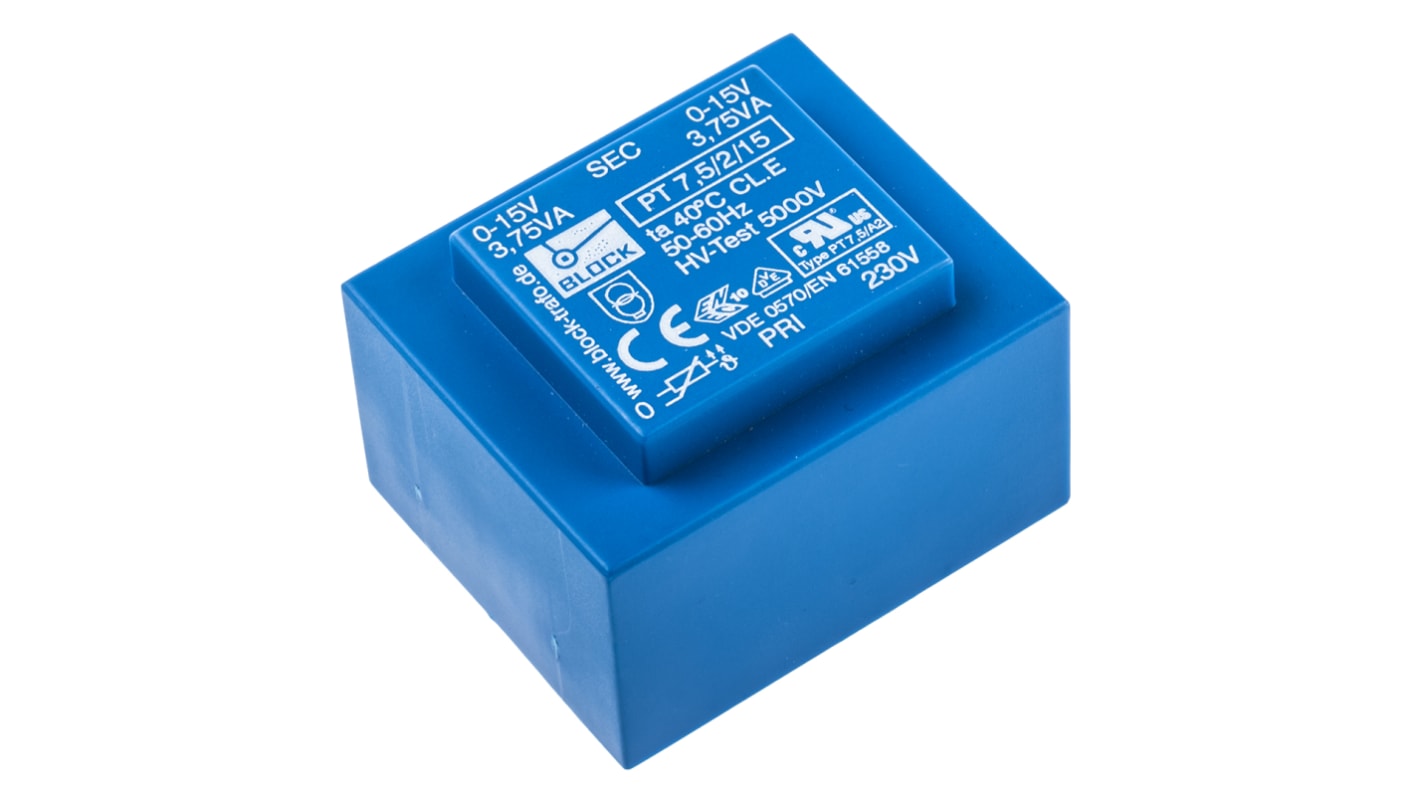

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 件）*
HK$211.40
訂單超過 HK$250.00 免費送貨
有庫存
- 13 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 8 | HK$211.40 |
| 9 - 17 | HK$206.70 |
| 18 + | HK$202.30 |
* 參考價格
- RS庫存編號:
- 201-8564
- 製造零件編號:
- PT 7.5/2/15
- 製造商:
- Block
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Block | |
| Secondary Voltage | 15 V ac | |
| Product Type | PCB Transformer | |
| Primary Voltage | 230 V ac | |
| Number of Outputs | 2 | |
| Length | 51mm | |
| Width | 36 mm | |
| Depth | 43mm | |
| Power | 7.5VA | |
| Weight | 280g | |
| Mount Type | Through Hole | |
| PCB Transformer Current | 0.25A | |
| Winding Type | Single Primary, Dual Secondary | |
| Maximum Operating Temperature | 40°C | |
| Efficiency | 65% | |
| Minimum Operating Frequency | 50Hz | |
| Standards/Approvals | VDE, UL | |
| Maximum Operating Frequency | 60Hz | |
| 選取全部 | ||
|---|---|---|
品牌 Block | ||
Secondary Voltage 15 V ac | ||
Product Type PCB Transformer | ||
Primary Voltage 230 V ac | ||
Number of Outputs 2 | ||
Length 51mm | ||
Width 36 mm | ||
Depth 43mm | ||
Power 7.5VA | ||
Weight 280g | ||
Mount Type Through Hole | ||
PCB Transformer Current 0.25A | ||
Winding Type Single Primary, Dual Secondary | ||
Maximum Operating Temperature 40°C | ||
Efficiency 65% | ||
Minimum Operating Frequency 50Hz | ||
Standards/Approvals VDE, UL | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- DE
Transformers PCB Mount, Short Circuit Proof, VB & PT Series
230Va.c. 50 to 60Hz primary
Single or twin secondary windings for series or parallel connection (For conformance reasons,0.35 to 3.2VA transformers with 2 x 15 and 2 x 18V outputs and all transformers with 2x 24V outputs should not have their secondaries connected in series as this means they will not meet the VDE 0550 approval)
VB series (0.35 - 3.2VA) are inherently short circuit proof
PT series (4.5 - 22VA) are protected by internal PTC device
Compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
High efficiency and low temperature rise
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure boarding mounting on 4.5VA and above
Approvals
ENEC 10; UL recognised component
Standards
EN 61558
