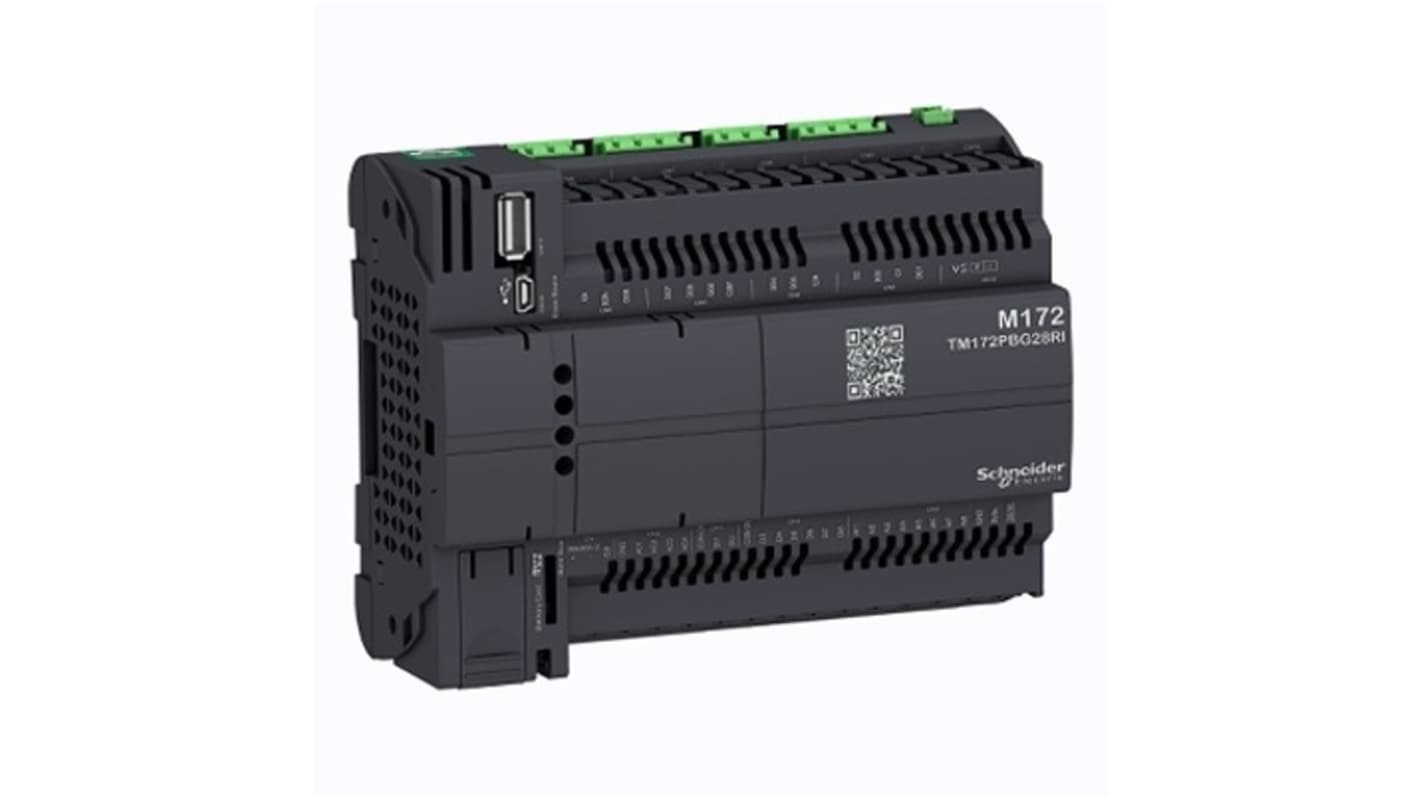

Schneider Electric Modicon M172 Series Controller, Relay Output, 16-Input, Digital, Analogue Input
- RS庫存編號:
- 339-796
- 製造零件編號:
- TM172PBG28RI
- 製造商:
- Schneider Electric
小計（1 件）*
HK$4,227.50
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 + | HK$4,227.50 |
* 參考價格
- RS庫存編號:
- 339-796
- 製造零件編號:
- TM172PBG28RI
- 製造商:
- Schneider Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schneider Electric | |
| Series | Modicon M172 | |
| Product Type | Controller | |
| Number of Inputs | 16 | |
| Output Type | Relay | |
| Input Type | Digital, Analogue | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Depth | 60.5mm | |
| Standards/Approvals | CAN/CSA-E60730-1 CSA E60730-2-9 EN 60068-2-27 EN 60068-2-6 Fc EN 60730-1 EN 60730-2-9 UL 60730-1 UL 60730-2-9 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-11 UL94 (material V0) | |
| Width | 144mm | |
| Display Included | No | |
| Output Current | 20mA | |
| Supply Voltage | 24V | |
| Mount Type | Panel, DIN Rail | |
| 選取全部 | ||
|---|---|---|
品牌 Schneider Electric | ||
Series Modicon M172 | ||
Product Type Controller | ||
Number of Inputs 16 | ||
Output Type Relay | ||
Input Type Digital, Analogue | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Depth 60.5mm | ||
Standards/Approvals CAN/CSA-E60730-1 CSA E60730-2-9 EN 60068-2-27 EN 60068-2-6 Fc EN 60730-1 EN 60730-2-9 UL 60730-1 UL 60730-2-9 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-11 UL94 (material V0) | ||
Width 144mm | ||
Display Included No | ||
Output Current 20mA | ||
Supply Voltage 24V | ||
Mount Type Panel, DIN Rail | ||
豁免
- COO (Country of Origin):
- IT
The Schneider Electric Modicon M172 Performance Display is a programmable controller specifically designed for HVAC control applications. Featuring a built-in backlit LCD display, this controller integrates advanced communication capabilities with robust input/output configurations. It provides precise control and monitoring for optimized performance in HVAC systems.
28 Input output
Overvoltage category II
IP20 protection
ROHS compliant
