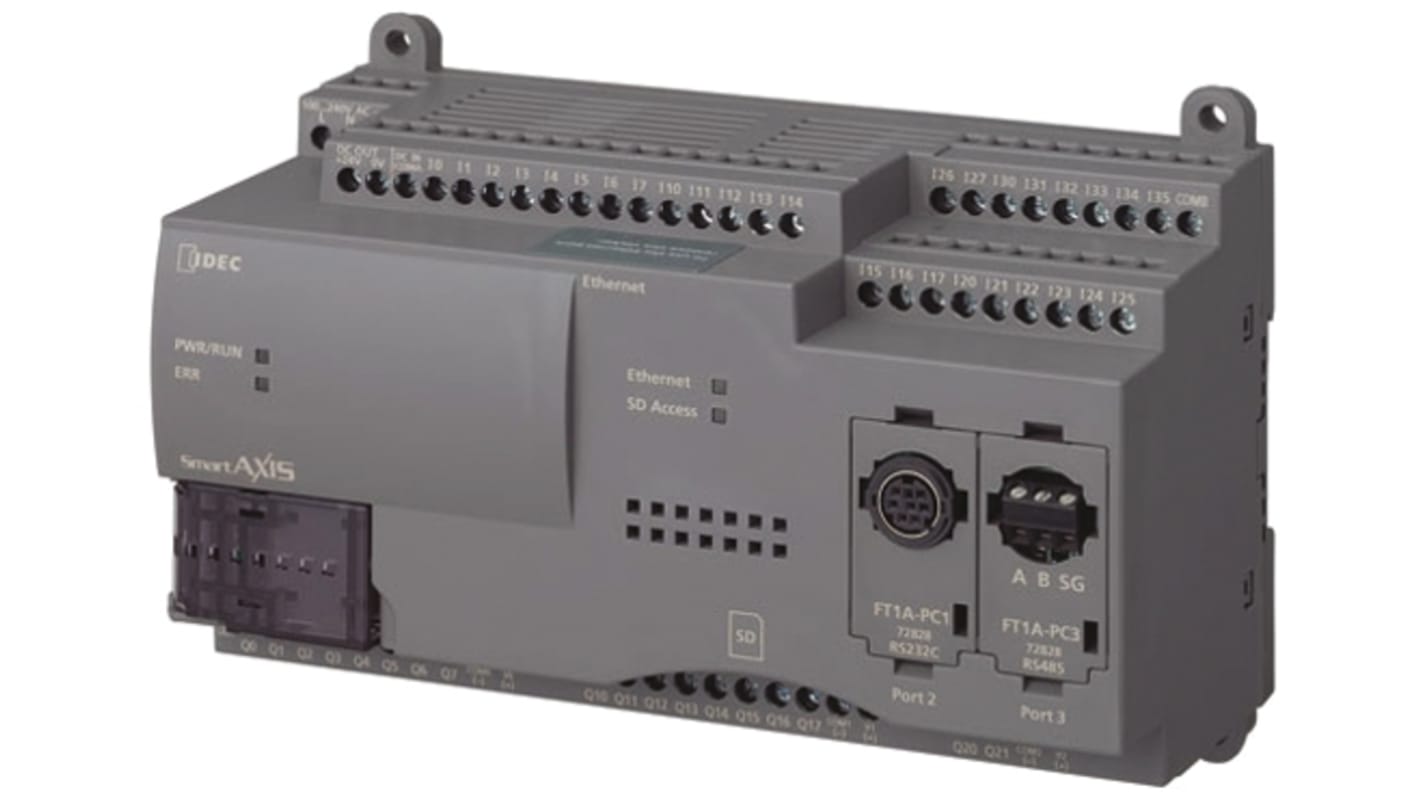

SmartAXIS Lite PLC CPU provides the user with a comprehensive variety of customisation options allowing for installation into a large range of applications. Supplied with an embedded battery backup which can offer up to 30 days power and self diagnostic functions
Features of the SmartAXIS Lite CPU Compatible with IDEC's WindLDR programming software Supports Modbus TCP and RTU Mini USB type B port for programming Embedded Ethernet port 100kHz high-speed outputs Backlit LCD option available Embedded 8-pt analog inputs for 0-10V DC, 10-bit & DC power Integrated 4x 100kHz high-speed counters Lithium backup battery which can supply for up to 30 days (typical) at 25°C once fully charged Self-Diagnostic function provides the user with indications for "Keep Data", "Timer/Counter preset value change" & System/Memory Card transfer error" plus many more Equipped with 2 expansion communication ports for optional expansion Optional RS232C/RS485 adaptor available SD Card slot for data logging and program storage for ease of installation & data export
