Same Sky TBP01P1-508 Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch
- RS庫存編號:
- 259-6768
- 製造零件編號:
- TBP01P1-508-02BE
- 製造商:
- Same Sky

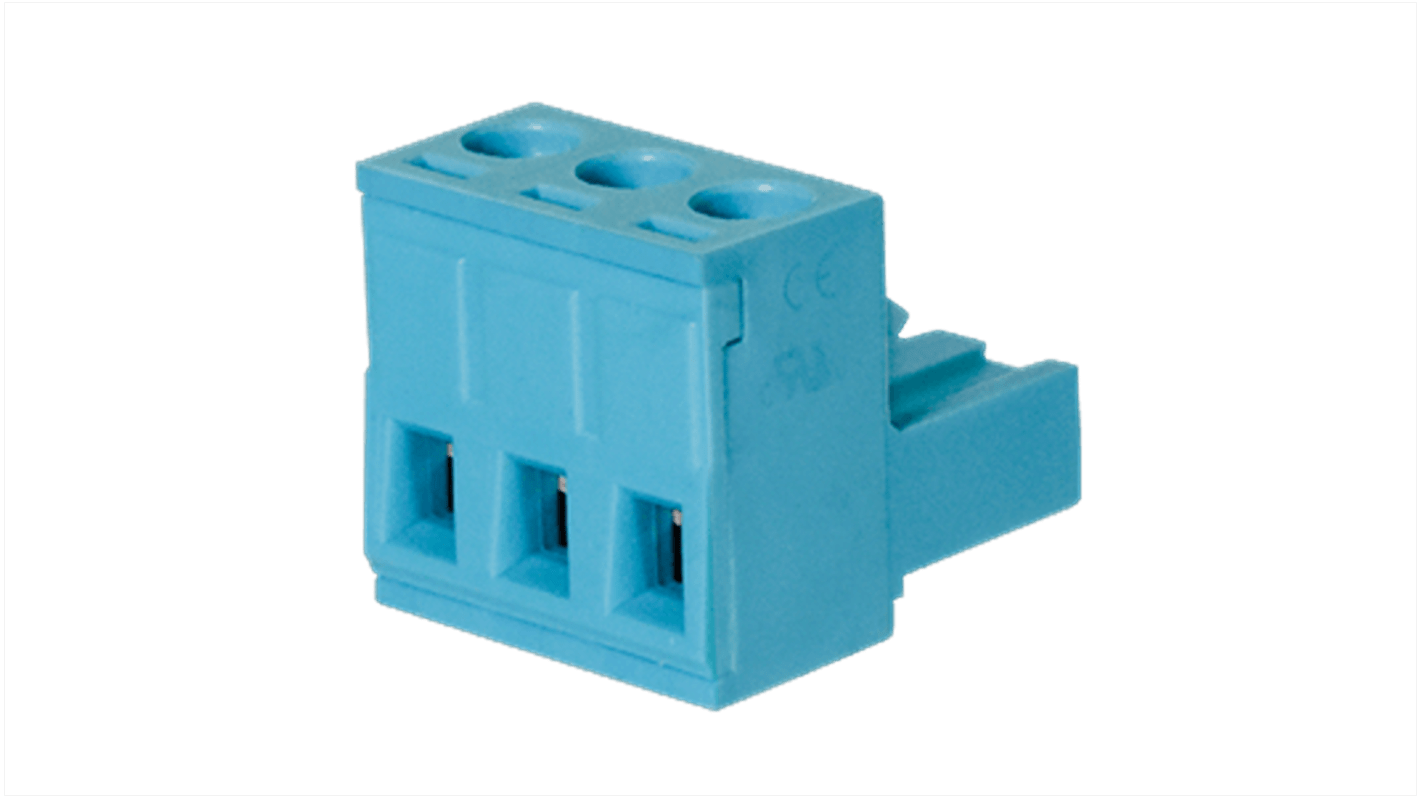

此圖片僅供參考，請參閲產品詳細資訊及規格
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 259-6768
- 製造零件編號:
- TBP01P1-508-02BE
- 製造商:
- Same Sky
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Same Sky | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 2 | |
| Pitch | 5.08mm | |
| Current | 16A | |
| Housing Material | Polyamide 66 | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 180° | |
| Colour | Blue | |
| Wire Connection Method | Screw | |
| Voltage | 300V | |
| Width | 15mm | |
| Standards/Approvals | CE, EN 60998-1:2004, EN 60998-2-1:2004, RoHS, UL 1059 | |
| Series | TBP01P1-508 | |
| Depth | 18mm | |
| Length | 10.16mm | |
| 選取全部 | ||
|---|---|---|
品牌 Same Sky | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 2 | ||
Pitch 5.08mm | ||
Current 16A | ||
Housing Material Polyamide 66 | ||
Connector Gender Female | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 180° | ||
Colour Blue | ||
Wire Connection Method Screw | ||
Voltage 300V | ||
Width 15mm | ||
Standards/Approvals CE, EN 60998-1:2004, EN 60998-2-1:2004, RoHS, UL 1059 | ||
Series TBP01P1-508 | ||
Depth 18mm | ||
Length 10.16mm | ||
- COO (Country of Origin):
- CN
The CUI devices provides a PCB Terminal blocks having a pitch of 5.08 mm with a rated voltage of 300 V having a slotted screw product. It consist of a horizontal body orientation and the number of poles are 2.
Operating temperature of -40°C to 105°C
Contact resistance is 20 mΩ
