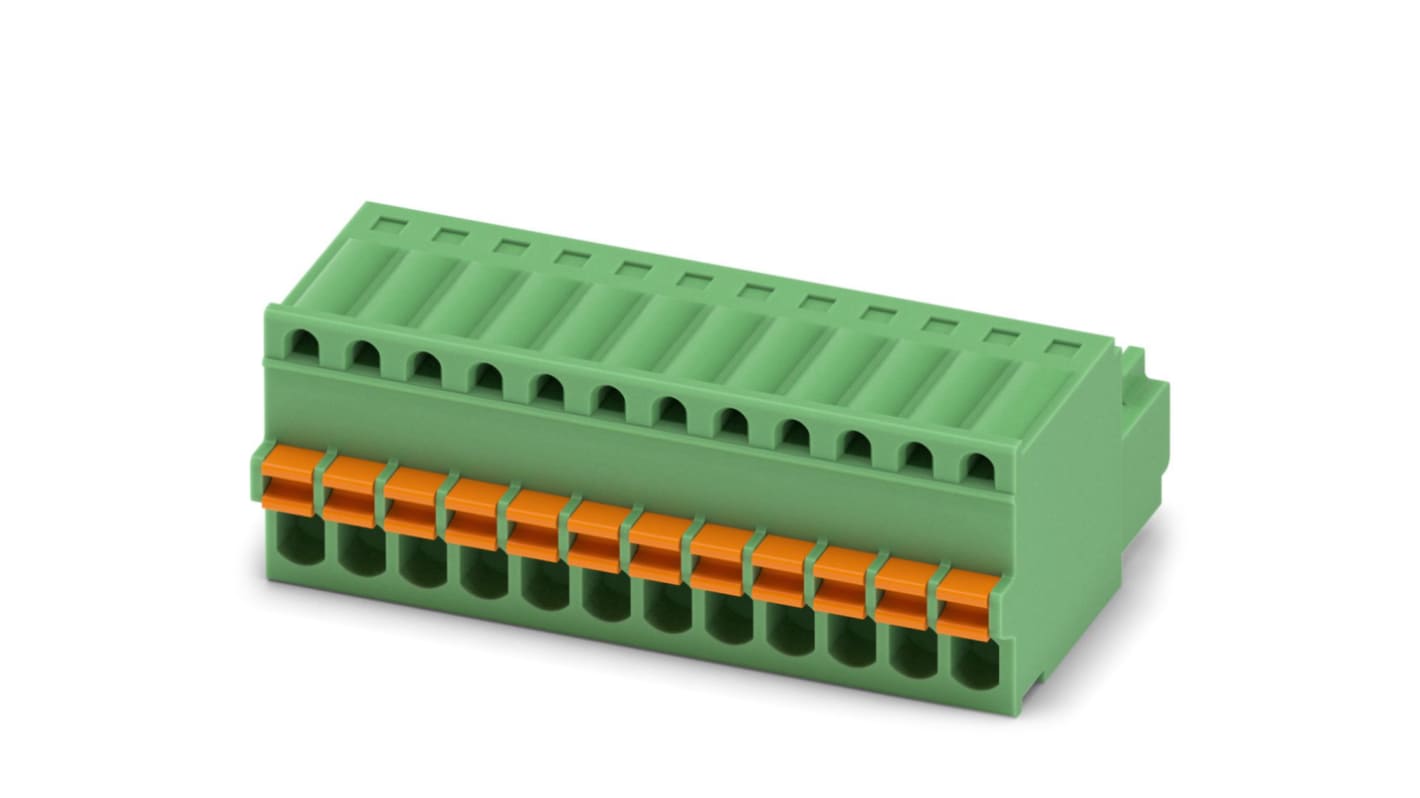

Phoenix Contact FC-MC 0.5/12-ST-2.5 AU Series Pluggable Terminal Block, 12-Contact, 2.5 mm Pitch, 1 Row, 1923432
- RS庫存編號:
- 804-5222
- 製造零件編號:
- 1923432
- 製造商:
- Phoenix Contact
享受批量購買折扣
額外添加1250件可節省HK$4,735.00
查看批量定價選項小計（1 包，共 50 件）*
HK$7,578.60
訂單超過 HK$250.00 免費送貨
製造商存貨
- 準備從 2027年1月18日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每包* | 節省 |
|---|---|---|---|
| 50 - 1200 | HK$151.572 | HK$7,578.60 | - |
| 1250 - 3700 | HK$147.784 | HK$7,389.20 | HK$4,735.00 |
| 3750 - 9950 | HK$144.09 | HK$7,204.50 | HK$28,057.50 |
| 10000 - 19950 | HK$140.494 | HK$7,024.70 | HK$110,780.00 |
| 20000 + | HK$136.98 | HK$6,849.00 | HK$291,840.00 |
* 參考價格
- RS庫存編號:
- 804-5222
- 製造零件編號:
- 1923432
- 製造商:
- Phoenix Contact
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Phoenix Contact | |
| Number of Contacts | 12 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 2.5mm | |
| Current | 4A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.14mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 0.5mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 20AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Spring Cage | |
| Voltage | 100V | |
| Series | FC-MC 0.5/12-ST-2.5 AU | |
| Length | 27.5mm | |
| Width | 30.6mm | |
| Standards/Approvals | No | |
| Depth | 11.75mm | |
| 選取全部 | ||
|---|---|---|
品牌 Phoenix Contact | ||
Number of Contacts 12 | ||
Product Type Pluggable Terminal Block | ||
Pitch 2.5mm | ||
Current 4A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.14mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 0.5mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 20AWG | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Spring Cage | ||
Voltage 100V | ||
Series FC-MC 0.5/12-ST-2.5 AU | ||
Length 27.5mm | ||
Width 30.6mm | ||
Standards/Approvals No | ||
Depth 11.75mm | ||
- COO (Country of Origin):
- DE
FK-MC PCB Connectors - Phoenix Contact
The FK-MC series from Phoenix Contact are MICRO COMBICON plug-in PCB connectors. These connectors are made user-friendly with no tools needed for installation as it is simply a push in technology, along with a defined contact force the ensures the connection remains stable over the long term. Not to mention, these PCB connectors are easily tested with a 1mm diameter test connector that simply plugs in, allowing for rapid testing. The FK-MC series are rated for 4 A with a voltage of 160 V and boasts a 2.5mm pitch for versatile use.
The contact material is the FK-MC connectors are Cu (Copper) alloy and they're built in a green polyamide housing. Colour coded actuation levers can be found on the front and allow you to form a strong connection without the need for any specialist tools.
Features and benefits:
Applications:
The MICRO COMBICON 0.5 series can be used typically in applications such as, but not limited to, control wiring, instrumentation, control and measurement and industrial electronics.
