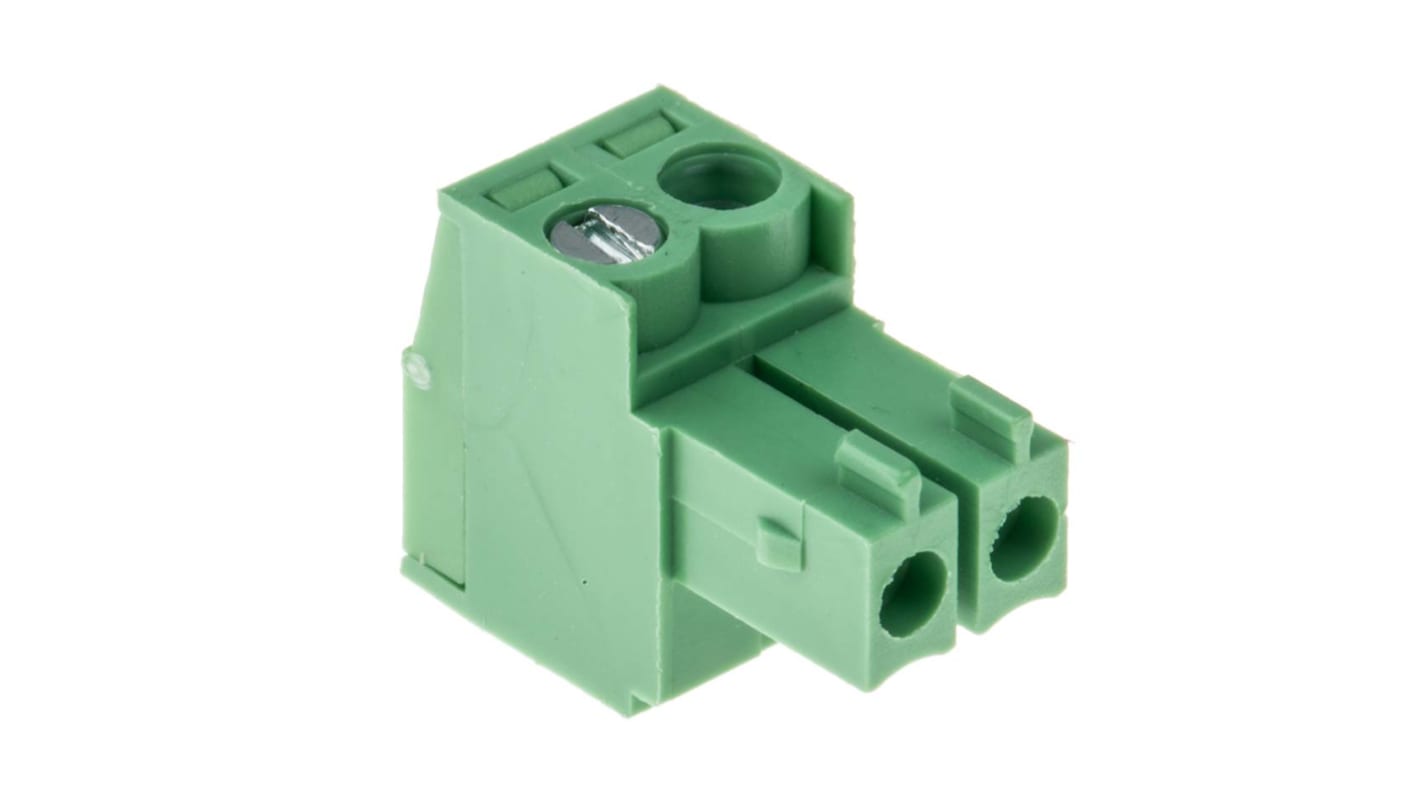

RS PRO 3.5mm Pitch 2 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination
- RS庫存編號:
- 897-0998
- 製造商:
- RS PRO
1960 現貨庫存,可於4工作日發貨。
單價 个(每托盘 10 )
HK$6.581
單位 | 每單位 | 每包* |
---|---|---|
10 - 90 | HK$6.581 | HK$65.81 |
100 - 490 | HK$6.396 | HK$63.96 |
500 + | HK$5.264 | HK$52.64 |
* 參考價格
- RS庫存編號:
- 897-0998
- 製造商:
- RS PRO
- COO (Country of Origin):
- CN
RS PRO 3.5mm Pitch, 2-Way PCB Terminal Block
Safely and efficiently connect wires across printed circuit boards with this 2-way PCB (printed circuit board) terminal strip. You can mount this insulated, modular device directly onto the board.
If there are any issues or adjustments needed, the PCB terminal block is pluggable for easy connections that can be quickly disconnected. It's easy to set up thanks to its through-hole mounting, while the screw termination method allows for easy securing of connections. Its steel screws as well as its four contacts are tin-plated to reduce corrosion, oxidation and degradation. Accepting solid and strained cable with a wire size range of 0.13 mm² to 1.3 mm², this is a highly versatile connector.
This component has been tested in order to meet our exacting RS PRO standards. Its housing is made of green polyamide (PA66) with a UL94-V0 certification, indicating good fire safety. It can be used in anything from small-scale electronics equipment you'd find at home to complex industrial circuitry.
If there are any issues or adjustments needed, the PCB terminal block is pluggable for easy connections that can be quickly disconnected. It's easy to set up thanks to its through-hole mounting, while the screw termination method allows for easy securing of connections. Its steel screws as well as its four contacts are tin-plated to reduce corrosion, oxidation and degradation. Accepting solid and strained cable with a wire size range of 0.13 mm² to 1.3 mm², this is a highly versatile connector.
This component has been tested in order to meet our exacting RS PRO standards. Its housing is made of green polyamide (PA66) with a UL94-V0 certification, indicating good fire safety. It can be used in anything from small-scale electronics equipment you'd find at home to complex industrial circuitry.
Features and Benefits
• Green 2-way PCB Terminal Block
• Pitch of 3.5 mm
• Dimensions of 7 mm (length) x 15.6 mm (depth) x 11.4 mm (width)
• Single row
• Through-hole mounting
• Female connection (socket)
• Screw termination method
• Right-angle body orientation
• Current rating of 10 A
• Voltage rating of 200 V
• Made of Polyamide
• Pitch of 3.5 mm
• Dimensions of 7 mm (length) x 15.6 mm (depth) x 11.4 mm (width)
• Single row
• Through-hole mounting
• Female connection (socket)
• Screw termination method
• Right-angle body orientation
• Current rating of 10 A
• Voltage rating of 200 V
• Made of Polyamide
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Attribute | Value |
---|---|
Pluggable Terminal Block Type | Plug |
Number of Contacts | 2 |
Pitch | 3.5mm |
Number of Rows | 1 |
Body Orientation | Right Angle |
Mounting Type | Through Hole |
Termination Method | Screw |
Current Rating | 10A |
Voltage Rating | 200 V |
Colour | Green |
Material | Polyamide |
