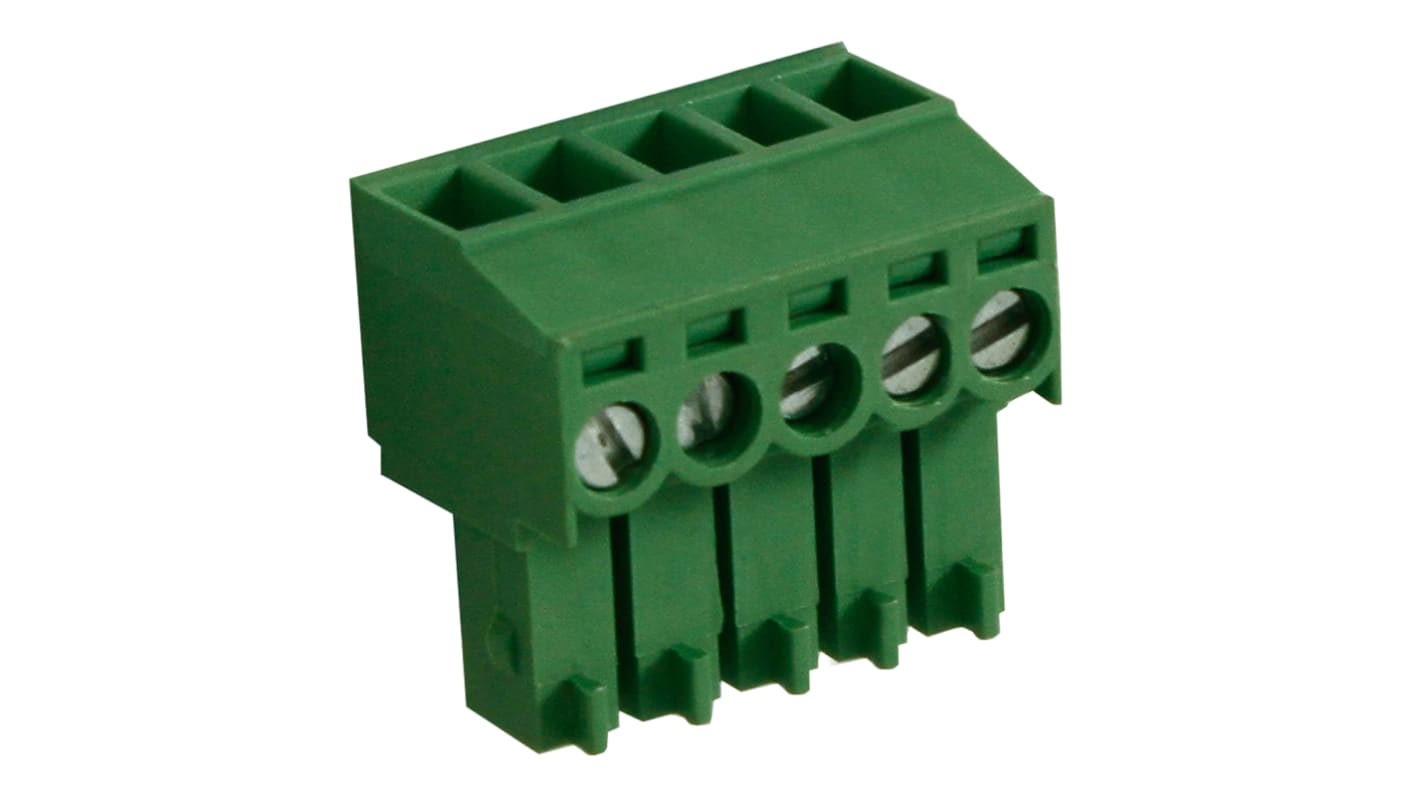

If you need a safe and easy way to set up circuits on your PCB (printed circuit board), this five-way PCB terminal block can be used to connect two or more wires. It can be installed directly on the board with simple through-hole mounting. The block is designed for screw termination, which allows connections to be secured firmly using a screwdriver. Its screws are tin-plated to reduce corrosion, oxidation and degradation, as are the four contacts. This connector is highly versatile, accepting wires within a size range of 0.33 mm² to 3.3 mm². The housing of this product is made of green polyamide (PA66), which has good flame retardance, enabling a safer working environment. It can be used effectively in anything from everyday electronics equipment to industrial circuitry.
Features and Benefits
• Right angle body orientation • Current rating of 10 A • Voltage rating of 200 V • Depth of 15.6 mm • Length of 17.5 mm • Width of 11.4 mm • Pitch of 3.5 mm • Through-hole mounting type • Five contacts • One row • Screw termination method
