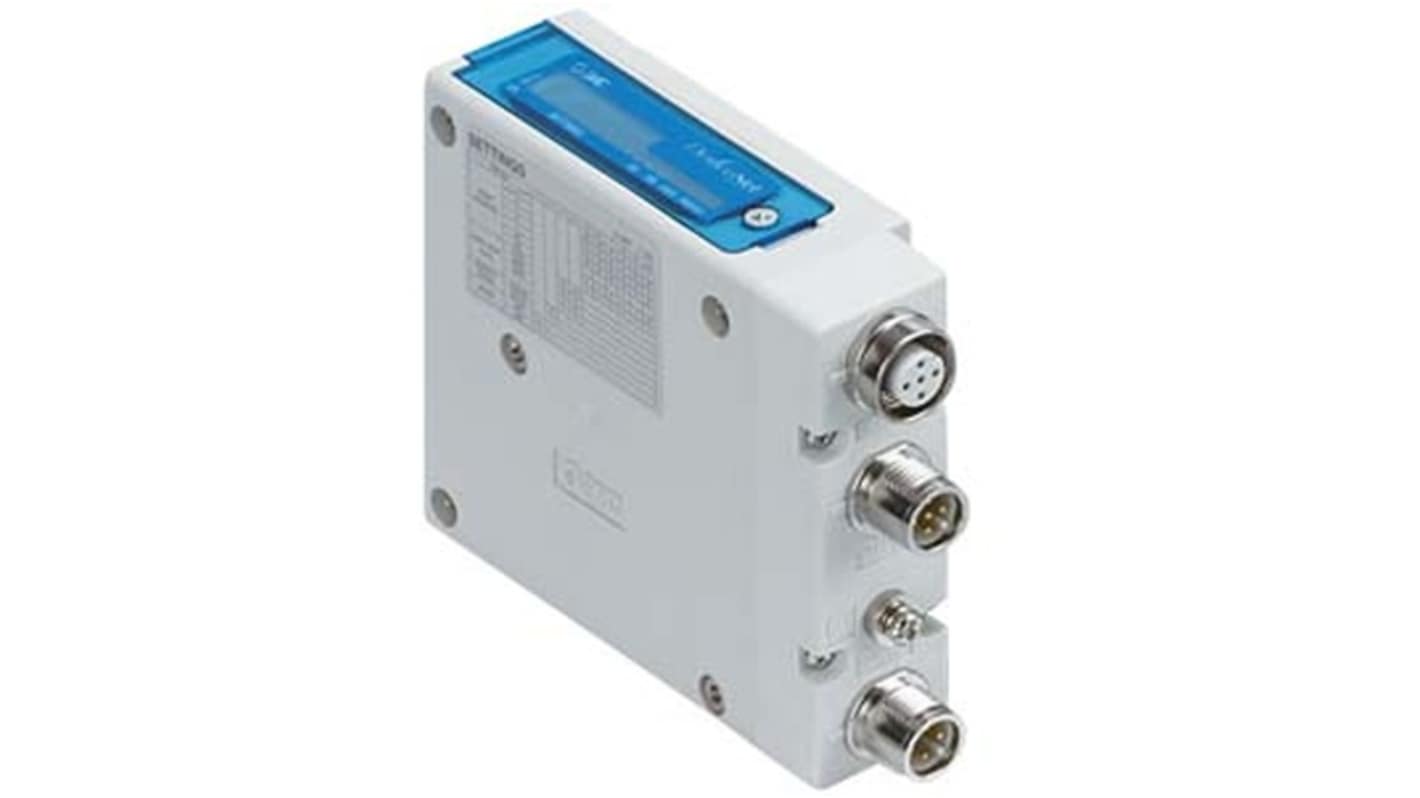

SMC EX260 series Pneumatic Logic Controller

RS庫存編號:: 426-823
製造零件編號:: EX260-FPS1
製造商:: SMC

SMC EX260 series Pneumatic Logic Controller

查看所有Pneumatic Logic Controllers

小計（1 件）*

HK$7,212.30

訂單超過 HK$250.00 免費送貨

製造商存貨

準備從 2026年9月02日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$7,212.30

* 參考價格

RS庫存編號:: 426-823
製造零件編號:: EX260-FPS1
製造商:: SMC

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	SMC
	Product Type	Pneumatic Logic Controller
	Number of Inputs	8
	Series	EX260
	Voltage	24V
	Display Type	LED Indicator
	Hazardous Area Certification	No
	Number of Outputs	8
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	UL, CE, RoHS
	Depth	78mm
	Height	102mm
	Width	28mm
	Output Type	Digital Output
	Suitable Medias	Air
	Connection Type	M12

	選取全部
	品牌 SMC
	Product Type Pneumatic Logic Controller
	Number of Inputs 8
	Series EX260
	Voltage 24V
	Display Type LED Indicator
	Hazardous Area Certification No
	Number of Outputs 8
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Standards/Approvals UL, CE, RoHS
	Depth 78mm
	Height 102mm
	Width 28mm
	Output Type Digital Output
	Suitable Medias Air
	Connection Type M12

COO (Country of Origin):: JP

SMC EX260 Series Pneumatic Logic Controller, 8 Inputs, 8 Outputs - EX260-FPS1

This pneumatic logic controller provides compact, factory-floor control for air-driven systems, combining digital switching with LED status indication for straightforward monitoring. Designed for automation environments, it integrates into low-voltage pneumatic control architectures where a modular, M12-connected unit is required.

Features & Benefits

• Eight inputs and eight outputs enable complex control sequences and expanded I/O capacity
• Digital outputs at 24V ensure compatibility with standard control voltages
• LED indicator offers immediate Visual diagnostics for signal states
• Rated for operation from -10°C to +50°C allows use across typical indoor plant temperatures
• M12 connection simplifies wiring and reduces installation time
• Suited to Air media for direct integration with pneumatic actuators and valves

Applications

• Suitable for sequencing pneumatic cylinders in assembly lines
• Ideal for small robotic end-of-arm tooling control
• used with valve manifolds to manage multi-actuator stations
• Can be used for pick-and-place machine logic functions
• Suitable for decentralised control on conveyor sorting modules

How is the unit physically connected within a control network?

It uses an M12 connector for signal and power interfaces, providing a Compact plug-in wiring solution.

What media can be controlled directly by this device?

It is designed for Air media, enabling direct interaction with pneumatic valves and actuators.

What environmental temperature range can it withstand during operation?

It operates reliably between -10°C and +50°C, covering common indoor industrial conditions.

How many discrete control channels are available on the device?

The unit provides eight input channels and eight digital output channels for discrete signal control.

What is the required supply voltage for the outputs?

Outputs are driven at 24V, matching typical low-voltage control systems.
