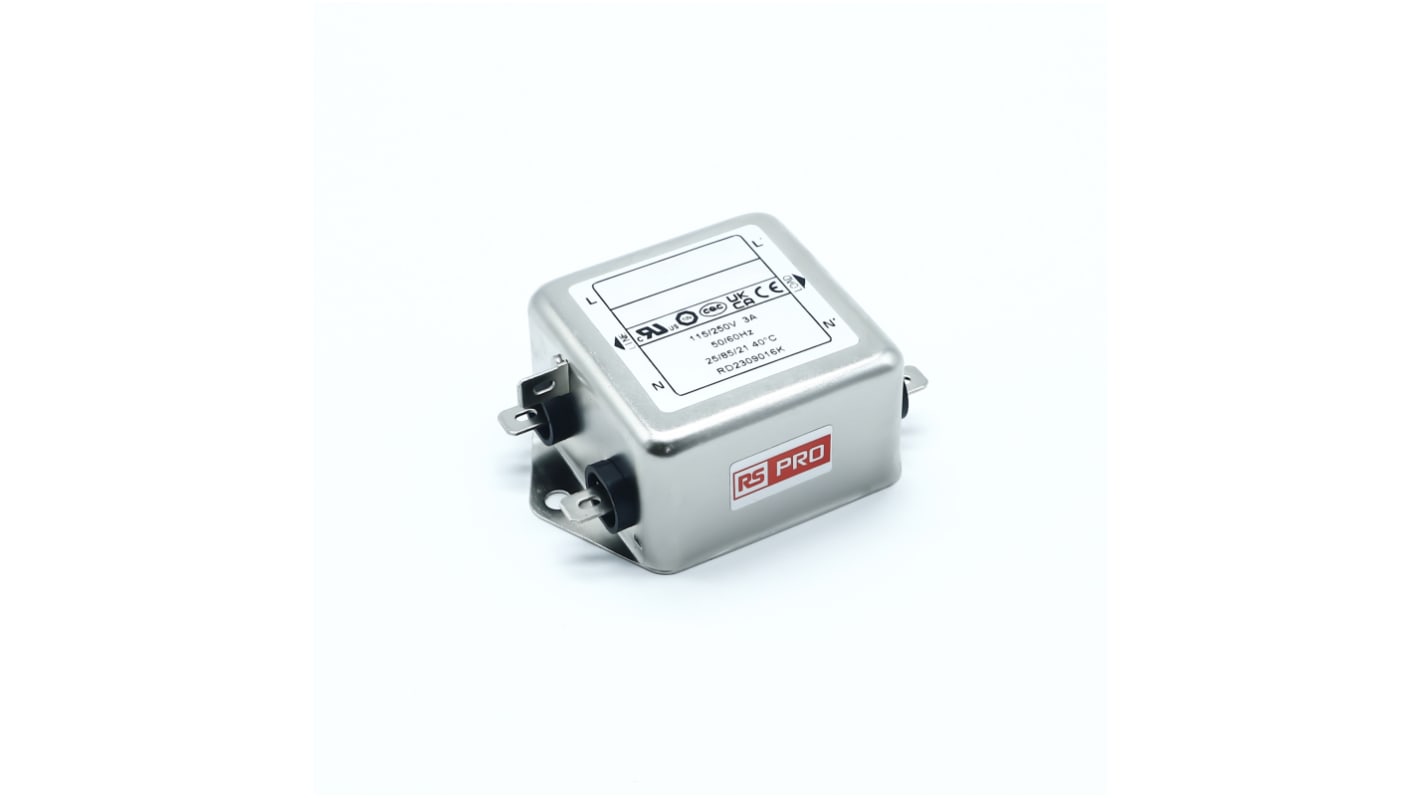

RS PRO 3A 250 V ac 50/60Hz, Chassis Mount EMI Filter, Fast-On, Single Phase
- RS庫存編號:
- 276-6305
- 製造商:
- RS PRO
可享批量折扣
Price 个**
HK$456.00
本地庫存暫不足，貨期請向RS查詢
訂單金額滿 HK$850.00 即可享受 免費 送貨服務
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$456.00 |
| 5 - 9 | HK$420.42 |
| 10 - 24 | HK$384.84 |
| 25 - 49 | HK$345.26 |
| 50 + | HK$310.02 |
** 參考價格
- RS庫存編號:
- 276-6305
- 製造商:
- RS PRO
- COO (Country of Origin):
- CN
RS PRO 3A Single Phase Two Stage EMC Filter
A general purpose single phase EMI filter featuring 2 stage filtering for the reduction of electromagnetic interference through power lines protecting sensitive connected equipment.
Designed for chassis mounting and built to a compact size of 73 x 51 x 29mm the power line filter is ideal for areas with limited space and is easily connected using the 6.3 x 0.8mm fast on terminals.
Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 85°C the 2 stage power line filter is hardwearing and suitable for use with general electrical and electronic equipment, sensitive medical equipment, energy applications and communication equipment.
Features and Benefits
Power line EMI filter
Current rated to 3A
Two stage filtering
Hipot Rating 2250vdc (line to ground), 500Vdc (line to line)
IP40 rated
Dimensions of 73 x 51 x 29mm
63mm mounting hole
6.3 x 0.8mm Fast on terminals
Weight of 250g
Standards and Approvals: UL, TUV, CQC, CE, UKCA, UL EN 60939, UL1283; CSA C22.2 No.8; GB/T 15287; GB/T 15288-1994
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Standards
UL E542953
Attribute | Value |
|---|---|
| Maximum Current Rating | 3A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Number of Stages | Two Stage |
| Operating Frequency | 50/60Hz |
| Length | 73mm |
| Depth | 51mm |
| Height | 29mm |
| Capacitance | 2200pF |
| Inductance | 2 x 2mH |
| Dimensions | 73 x 51 x 29mm |
| Leakage Current | 0.5mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Resistance | 1MΩ |
| Standards Met | UL 1283 |
