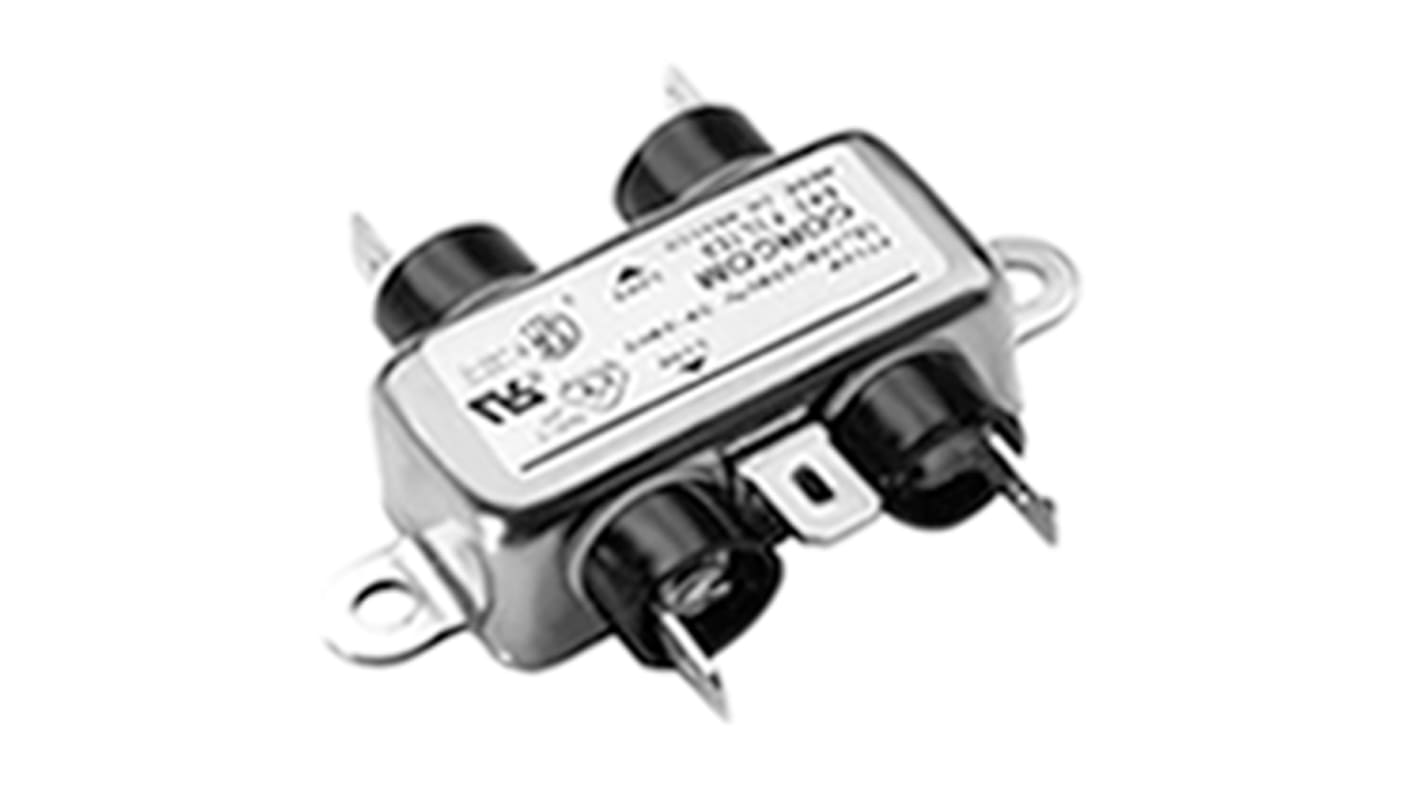

TE Connectivity, Corcom B 1A 250 V ac 50Hz, Flange Mount RFI Filter, Fast-On, Single Phase
- RS庫存編號:
- 881-3769P
- 製造零件編號:
- 6609020-1
- 製造商:
- TE Connectivity
可享批量折扣
Price 个 (以每盒裝提供)**
HK$138.30
58 現貨庫存，可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
即時庫存查詢
單位 | 每單位 |
|---|---|
| 14 - 27 | HK$138.30 |
| 28 + | HK$135.30 |
** 參考價格
- RS庫存編號:
- 881-3769P
- 製造零件編號:
- 6609020-1
- 製造商:
- TE Connectivity
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | TE Connectivity | |
| Maximum Current Rating | 1A | |
| Maximum Voltage Rating | 250 V ac | |
| Mounting Type | Flange Mount | |
| Termination Style | Fast-On | |
| Number of Phases | 1 | |
| Number of Stages | Single Stage | |
| Series | Corcom B | |
| Operating Frequency | 50 Hz, 60Hz | |
| Length | 57.2mm | |
| Depth | 16.8mm | |
| Capacitance | 4.9 nF, 100nF | |
| Height | 64.3mm | |
| Dimensions | 57.2 x 16.8 x 64.3mm | |
| Inductance | 1.86 mH | |
| Leakage Current | 0.7 mA | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +40°C | |
| Standards Met | UL 1283 | |
選取全部 | ||
|---|---|---|
品牌 TE Connectivity | ||
Maximum Current Rating 1A | ||
Maximum Voltage Rating 250 V ac | ||
Mounting Type Flange Mount | ||
Termination Style Fast-On | ||
Number of Phases 1 | ||
Number of Stages Single Stage | ||
Series Corcom B | ||
Operating Frequency 50 Hz, 60Hz | ||
Length 57.2mm | ||
Depth 16.8mm | ||
Capacitance 4.9 nF, 100nF | ||
Height 64.3mm | ||
Dimensions 57.2 x 16.8 x 64.3mm | ||
Inductance 1.86 mH | ||
Leakage Current 0.7 mA | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +40°C | ||
Standards Met UL 1283 | ||
