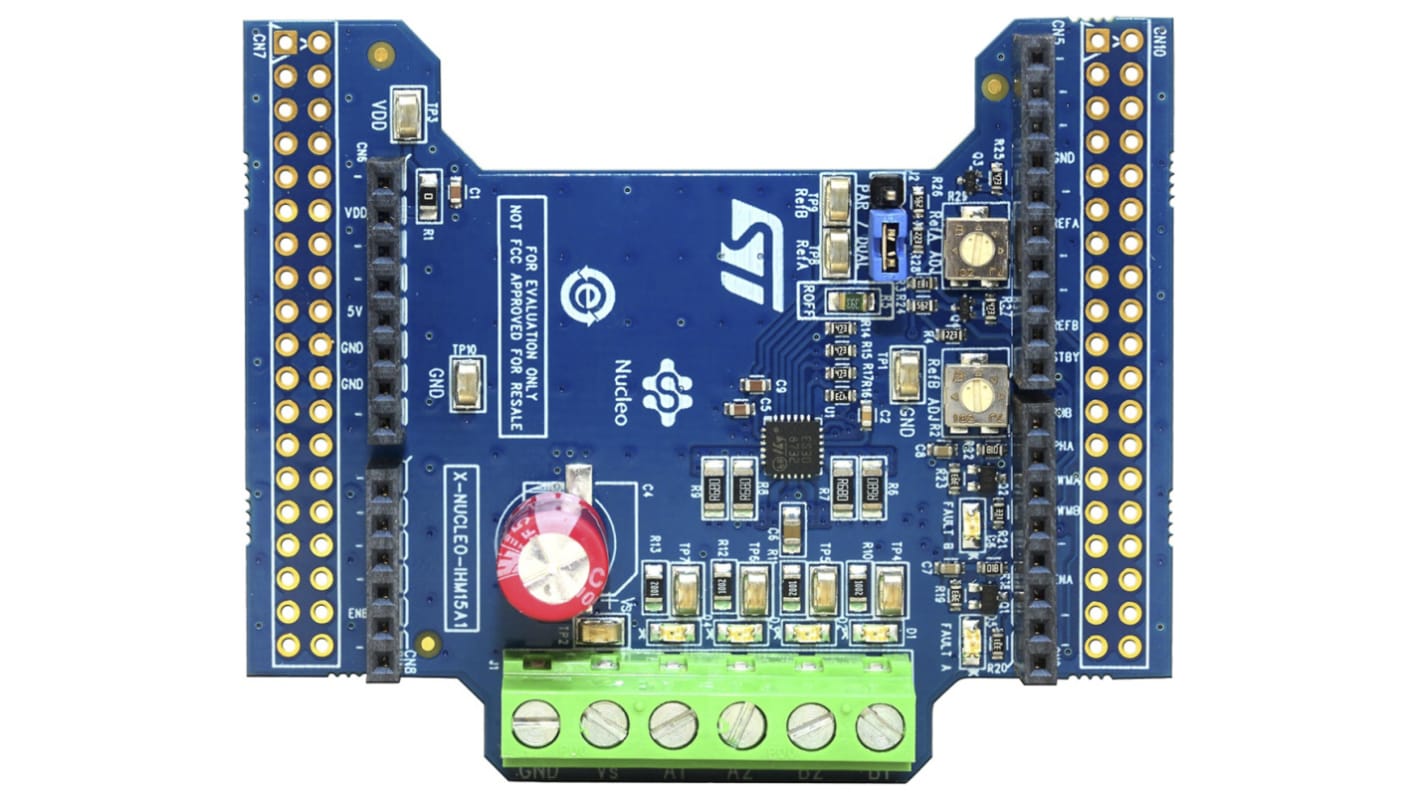

STMicroelectronics Dual Brush DC Motor Driver Expansion Board Based on STSPIN840 for STM32 Nucleo DC Motor for STSPIN840

查看此類別
可享批量折扣

小計（1 件）*

HK$144.50

Add to Basket
選擇或輸入數量
有限的庫存
  • 1 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 4HK$144.50
5 +HK$141.60

* 參考價格

RS庫存編號:
182-7796
製造零件編號:
X-NUCLEO-IHM15A1
製造商:
STMicroelectronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

STMicroelectronics

Product Type

Power Management Development Kit

Power Management Function

DC Motor

For Use With

STM32 Nucleo

Kit Classification

Evaluation Board

Featured Device

STSPIN840

Kit Name

Dual Brush DC Motor Driver Expansion Board Based on STSPIN840 for STM32 Nucleo

Standards/Approvals

RoHS

The X-NUCLEO-IHM15A1 dual brush DC motor driver expansion board is based on the STSPIN840 for STM32 Nucleo. It provides an affordable and easy-to-use solution for the implementation of compact motor driving applications such as thermal printers, robotics and toys. Thanks to the parallel operation, it can be easily converted to a single brush DC driver with double current capability. The current limiters and complete set of protection features make it suitable for rugged applications. The X-NUCLEO-IHM15A1 is compatible with the Arduino UNO R3 connector and most STM32 Nucleo boards.

Voltage range from 7 to 45 V

Output current up to 1.5 Arms for each motor

Two independent current limiters with adjustable OFF time

Full protection set including: overcurrent, short-circuit, under voltage lock out and thermal shutdown

Parallel operation

Compatible with Arduino UNO R3 connector

Compatible with STM32 Nucleo boards
