Microchip Digital Power PIM Power Module for dsPIC33CH512MP506 for Digital Power Development Board and Low Voltage PFC

查看此類別
可享批量折扣

小計（1 件）*

HK$594.20

Add to Basket
選擇或輸入數量
暫時缺貨
  • 從 2026年3月16日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 4HK$594.20
5 +HK$582.30

* 參考價格

RS庫存編號:
226-0476
製造零件編號:
MA330049
製造商:
Microchip
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Microchip

Product Type

Plug-In Module

Power Management Function

Power Module

For Use With

Digital Power Development Board and Low Voltage PFC Development Board

Kit Classification

Module

Featured Device

dsPIC33CH512MP506

Kit Name

Digital Power PIM

Standards/Approvals

ISO

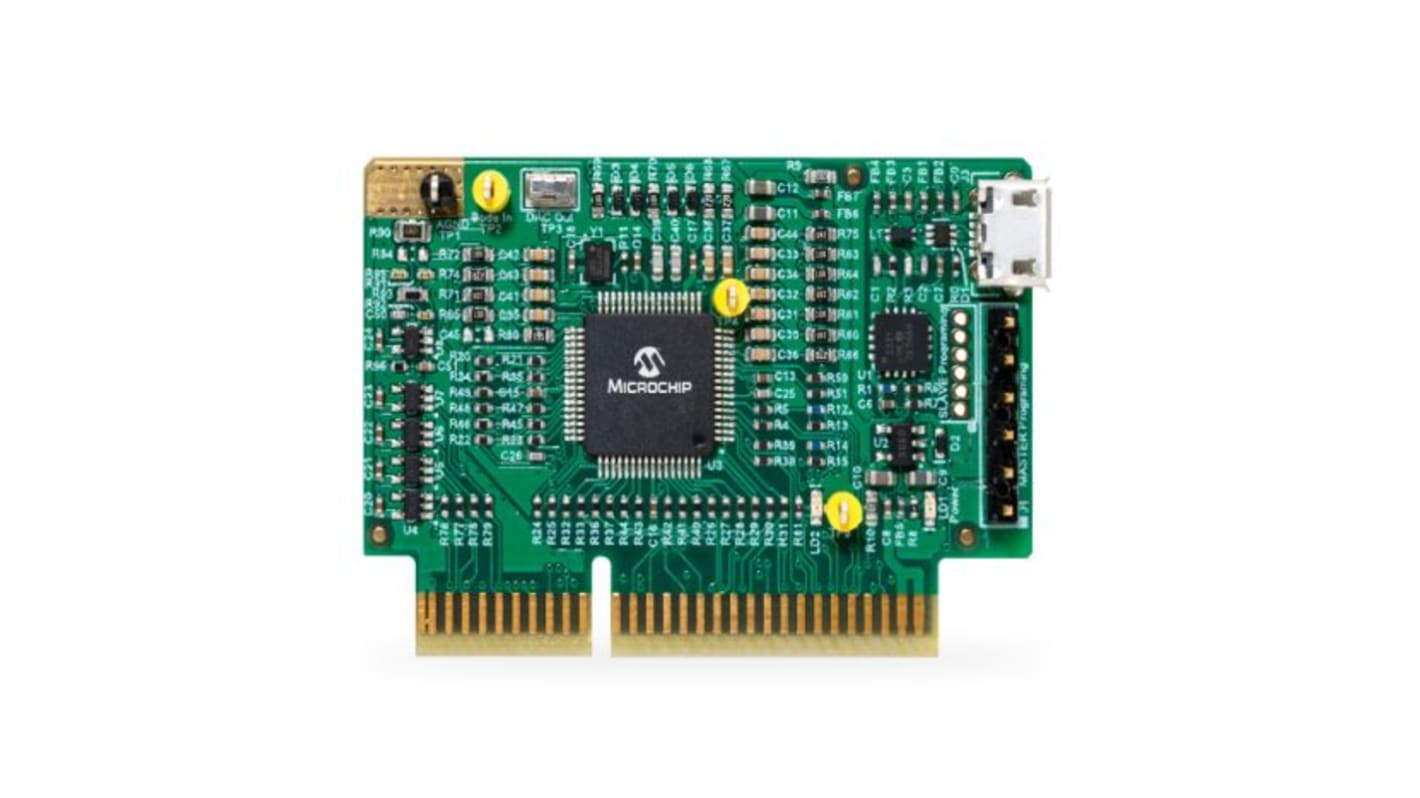

The Microchip dsPIC33CH512MP506 Digital Power Plug-In Module (DP PIM) is a demonstration board that, in conjunction with different power boards, showcases the Microchip dsPIC33CH512MP506 16-Bit Digital Signal Controller (DSC) features. The DP PIM provides access to the dsPIC33CH512MP506 analog inputs, the Digital-to-Analog Converter (DAC) output, the Pulse-Width Modulation (PWM) outputs and the General Purpose Input and Output (GPIO) ports.

Microchip dsPIC33CH512MP506 16-Bit Digital Signal Controller

ICSP™ programming header for Master core

Both cores can be programmed and debugged through one ICSP interface

On-board LDO with Power Good (PG) function

Micro USB connector

MCP2221A USB to UART/I2C serial converter

Board edge connection interface for analog inputs/outputs, PWM outputs and GPIO ports

Test point loop for DAC output
