Microchip 8 x 2-pair PSE EVB featuring PD39208 + PD39210 loaded w/IEEE802.3at FW Power Over Ethernet (POE) for PD39210

查看此類別
可享批量折扣

小計（1 件）*

HK$3,132.00

Add to Basket
選擇或輸入數量
有庫存
  • 2 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 4HK$3,132.00
5 +HK$3,069.40

* 參考價格

RS庫存編號:
231-8069
製造零件編號:
EV14G15A
製造商:
Microchip
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Microchip

Product Type

Evaluation Board

Power Management Function

Power Over Ethernet (POE)

For Use With

PD39210

Kit Classification

Evaluation Module

Featured Device

PD39210

Kit Name

8 x 2-pair PSE EVB featuring PD39208 + PD39210 loaded w/IEEE802.3at FW

Standards/Approvals

IEC60950-1, IEEE 802.3af/at Standards, IEC62368-1 Ed2, EN60950-1

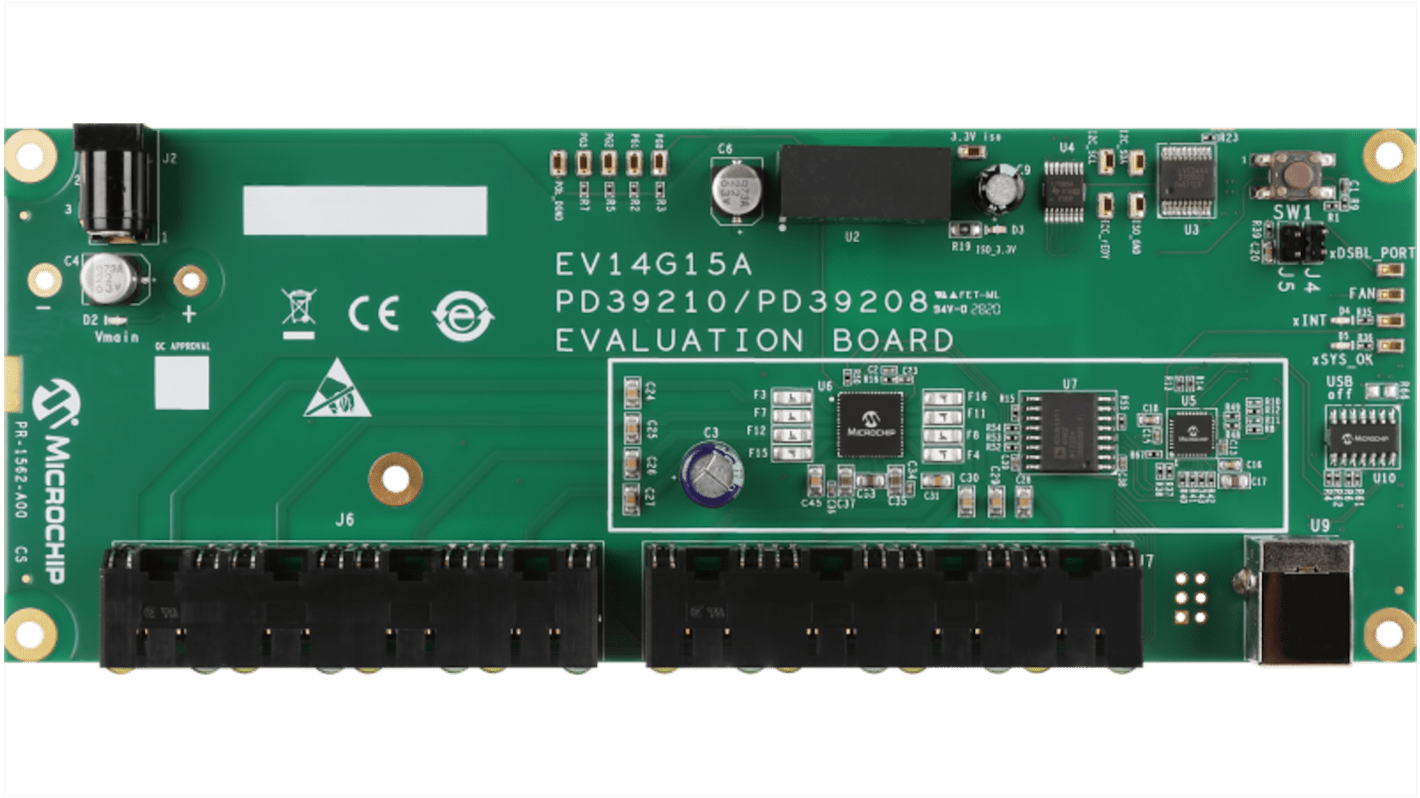

The Microchip EV14G15A evaluation board is developed based on PD39208 and PD39210 chipsets. This EVB demonstrates the operation of an eight (2-pair) port system. Microchip's PD39208 Power over Ethernet (PoE) manager IC integrates power, analog, and state-of-the-art logic into a single 56-pin, plastic QFN package. The device is used in Ethernet switches and midspans to allow network devices to share power and data over the same cable.

Eight port IEEE 802.3at PSE system

Two RJ45 gangs (each contains four RJ45 connectors)

Switch domain isolated from PoE domain

Switch domain USB interface to be connected to a PC with Microchip GUI

PoE controller manual reset & serial communication setting

LED status indication for all ports (LED stream)
