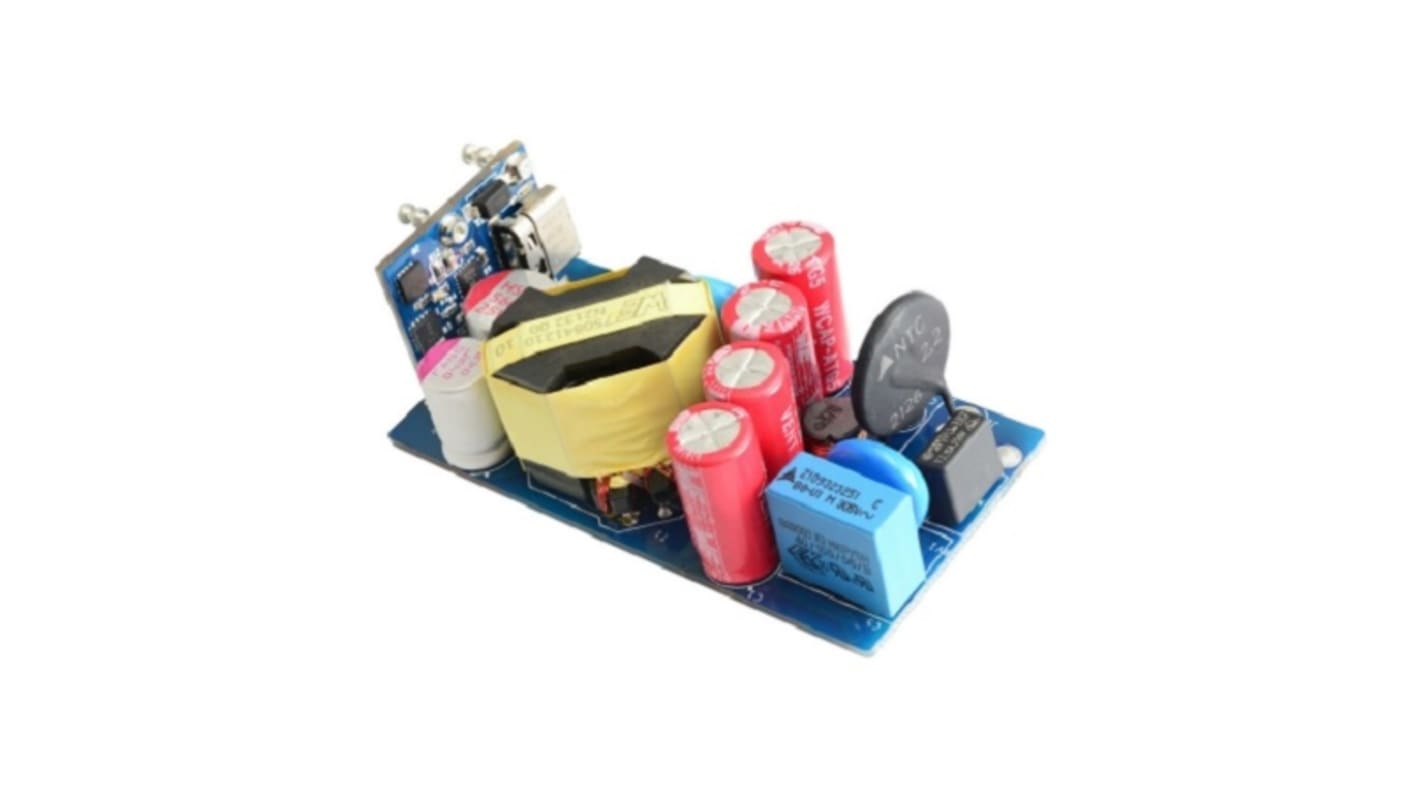

STMicroelectronics 45 W QR USB PD Adapter reference design based on VIPERGAN50 and STUSB4761 Power Supply for

查看此類別
可享批量折扣

小計（1 件）*

HK$990.40

Add to Basket
選擇或輸入數量
有庫存
  • 5 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 1HK$990.40
2 - 2HK$970.60
3 +HK$951.20

* 參考價格

RS庫存編號:
250-0208
製造零件編號:
EVLVIPGAN50PD
製造商:
STMicroelectronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

STMicroelectronics

Product Type

Power Management Development Kit

Power Management Function

Power Supply

For Use With

VIPERGAN50, STUSB4761

Kit Classification

Adapter Board

Featured Device

EVLVIPGAN50PD 45 W USB Type-C Power Delivery 3.0 adapter

Kit Name

45 W QR USB PD Adapter reference design based on VIPERGAN50 and STUSB4761

Standards/Approvals

Meet CoC Tier 2 and DoE Level 6 efficiency requirements

The STMicroelectronics 45 W USB type C power delivery 3.0 adapter , which is a USBPD reference design solution. It is an isolated power supply based on the VIPERGAN50, a new offline high voltage converter from the VIPerPlus family with a 650 V HEMT Power GaN transistor, designed for quasi resonant flyback converters and capable of providing an output power up to 50 W in wide range. The evaluation board implements a robust adapter protected for output overvoltage, output undervoltage, output over power and output short circuit. This reference design, based on STMicroelectronics semiconductors, helps designers to develop adapters with a short bill of materials to obtain a cost effective and fast design.

Input voltage range is Universal AC from 90 to 264 VAC with 47 Hz to 63 Hz

frequency

Maximum output power is 45 W

Efficiency standards are Meet CoC Tier 2 and DoE Level 6 efficiency requirements

Support for USB PD, type C output connector

Applications are AC DC smart chargers for smartphones, tablets, laptops and other handheld equipment

Meets IEC55022 Class B conducted EMI
