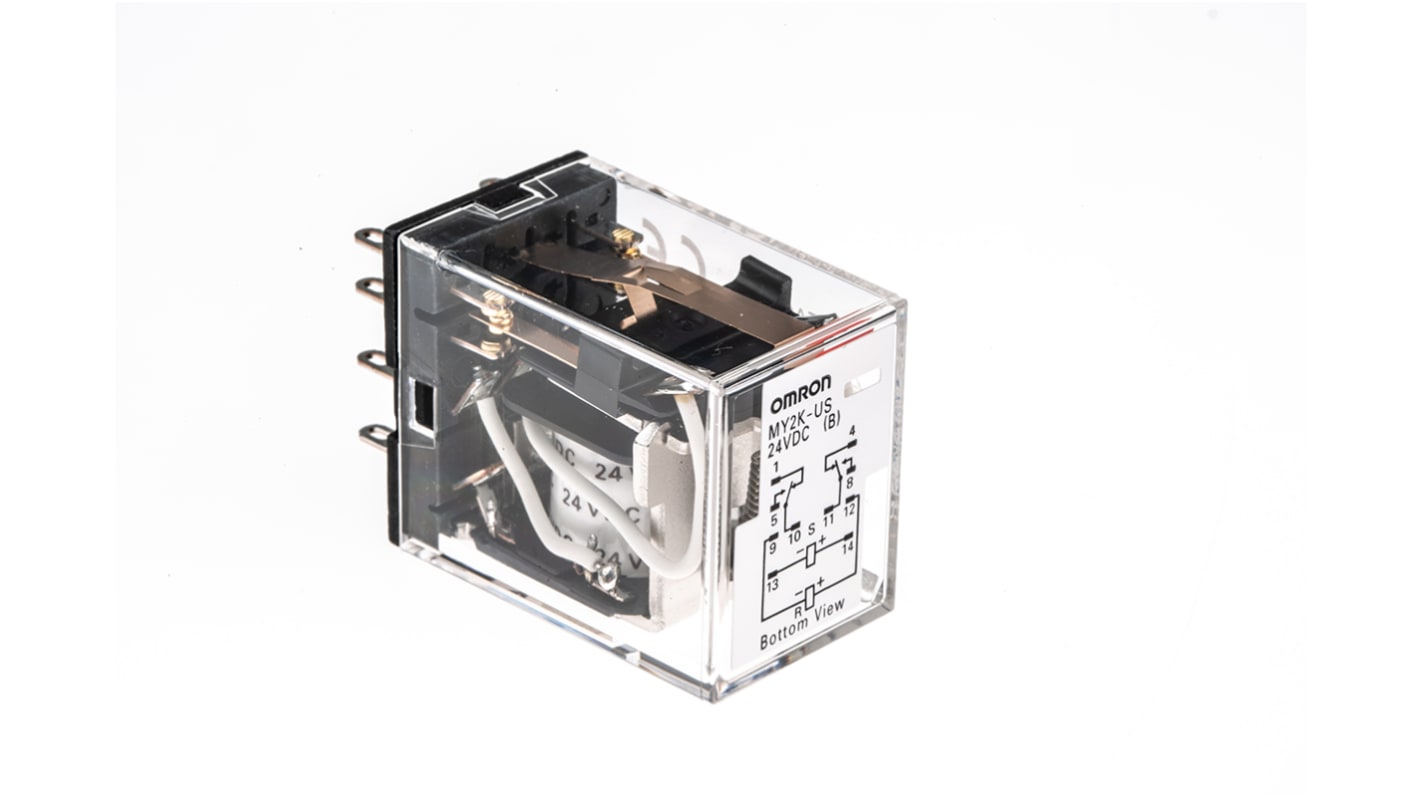

Omron Plug In Latching Power Relay, 24V dc Coil, 3A Switching Current, DPDT

The Omron miniature power relay has two poles and switching current is 3A. It is a DC powered plug-in type latching relay with bi-stable switching. This means the current switching state is retained, irrespective of the excitation. Ageing does not affect this power relay because of the use of special magnetic materials, thus ensuring a long continuous holding time. It facilitates easy monitoring of ON/OFF operation owing to the built-in operation indicator mechanism. This relay is robust. This means that there are little changes in characteristics such as contact follow and contact pressure throughout its life.

24VDC supply rated coil
Double-winding latch system that holds residual magnetism
DPDT contact configuration
Excellent resistance to vibration and shock
Operating temperature ranging between -55°C and 60°C

Anti-condensation equipment
Car washing equipment
Coffee machines
Commercial cooking equipment
Driers and pumps
HVAC
Industrial cleaning equipment
Refrigeration

CSA certified
UL approval
VDE certified

UL; CSA
