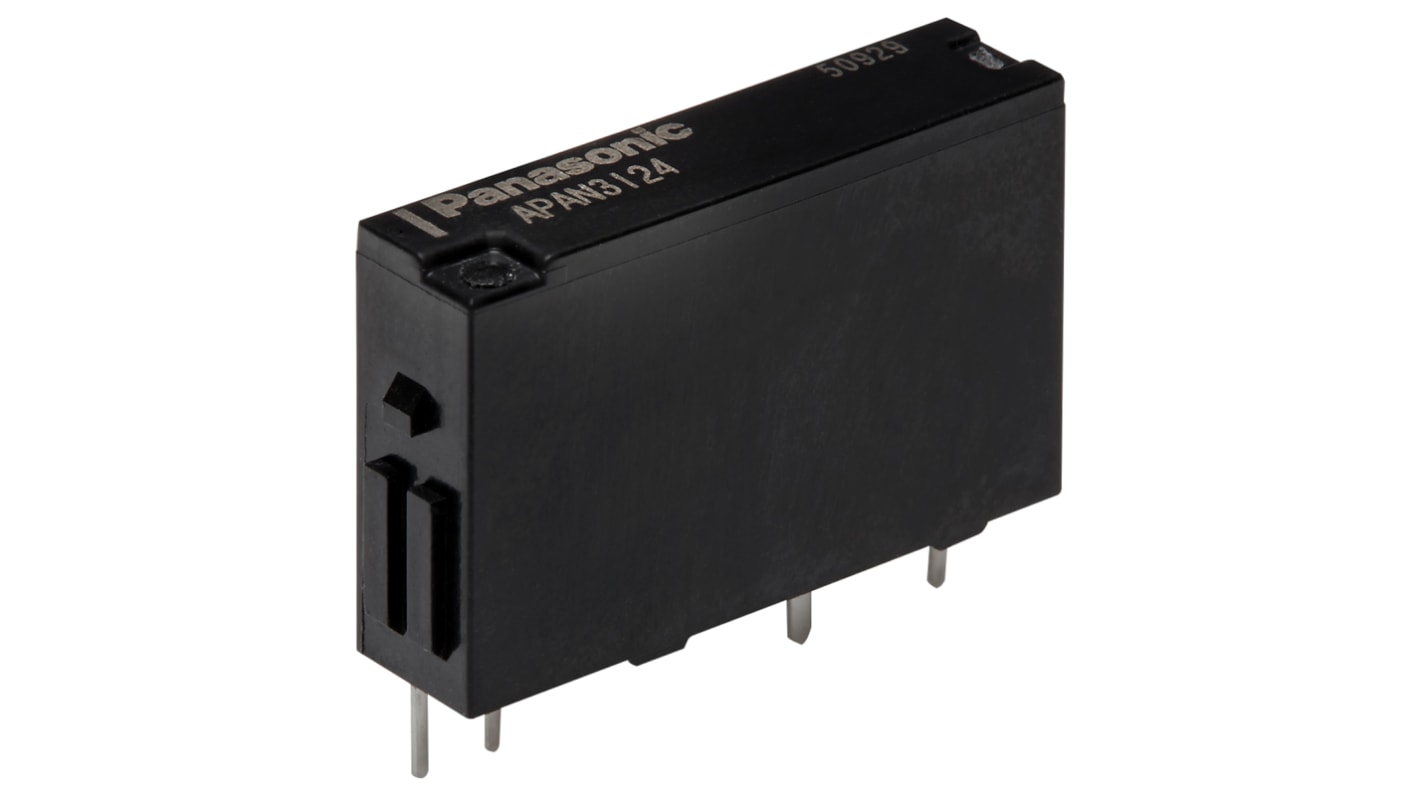

Introducing the PA-N Relays from Panasonic for use in Industrial equipment, office equipment, measuring devices, test equipment, programmable controllers and temperature controllers.
Features and Benefits
• High density mounting • Low operating power - nominal operating power: 110 mW • Long insulation distance • Complies with IEC61010 reinforced insulation standards
Attribute
Value
Coil Voltage
24V dc
Contact Configuration
SPST
Mounting Type
PCB Mount
Switching Current
5A
Number of Poles
1
Latching
No
Terminal Type
PCB Pin
Maximum Switching Voltage AC
250V
Maximum Switching Voltage DC
110V dc
Length
20mm
Coil Resistance
5236Ω
Coil Power
110mW
Isolation Coil To Contact
3kVrms
Height
12.5mm
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+90°C
Standards Met
cULus, IEC 61010, TUV
Contact Material
Gold Plated
Life
Minimum of 20000000 (Mechanical) operations, Minimum of 50000 (Electrical) operations
