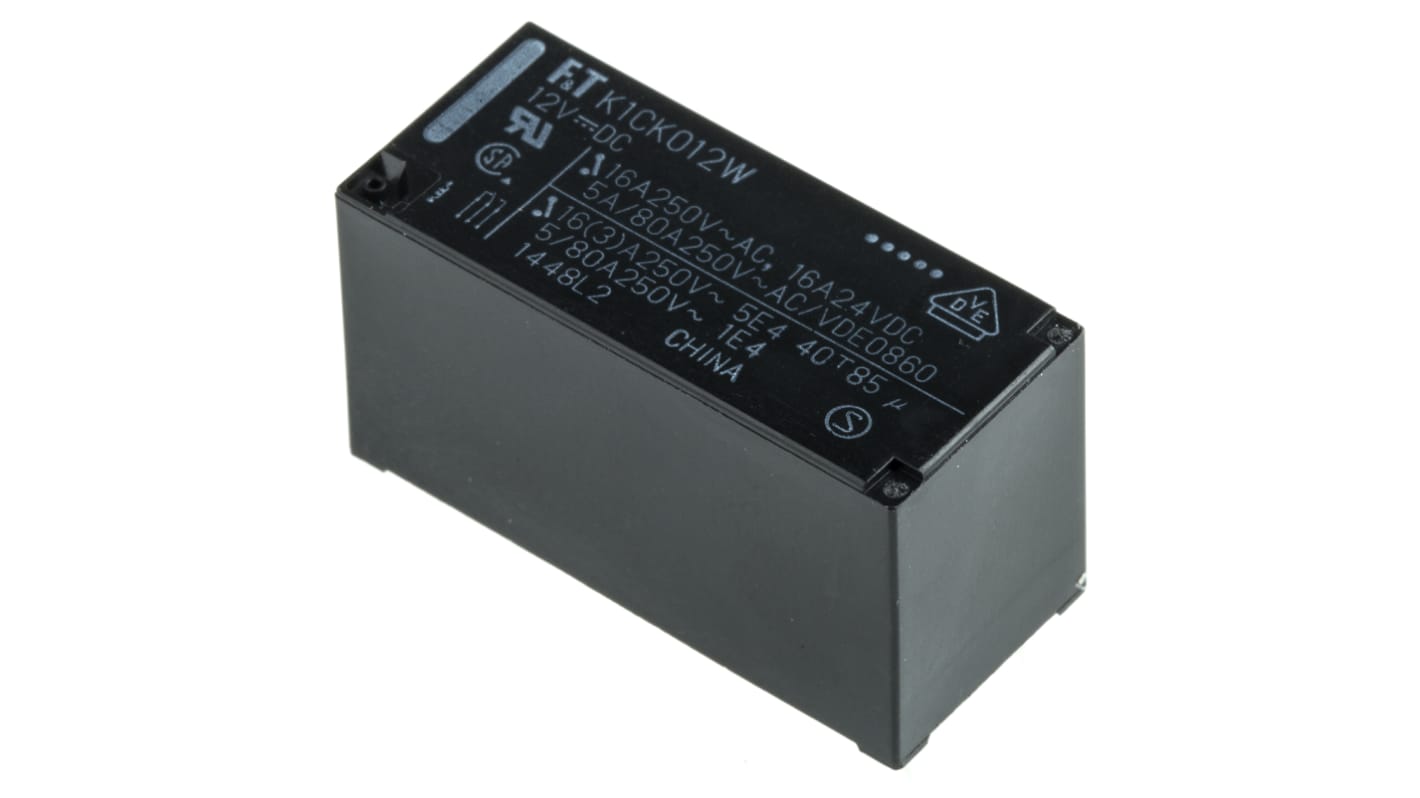

Fujitsu PCB Mount Power Relay, 12V dc Coil, 16A Switching Current, SPDT
- RS庫存編號:
- 790-3335
- 製造零件編號:
- FTR-K1CK012W
- 製造商:
- Fujitsu
325 現貨庫存，可於3工作日發貨。
已增加
單價 个
HK$22.36
| 單位 | Per unit |
| 1 - 19 | HK$22.36 |
| 20 - 49 | HK$21.69 |
| 50 - 99 | HK$21.02 |
| 100 - 199 | HK$20.56 |
| 200 + | HK$20.13 |
- RS庫存編號:
- 790-3335
- 製造零件編號:
- FTR-K1CK012W
- 製造商:
- Fujitsu
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
FTR-K1 Series Power Relay
FTR-H1 Miniature power relay from Fujitsu.
Gold plated silver alloy contacts
Contact Rating 16 A @ 250 V ac / 30 V dc
Contact Rating 16 A @ 250 V ac / 30 V dc
Standards
UL, CSA
Fujitsu
規格
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 16A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 440V ac |
| Maximum Switching Voltage DC | 300V dc |
| Length | 29mm |
| Coil Resistance | 360 Ω |
| Coil Power | 400mW |
| Maximum Operating Temperature | +85°C |
| Isolation Coil To Contact | 10kV |
| Depth | 12.7mm |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver Alloy |
| Life | 30 x 10³ Operations, 50 x 10³ Operations |
| Height | 15.7mm |
| Maximum Switching Power AC | 4 kVA |
| Maximum Switching Power DC | 384 W |
| Application | Power |
