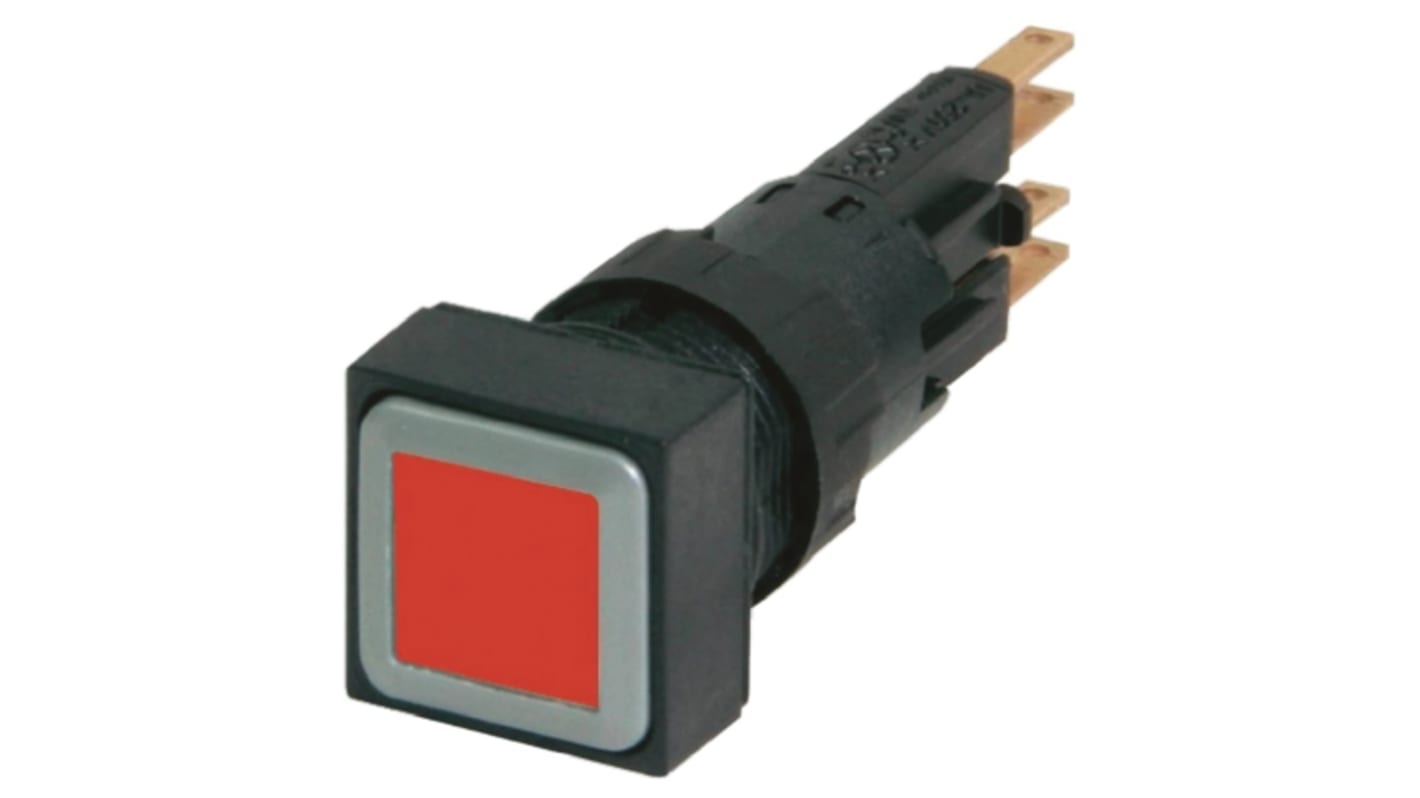

Eaton RMQ16 Series Red Illuminated Momentary Push Button, 16mm Cutout, IP65

The RMQ 16 range of control devices are the perfect solution for the modern industrial sector. These pushbuttons are available with integrated multi-LED illumination in various colours with either momentary or maintained switching providing the right fit for your business needs. Ideally suited for industrial applications the front elements have an enhanced IP65 protection rating making them dust tight and protected against water projection.

These devices can be butted together allowing a greater number of devices to be fitted into a smaller area compared to 22.5 mm devices. One or two normally open or normally closed contacts, which are available separately in this range, can be fitted to each switch. The Colour coded contacts 230V/4A, having low current voltage switching offer a life expectancy of three million operations while the emergency-stop buttons also offer important features such as tamper-proofing.

Available in 18mm and 25mm square bezel sizes
Wedge base lamp required: 6V, 12V or 24V. Available separately

This illuminated push button has a momentary actuation that enhances user interaction. Constructed from durable plastic, it offers a cutout diameter of 16mm, making it suitable for panel mounting in various settings.

• Red button colour improves visibility in low-light situations
• Momentary actuation provides immediate response for user actions
• High operating temperature range accommodates tough environments
• Push-in terminal design enhances ease of installation
• Long lifespan of 3,000,000 operations reduces replacement frequency

• Used for control panels in industrial machinery
• Suitable for automation systems requiring momentary actions
• Appropriate for hazardous environments due to IP65 rating
• Utilised in electronic devices requiring illuminated indicators

Yes, the compact design allows for installation in limited areas.

Yes, the IP65 rating protects against dust and water.

Yes, it can operate at 3600 operations per hour.

Eaton formerly known as Moeller

Eaton RMQ 16mm Range

A range of control devices with an IP65 protection rating and conforming to IEC 947-5-1. Standard fixing aperture is 16mm. Behind panel depth (including terminals) is only 49mm. ,The devices can be butted together allowing a greater number of devices to be fitted into a smaller area compared to 22.5mm devices. ,One or two normally open or normally closed contacts, which are available separately in this range, can be fitted to each switch. Colour coded contacts 230V/4A, having low current voltage switching with a life expectancy of three million operations.
