Schmersal Elan Series Red Push Button Head, 22mm Cutout, IP69K
- RS庫存編號:
- 488-1156
- 製造零件編號:
- NDT RT
- 製造商:
- Schmersal
單價 个
HK$246.43
81 在3 工作日內發貨 (海外庫存)
47 在3 工作日內發貨 (海外庫存)
單位 | 每單位 |
---|---|
1 + | HK$246.43 |
- RS庫存編號:
- 488-1156
- 製造零件編號:
- NDT RT
- 製造商:
- Schmersal
Push buttons and illuminated buttons, hygiene-‑compliant
Features
Suitable for hygiene-compliant applications:
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry
Max. 2 switching elements per unit
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry
Max. 2 switching elements per unit
Push buttons
Suitable for hygiene-compliant applications:
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry
Illuminated push button
Please order switching and light elements separately

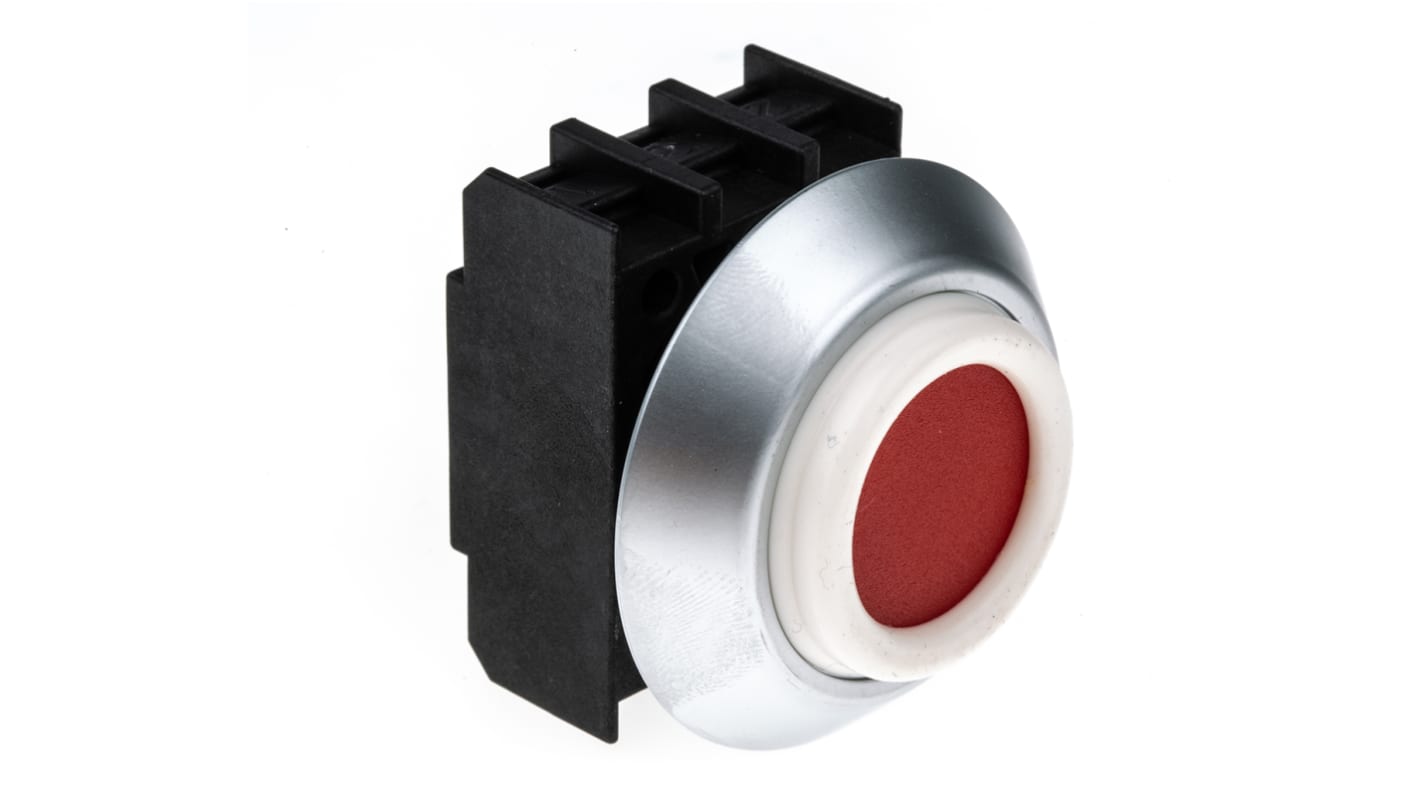

Schmersal Red Push-Button Head, Round, 22mm Cut-Out - Elan Series - NDT RT
Use this Schmersal non-latching push-button head to temporarily switch off your industrial machinery. It's designed for installation on the front of a machine panel using a mounting flange and has a low profile height of only 11mm to reduce bulk. Thanks to its IP69K (ingress protection) rating, it can withstand high-temperature and high-pressure water. This makes it a good choice for use in pharmaceutical or food production applications where frequent washdowns are necessary. The push-button is fully insulated to ensure electrical safety.
Features & Benefits
• ABS (acrylonitrile butadiene styrene) housing for resistance to impact and wear
• Light weight of 25g to reduce strain on your equipment
• Wide operating temperature range of -25°C to +80°C for use in both hot and cold environments
• Light weight of 25g to reduce strain on your equipment
• Wide operating temperature range of -25°C to +80°C for use in both hot and cold environments
Applications
• Food production
• Medical industry
• Pharmaceutical production
• Medical industry
• Pharmaceutical production
What are the advantages of a non-latching push-button?
Non-latching push-buttons like this one are suitable for use in applications where you need to only temporarily deactivate your machinery. It offers a higher level of user control as it needs you to push the button to cut power to the machine.
Attribute | Value |
---|---|
Series | Elan |
Cutout Diameter | 22mm |
Push Button Colour | Red |
Push Button Style | Round |
Push Button Material | ABS |
IP Rating | IP69K |
Push Button Diameter | 44.5mm |
Illuminated | No |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -25°C |
