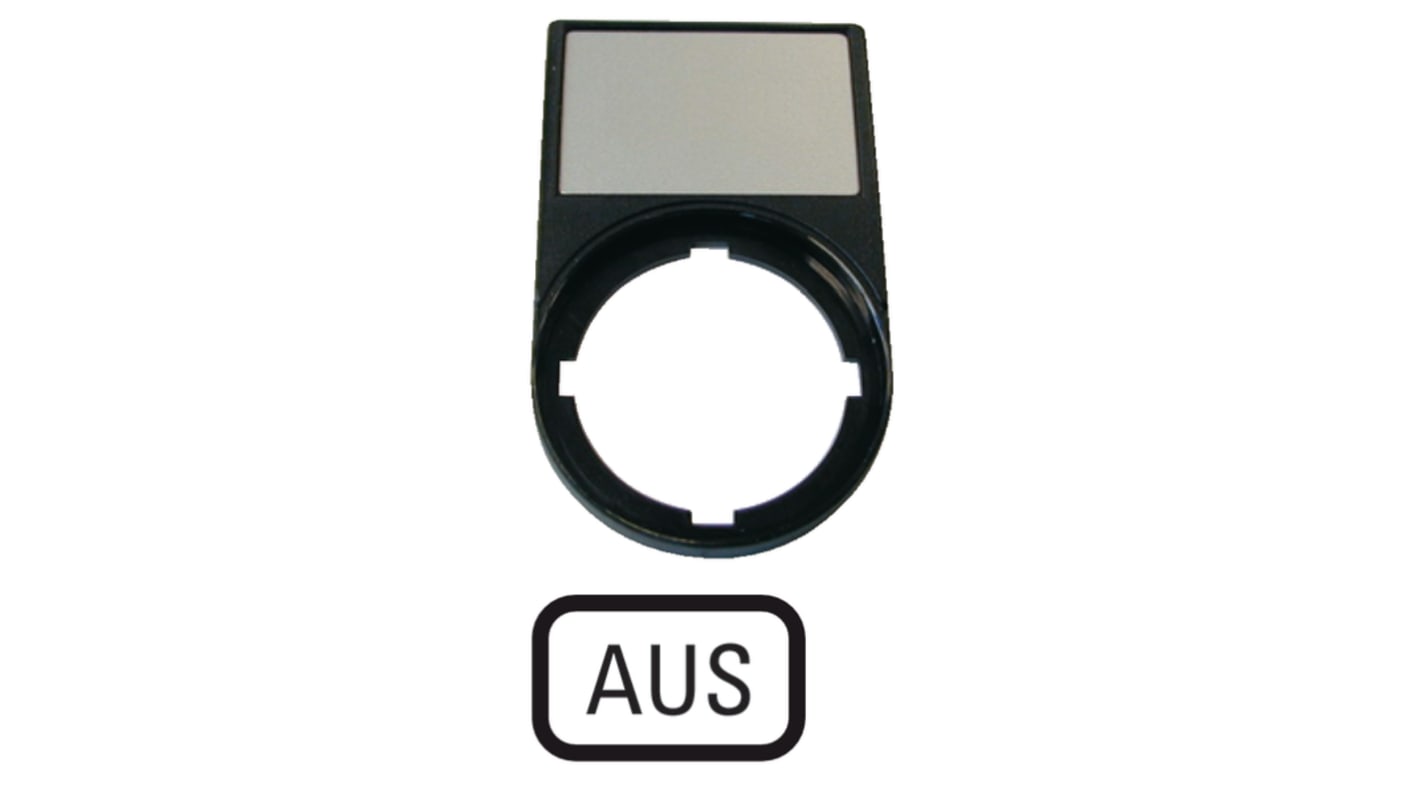

Eaton Legend Holder for Use with Push Buttons

This legend and legend holder kit provides labelling support for control panels and push‑button assemblies. It is designed to accommodate panel‑mounted push buttons with a 22mm opening and offers protection rated to IP66 for use in demanding ambient conditions between -25°C and 70°C. The kit is compatible with common industrial push‑button configurations and conforms to the referenced assembly standard IEC/EN 61439 for use within switchgear arrangements.

• 22mm opening diameter enables secure mounting in standard panels
• IP66 protection rating keeps legends resistant to dust and water
• Wide ambient range supports operation from -25°C to 70°C

• Used with control station push buttons in industrial panels
• Suitable for panel labelling in dust‑prone environments
• Can be used for retrofit identification on existing switchgear

An instruction leaflet and installation drawing are included for correct mounting.

ECAD and MCAD models Plus dimensional drawings are supplied for design integration.

Eaton formerly known as Moeller
