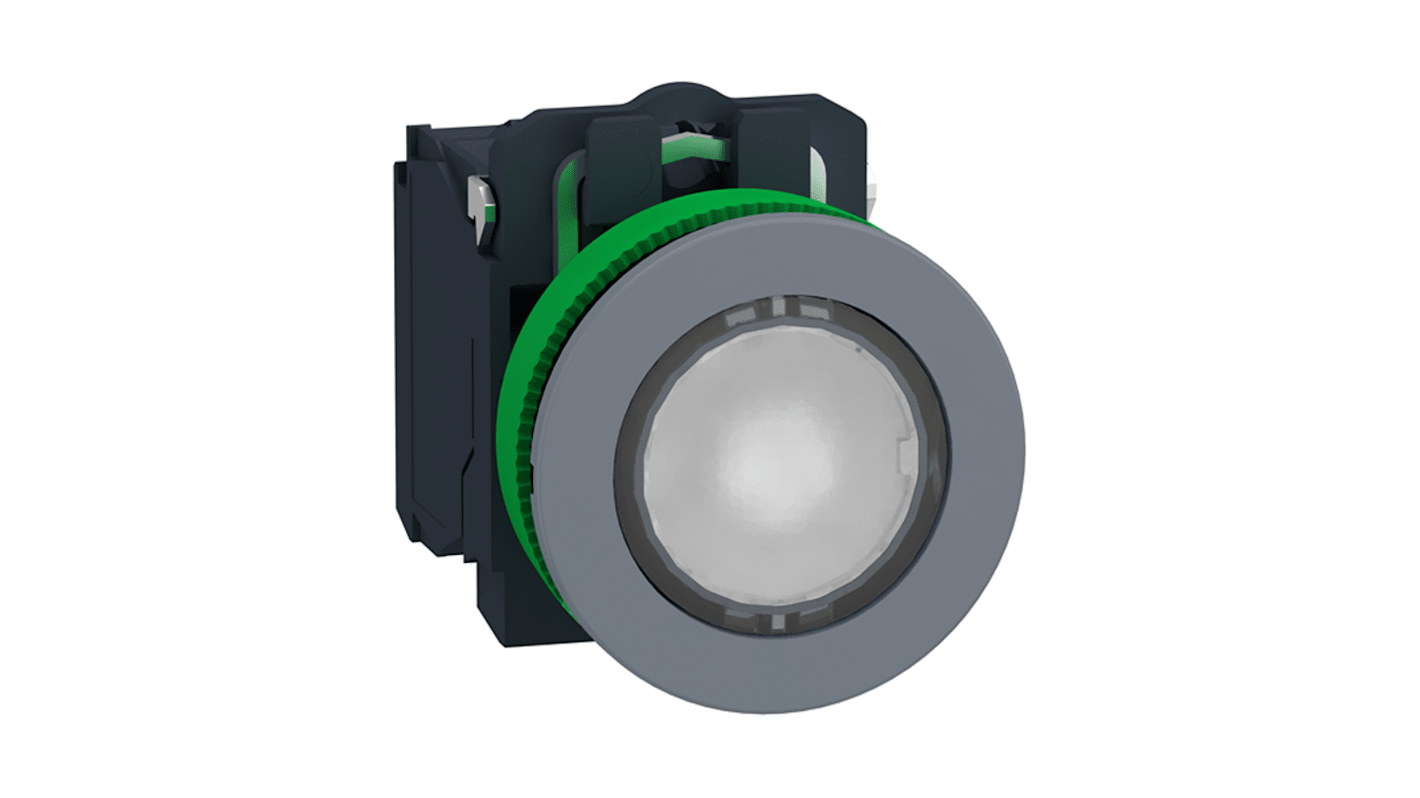

Schneider Electric Harmony XB5 Series Illuminated Illuminated Push Button, Spring Return, 30.5 mm Cutout, SPDT, IP66,
- RS庫存編號:
- 212-308
- 製造零件編號:
- XB5FW31M5C0
- 製造商:
- Schneider Electric
小計（1 件）*
HK$431.02
訂單超過 HK$250.00 免費送貨
製造商存貨
- 準備從 2026年6月22日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$431.02 |
* 參考價格
Better World
我們的 Better World 產品系列可讓您輕鬆選擇值得信賴的環保產品。 點擊此處了解更多。
- RS庫存編號:
- 212-308
- 製造零件編號:
- XB5FW31M5C0
- 製造商:
- Schneider Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schneider Electric | |
| Product Type | Illuminated Push Button | |
| Actuator Colour | White | |
| Switch Operation | Spring Return | |
| Illuminated | Yes | |
| Panel Cutout Size | 30.5 mm | |
| Series | Harmony XB5 | |
| Contact Configuration | SPDT | |
| Terminal Type | Screw | |
| IP Rating | IP66, IP67 | |
| Minimum Operating Temperature | -40°C | |
| Contact AC Voltage | 240V ac | |
| Maximum Operating Temperature | 70°C | |
| Width | 36.6mm | |
| Standards/Approvals | UL (RETURN)CSA IEC 609471UL JIS C80151IEC 6094754IEC 6094751CSA C. 14JIS C8011 | |
| Height | 42mm | |
| Length | 55mm | |
| Better World Claim | Repairable by the End User | |
| Better World Product | Yes | |
| 選取全部 | ||
|---|---|---|
品牌 Schneider Electric | ||
Product Type Illuminated Push Button | ||
Actuator Colour White | ||
Switch Operation Spring Return | ||
Illuminated Yes | ||
Panel Cutout Size 30.5 mm | ||
Series Harmony XB5 | ||
Contact Configuration SPDT | ||
Terminal Type Screw | ||
IP Rating IP66, IP67 | ||
Minimum Operating Temperature -40°C | ||
Contact AC Voltage 240V ac | ||
Maximum Operating Temperature 70°C | ||
Width 36.6mm | ||
Standards/Approvals UL (RETURN)CSA IEC 609471UL JIS C80151IEC 6094754IEC 6094751CSA C. 14JIS C8011 | ||
Height 42mm | ||
Length 55mm | ||
Better World Claim Repairable by the End User | ||
Better World Product Yes | ||
- COO (Country of Origin):
- FR
The Schneider Electric Pushbutton comes with antimicrobial characteristics. It has a plain lens and the source of light is an integral LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and white.
Flush mounted plastic circular blanking plug
Plastic bezal
IP66 and IP67 rated
IP69 and IP69K rated
IK03 rated
