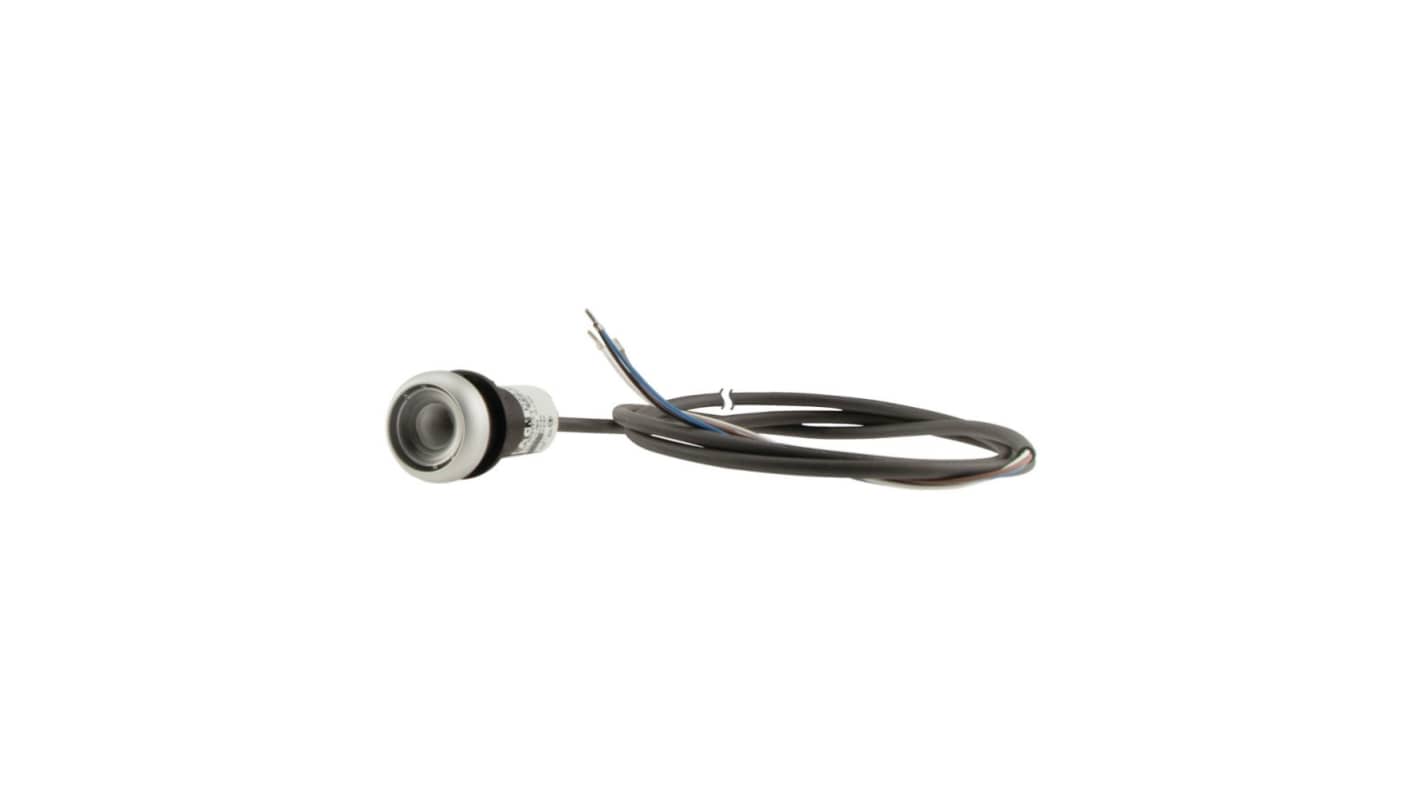

Eaton C22 Series Push Button Switch, Maintained, Cable, 22.5 mm Cutout, 2 NO, IP69K, IP67 800 V ac
- RS庫存編號:
- 244-558
- 製造零件編號:
- 185615 C22-DR-X-K20-P62
- 製造商:
- Eaton
小計（1 件）*
HK$450.15
添加 1 件 件可免費送貨
暫時缺貨
- 從 2026年4月23日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$450.15 |
* 參考價格
- RS庫存編號:
- 244-558
- 製造零件編號:
- 185615 C22-DR-X-K20-P62
- 製造商:
- Eaton
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Eaton | |
| Switch Operation | Maintained | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | C22 | |
| Panel Cutout Size | 22.5 mm | |
| Mount Type | Cable | |
| Contact Configuration | 2 NO | |
| Terminal Type | Cable | |
| IP Rating | IP69K, IP67 | |
| Actuator Style | Flat | |
| Contact AC Voltage | 800V ac | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Switch Configuration | Maintained | |
| Switch Contact Current | 4 A | |
| Length | 1060mm | |
| Width | 30 mm | |
| Height | 30mm | |
| Standards/Approvals | VDE 0660, UL File No.:E29184, UL Category Control No.:NKCR, UL 508, UL, IEC/EN 60947-5-1, CSA File No.:165628, CSA Class No.:321103, CSA-C22.2 No. 14-18 and No. 94.2-15, CSA, CE | |
| 選取全部 | ||
|---|---|---|
品牌 Eaton | ||
Switch Operation Maintained | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series C22 | ||
Panel Cutout Size 22.5 mm | ||
Mount Type Cable | ||
Contact Configuration 2 NO | ||
Terminal Type Cable | ||
IP Rating IP69K, IP67 | ||
Actuator Style Flat | ||
Contact AC Voltage 800V ac | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Switch Configuration Maintained | ||
Switch Contact Current 4 A | ||
Length 1060mm | ||
Width 30 mm | ||
Height 30mm | ||
Standards/Approvals VDE 0660, UL File No.:E29184, UL Category Control No.:NKCR, UL 508, UL, IEC/EN 60947-5-1, CSA File No.:165628, CSA Class No.:321103, CSA-C22.2 No. 14-18 and No. 94.2-15, CSA, CE | ||
豁免
- COO (Country of Origin):
- MA
The Eaton Moeller series C22 Pushbutton is an outstanding choice for a variety of control applications. Engineered with a classic flat design, this maintained pushbutton actuator is both stylish and functional, accommodating users who appreciate aesthetics as much as performance. Featuring a robust construction, it is equipped with a durable, non-terminated cable for versatile installation options. With an operating frequency of 3600 operations per hour, it promises reliability and longevity in demanding environments. The actuator's compact dimensions, alongside its impressive degree of protection rated at NEMA 12 and IP67/IP69K, ensure that it can withstand harsh conditions while continuing to deliver optimal performance. Designed to accommodate a wide range of applications, it truly embodies Eaton's commitment to quality and innovation.
Designed specifically for maintained operations, ensuring steady engagement
Integrated with a titanium bezel that enhances both durability and visual appeal
Fitted with a PUR cable for enhanced resilience and electrical safety
Capable of operating efficiently in temperatures ranging from -30 °C to 70 °C
Includes shock resistance features, protecting it from mechanical damage during operation
Offers a reliable switching function with two normally open contacts
Provides a significant operational reliability with a low failure rate of 1 in 17 million switching operations
Installation is made simple with accessible wiring diagrams and resources
