Eaton M22 Series Push Button Light Switch, Spring Return, 22.5 mm Cutout, IP66, IP67, IP69K

RS庫存編號:: 250-817
製造零件編號:: 216677 M22-DRH-G-X1
製造商:: Eaton

Eaton M22 Series Push Button Light Switch, Spring Return, 22.5 mm Cutout, IP66, IP67, IP69K

小計（1 包，共 5 件）*

HK$788.40

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年4月07日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

包	每包	每單位*
1 +	HK$788.40	HK$157.68

* 參考價格

RS庫存編號:: 250-817
製造零件編號:: 216677 M22-DRH-G-X1
製造商:: Eaton

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Eaton
	Product Type	Push Button Light Switch
	Switch Operation	Spring Return
	Actuator Colour	Green
	Illuminated	No
	Panel Cutout Size	22.5 mm
	Series	M22
	Mount Type	Flush
	IP Rating	IP66, IP67, IP69K
	Minimum Operating Temperature	-25°C
	Actuator Style	Push Button
	Maximum Operating Temperature	70°C
	Height	35mm
	Width	30 mm
	Length	30mm
	Standards/Approvals	UL Category Control No.: NKCR, CE, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, CSA UL, DNV GL LR, IEC/EN 60947, IEC/EN 60947-5, UL 508, UL File No.: E29184, VDE 0660

	選取全部
	品牌 Eaton
	Product Type Push Button Light Switch
	Switch Operation Spring Return
	Actuator Colour Green
	Illuminated No
	Panel Cutout Size 22.5 mm
	Series M22
	Mount Type Flush
	IP Rating IP66, IP67, IP69K
	Minimum Operating Temperature -25°C
	Actuator Style Push Button
	Maximum Operating Temperature 70°C
	Height 35mm
	Width 30 mm
	Length 30mm
	Standards/Approvals UL Category Control No.: NKCR, CE, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, CSA UL, DNV GL LR, IEC/EN 60947, IEC/EN 60947-5, UL 508, UL File No.: E29184, VDE 0660

COO (Country of Origin):: DE

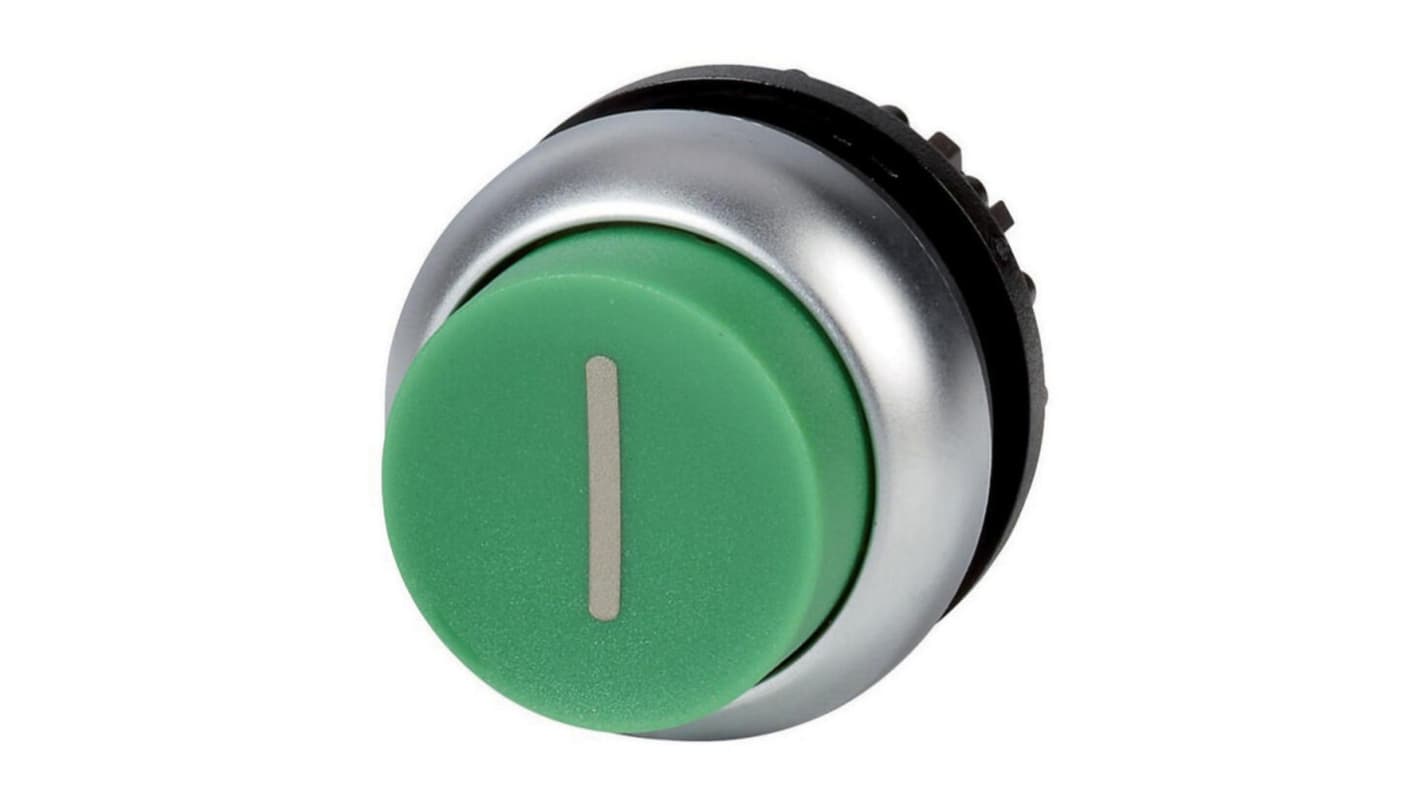

The Eaton Pushbutton represents a sophisticated solution designed for both style and functionality in control applications. This product features an elegant titanium bezel and a vibrant green inscribed button, making it not only a robust choice for operation but also an attractive component in any setup. With its extended and maintained design, this pushbutton is ideal for a range of demanding environments, ensuring reliability and ease of use. Its excellent degree of protection, including IP66, IP67, and IP69K ratings, underscores its ability to withstand harsh conditions, making it suitable for use across various industrial settings.

Inscription on the button ensures clear identification during use

Robust degree of protection against environmental conditions

Extended design for increased operational area and user comfort

Mechanical lifespan of up to one million operations for long term use

Eaton M22 Series Push Button Light Switch, Spring Return, 22.5 mm Cutout, IP66, IP67, IP69K
