ITW Switches 49-59 Series Push Button Switch, Momentary, Panel, 16 mm Cutout, SPST, Clear LED, IP67, 50 V 250 V

查看所有Push Button Switches
可享批量折扣

小計（1 件）*

HK$156.50

Add to Basket
選擇或輸入數量
暫時缺貨
  • 3,500 件從 2026年3月03日 起裝運發貨
  • 加上 1,500 件從 2026年3月31日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 9HK$156.50
10 - 49HK$151.70
50 - 99HK$147.10
100 - 249HK$143.90
250 +HK$140.80

* 參考價格

RS庫存編號:
321-789
Distrelec 貨號:
304-21-762
製造零件編號:
49-59111
製造商:
ITW Switches
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

ITW Switches

Switch Operation

Momentary

Actuator Colour

Black

Product Type

Push Button Switch

Illuminated

No

Series

49-59

Panel Cutout Size

16 mm

Mount Type

Panel

Contact Configuration

SPST

Terminal Type

Wire

LED Colour

Clear

IP Rating

IP67

Contact AC Voltage

250V

Minimum Operating Temperature

-35°C

Contact DC Voltage

50V

Actuator Style

Round

Switch Configuration

On-Off

Maximum Operating Temperature

85°C

Switch Contact Current

10 A

Standards/Approvals

UL, CSA

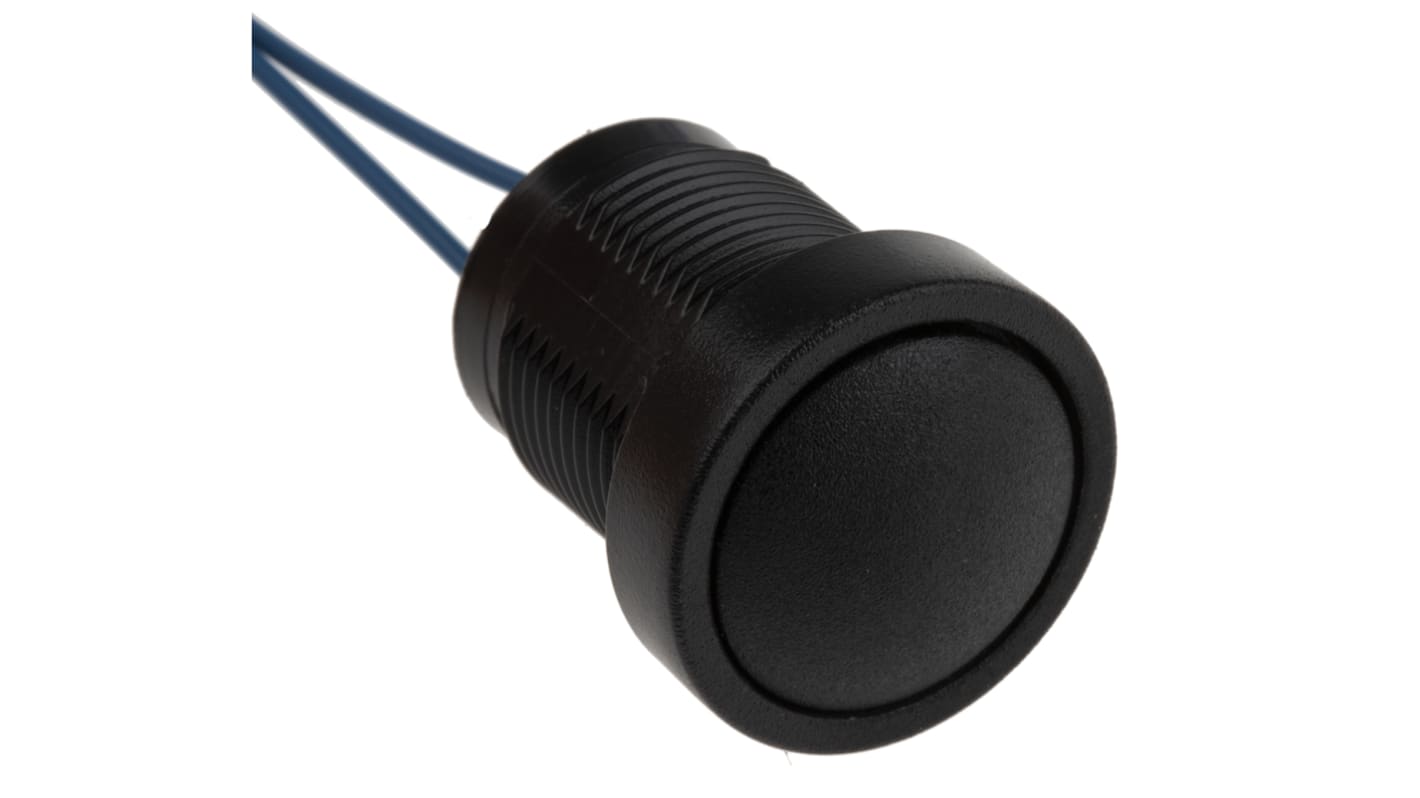

This 49-59111 is a momentary, panel mount push button switch.

Features and Benefits


• Round bezel button.

• 500mm leads which are PVC insulated and have plain unstripped ends.

• Black button.

• Non-illuminated version.

• Momentary push button switch only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.

Push-button Switches, Min Sealed, Flying Leads


These 49-59 series are a range of momentary action push button switches from ITW, that can be used across a number of industries and applications such as:-

• Communications

• Data Processing

• Military Environments

• Instrumentation

• Transport Controls

• Environmentally demanding keypads

Features and Benefits


• Fully sealed up to IP67 with insulated flying leads, 500mm in length. (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes).

• Panel sealed IP67 version which is terminated by a series 16 microswitch. (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes).

• Switches fit the industrial standard, a diameter of 16mm panel cut out.

• Can be used over a wide temperature range.

• Series are available as either round, round with illumination (flying leads only) or square bezels, all with 6 button custom colours.

• The body and button are made from polybutylene terephthalate (PBT) a hard wearing thermoplastic engineered polymer that’s widely used as an insulator across the electronics industry.
