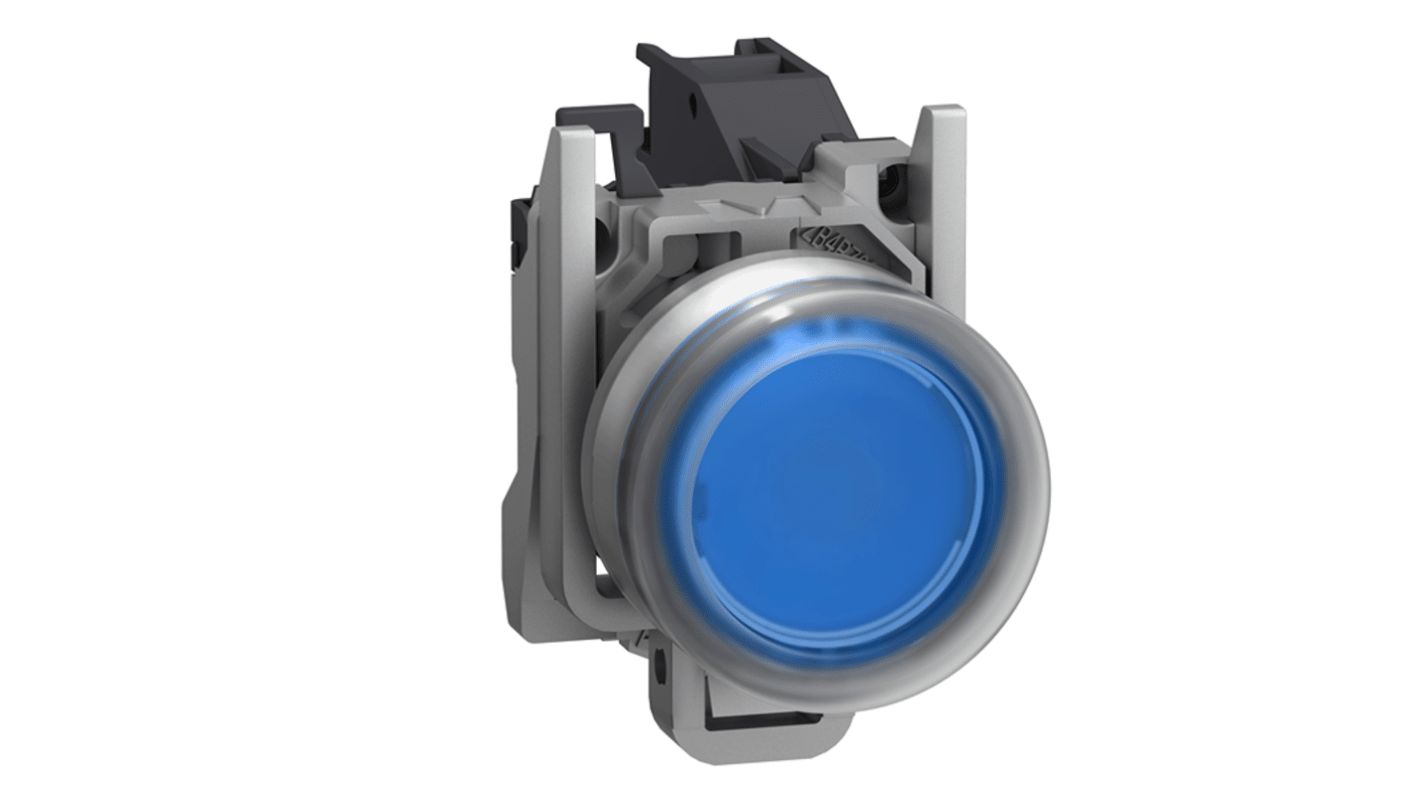

Schneider Electric XB4B Series Push Button Switch, Spring Return, Through Hole, 22 mm Cutout, 1 NO, Blue LED, IP66, 415

RS庫存編號:: 341-169
製造零件編號:: XB4BP681GEX
製造商:: Schneider Electric

Schneider Electric XB4B Series Push Button Switch, Spring Return, Through Hole, 22 mm Cutout, 1 NO, Blue LED, IP66, 415

小計（1 件）*

HK$1,188.44

訂單超過 HK$250.00 免費送貨

製造商存貨

準備從 2026年5月28日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$1,188.44

* 參考價格

RS庫存編號:: 341-169
製造零件編號:: XB4BP681GEX
製造商:: Schneider Electric

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Schneider Electric
	Switch Operation	Spring Return
	Product Type	Push Button Switch
	Actuator Colour	Blue
	Illuminated	No
	Panel Cutout Size	22 mm
	Series	XB4B
	Mount Type	Through Hole
	Contact Configuration	1 NO
	Terminal Type	Screw
	LED Colour	Blue
	IP Rating	IP66
	Contact DC Voltage	415V dc
	Contact AC Voltage	415V ac
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	75°C
	Height	30mm
	Switch Contact Current	10A
	Width	46.2mm
	Length	72mm
	Standards/Approvals	UL 60079-1, ANSI/ISA 12.12.01, CSA C22.2 Nr. 213, EN/IEC 60079-1:2009, IEC 60079-0:2009, IEC 60079-31:2009, IEC 60079-7:2009, UL 60079-0, UL 60079-31
	Legend	Blank

	選取全部
	品牌 Schneider Electric
	Switch Operation Spring Return
	Product Type Push Button Switch
	Actuator Colour Blue
	Illuminated No
	Panel Cutout Size 22 mm
	Series XB4B
	Mount Type Through Hole
	Contact Configuration 1 NO
	Terminal Type Screw
	LED Colour Blue
	IP Rating IP66
	Contact DC Voltage 415V dc
	Contact AC Voltage 415V ac
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 75°C
	Height 30mm
	Switch Contact Current 10A
	Width 46.2mm
	Length 72mm
	Standards/Approvals UL 60079-1, ANSI/ISA 12.12.01, CSA C22.2 Nr. 213, EN/IEC 60079-1:2009, IEC 60079-0:2009, IEC 60079-31:2009, IEC 60079-7:2009, UL 60079-0, UL 60079-31
	Legend Blank

登入下載 CAD 模型

Schneider Electric Harmony Series Push Button Switch, 22mm Panel Cut Out Diameter, 10A Current Rating - XB4BP681GEX

This push button switch is an essential component in automation and electrical systems, designed for reliable operation in various applications. With a panel cut-out diameter of 22mm, this round push button from the Harmony series features a blue push button colour that visually signals its status. Engineered for through-hole mounting, its robust construction ensures durability in demanding conditions, supporting an operating temperature range between -20°C to +75°C while being rated at 415V.

Features & Benefits

• Spring return mechanism ensures quick reset after activation
• IP66 rating provides excellent protection against dust and water
• Capable of handling a contact current rating of 10A
• Silver alloy contact material ensures long-lasting performance

Applications

• Utilised in industrial control panels for machinery
• Suitable for use in control circuits for conveyors
• Ideal for push buttons in HVAC system control
• Effective in equipment requiring manual operation
• Used in safety systems for emergency stop functions

What is the significance of the IP66 rating?

The IP66 rating indicates that the switch is dust-tight and can withstand strong water jets, making it suitable for outdoor or harsh indoor environments where moisture and dust are concerns.

How does the switch respond to environmental changes?

This switch maintains functionality across a temperature range of -20°C to +75°C, ensuring reliable performance in various climates and conditions, from cold industrial locations to hot workshops.

What wiring options does this switch support?

With screw clamp terminals, it allows for secure and reliable connections, enhancing installation efficiency and ensuring that wires remain firmly attached even during vibration or movement.

Can the switch accommodate high voltage surges?

Yes, it is rated for a voltage of 415V, making it suitable for industrial applications where high voltage surges may be present, providing both safety and efficiency in operational use.

What type of configurations is available for electrical connections?

This switch features a 1NO contact configuration, allowing it to be paired easily with other components to complete electrical circuits in automation systems.
