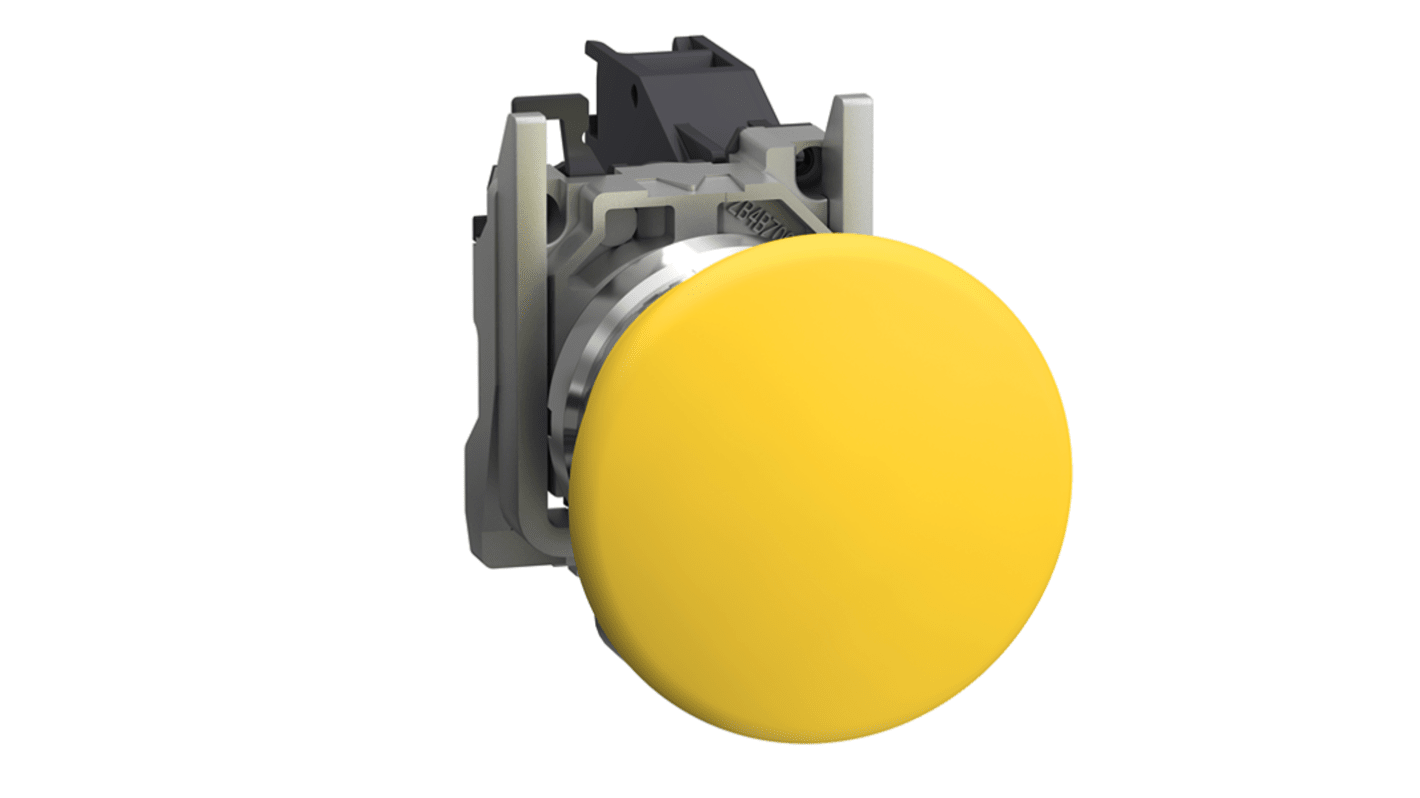

Schneider Electric Harmony XB4 Series Push Button Switch, Spring Return, Through Hole, 22 mm Cutout, 1 NO, Yellow LED,

RS庫存編號:: 345-301
製造零件編號:: XB4BC51GEX
製造商:: Schneider Electric

Schneider Electric Harmony XB4 Series Push Button Switch, Spring Return, Through Hole, 22 mm Cutout, 1 NO, Yellow LED,

小計（1 件）*

HK$959.74

訂單超過 HK$250.00 免費送貨

製造商存貨

準備從 2026年6月26日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$959.74

* 參考價格

RS庫存編號:: 345-301
製造零件編號:: XB4BC51GEX
製造商:: Schneider Electric

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Schneider Electric
	Switch Operation	Spring Return
	Actuator Colour	Yellow
	Product Type	Push Button Switch
	Illuminated	No
	Series	Harmony XB4
	Panel Cutout Size	22 mm
	Mount Type	Through Hole
	Contact Configuration	1 NO
	Terminal Type	Screw
	LED Colour	Yellow
	IP Rating	IP65
	Contact AC Voltage	415V ac
	Contact DC Voltage	415V dc
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	75°C
	Height	30mm
	Switch Contact Current	10A
	Width	46.2mm
	Standards/Approvals	CSA C22.2 Nr. 213, EN/IEC 60079-1:2009, IEC 60079-0:2009, ANSI/ISA 12.12.01, IEC 60079-31:2009, IEC 60079-7:2009, UL 60079-0, UL 60079-1, UL 60079-31
	Length	96.5mm

	選取全部
	品牌 Schneider Electric
	Switch Operation Spring Return
	Actuator Colour Yellow
	Product Type Push Button Switch
	Illuminated No
	Series Harmony XB4
	Panel Cutout Size 22 mm
	Mount Type Through Hole
	Contact Configuration 1 NO
	Terminal Type Screw
	LED Colour Yellow
	IP Rating IP65
	Contact AC Voltage 415V ac
	Contact DC Voltage 415V dc
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 75°C
	Height 30mm
	Switch Contact Current 10A
	Width 46.2mm
	Standards/Approvals CSA C22.2 Nr. 213, EN/IEC 60079-1:2009, IEC 60079-0:2009, ANSI/ISA 12.12.01, IEC 60079-31:2009, IEC 60079-7:2009, UL 60079-0, UL 60079-1, UL 60079-31
	Length 96.5mm

登入下載 CAD 模型

COO (Country of Origin):: FR

Schneider Electric Harmony Series Push Button Switch, 22mm Panel Cut Out Diameter, 10A Contact Current Rating - XB4BC51GEX

This push button switch is a versatile component designed for a range of industrial applications. With smooth operation facilitated by its spring return mechanism, this yellow mushroom push button features a panel cut-out diameter of 22mm. Constructed to endure harsh environments, it boasts an IP65 rating, making it suitable for areas requiring protection from dust and ingress of water.

Features & Benefits

• Spring return mechanism ensures instant reset functionality
• IP65 rating enhances protection against moisture and contaminants
• 1NO contact configuration allows for straightforward circuit integration
• Robust design accommodates operating temperatures from -20°C to +75°C

Applications

• Ideal for control panels in manufacturing equipment
• Utilised in automation systems requiring reliable push button control
• Suitable for electrical cabinets needing a Durable switching solution
• Effective in mechanical machinery for operational safety

What makes the push button suitable for long-term use in industrial settings?

The use of silver alloy contacts enhances durability and ensures longevity under high-frequency operations. Its robust design is conducive to long-lasting performance, capable of withstanding the rigours of industrial environments.

How does the IP65 rating benefit operating conditions?

This rating signifies that the switch is protected against dust ingress and water jets, allowing it to function effectively in environments where moisture and contaminants are present. Such protection prevents operational failures, ensuring reliability.

What are the implications of a spring return operation in practical use?

The spring return mechanism automatically resets the button after activation, promoting immediate off-state conditions. This feature is critical in safety applications where the immediate halting of operations is necessary once the button is released.

What voltage range is suitable for optimal performance with this switch?

With a maximum voltage rating of 415V, it is designed for high-capacity electrical systems, ensuring efficient operation without the risk of electrical overloads.
