Schneider Electric Odace 2011 Series Push Button Switch, 4G, 3G, 2G, IP21D 250 V ac
- RS庫存編號:
- 357-841
- 製造零件編號:
- S520276
- 製造商:
- Schneider Electric
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 357-841
- 製造零件編號:
- S520276
- 製造商:
- Schneider Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schneider Electric | |
| Actuator Colour | White | |
| Product Type | Push Button Switch | |
| Switch Operation | 4G, 3G, 2G | |
| Illuminated | No | |
| Series | Odace 2011 | |
| Terminal Type | Plug-In | |
| IP Rating | IP21D | |
| Actuator Style | Push Button | |
| Minimum Operating Temperature | 5°C | |
| Contact AC Voltage | 250V ac | |
| Maximum Operating Temperature | 35°C | |
| Switch Configuration | 2 Way | |
| Switch Contact Current | 10A | |
| Standards/Approvals | EN 60669-1, 2006/95/EEC | |
| Width | 71mm | |
| Height | 71mm | |
| 選取全部 | ||
|---|---|---|
品牌 Schneider Electric | ||
Actuator Colour White | ||
Product Type Push Button Switch | ||
Switch Operation 4G, 3G, 2G | ||
Illuminated No | ||
Series Odace 2011 | ||
Terminal Type Plug-In | ||
IP Rating IP21D | ||
Actuator Style Push Button | ||
Minimum Operating Temperature 5°C | ||
Contact AC Voltage 250V ac | ||
Maximum Operating Temperature 35°C | ||
Switch Configuration 2 Way | ||
Switch Contact Current 10A | ||
Standards/Approvals EN 60669-1, 2006/95/EEC | ||
Width 71mm | ||
Height 71mm | ||
- COO (Country of Origin):
- ES

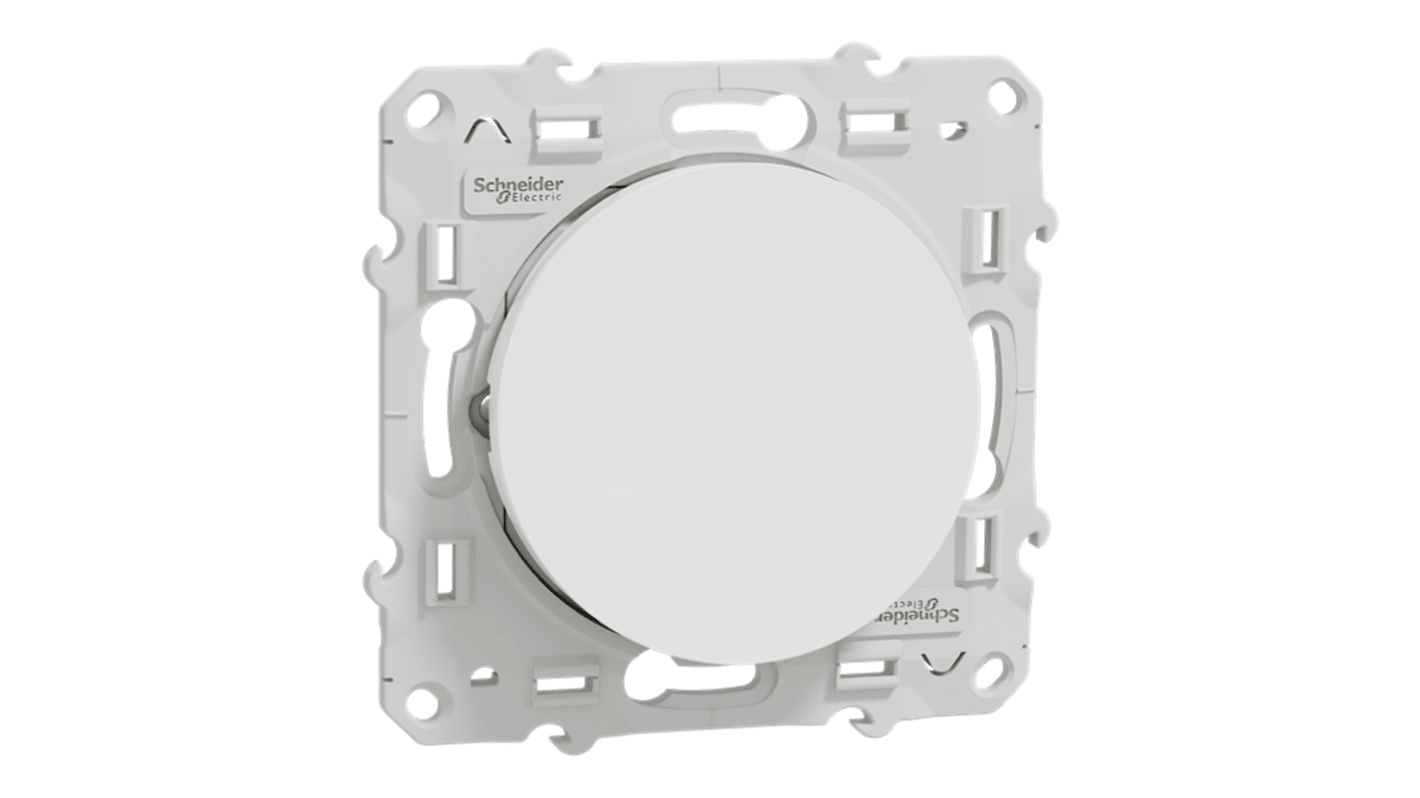

The Schneider Electric push-button is a mechanism with a fixing frame, designed for light control. It features flush mounting and operates with electromechanical technology. The device includes a single rocker and a push-button actuator. It is also equipped with an impulse relay for efficient control.
Fixing mode by screws
Resistant to diluted quaternary ammonium
Resistant to diluted bleach
Resistant to diluted ammonia
Resistant to soapy water
Resistant to crystal cleaner
