EAO Series 82 Series Push Button Switch, Momentary, Flush Mount, 22mm Cutout, SPST, SPST, IP65, IP67
- RS庫存編號:
- 427-588
- 製造零件編號:
- 82-6751.1000.B015
- 製造商:
- EAO
暫時無法供應
抱歉，我們不知道何時會到貨。
- RS庫存編號:
- 427-588
- 製造零件編號:
- 82-6751.1000.B015
- 製造商:
- EAO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | EAO | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Panel Cut Out Diameter | 22mm | |
| Series | Series 82 | |
| Mounting Type | Flush Mount | |
| Push Button Colour | Red | |
| Contact Configuration | SPST, SPST | |
| IP Rating | IP65, IP67 | |
| 選取全部 | ||
|---|---|---|
品牌 EAO | ||
Switch Operation Momentary | ||
Illuminated No | ||
Panel Cut Out Diameter 22mm | ||
Series Series 82 | ||
Mounting Type Flush Mount | ||
Push Button Colour Red | ||
Contact Configuration SPST, SPST | ||
IP Rating IP65, IP67 | ||
豁免
- COO (Country of Origin):
- CH

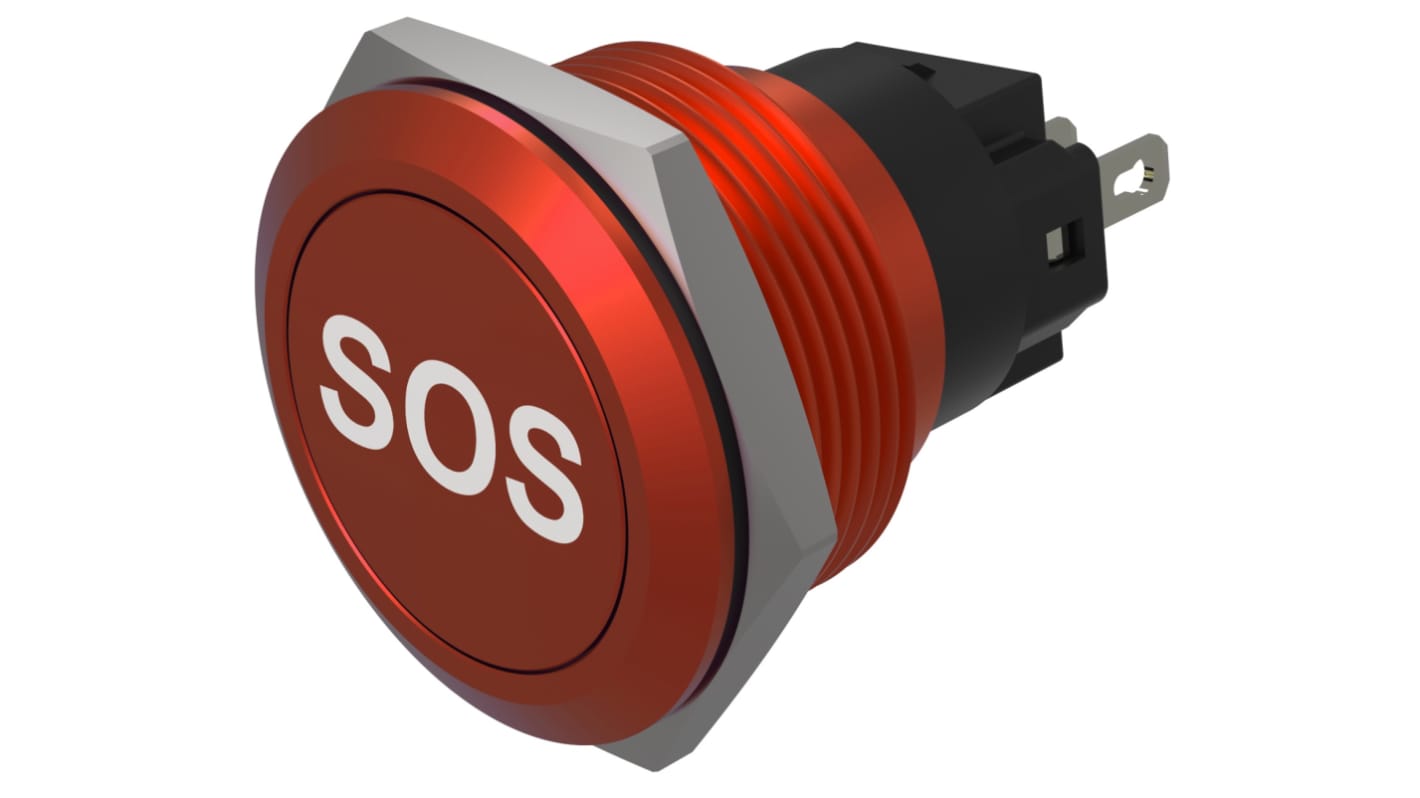

The EAO push button with momentary action and vandal-resistant is impact-resistant to IK10 and offers front protection up to IP67. Gold contacts are available for low voltages and currents, with optional illumination and laser markings. It provides excellent tactile feedback and boasts a long service life of over 1 million cycles of operation.
Stainless steel, anodized aluminum, or brass colored switches
Mounting 22m
Mounting 22m
