RS PRO Illuminated Push Button Switch, Latching, Panel, 19.2 mm Cutout, SPDT, Green LED, IP67, 250 V 250 V ac

RS庫存編號:: 111-3774
製造商:: RS PRO

RS PRO Illuminated Push Button Switch, Latching, Panel, 19.2 mm Cutout, SPDT, Green LED, IP67, 250 V 250 V ac

可享批量折扣

查看批量定價選項

小計（1 件）*

HK$118.40

訂單超過 HK$250.00 免費送貨

有庫存

加上 47 件從 2026年9月28日起發貨
加上 120 件從 2026年10月06日起發貨
加上 120 件從 2027年1月26日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 9	HK$118.40
10 - 24	HK$115.60
25 - 49	HK$112.80
50 - 249	HK$110.10
250 +	HK$90.60

* 參考價格

Sponsored

RS庫存編號:: 111-3774
製造商:: RS PRO

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	RS PRO
	Actuator Colour	Silver
	Switch Operation	Latching
	Product Type	Push Button Switch
	Illuminated	Yes
	Panel Cutout Size	19.2 mm
	Mount Type	Panel
	Contact Configuration	SPDT
	LED Colour	Green
	Terminal Type	Solder Pin
	IP Rating	IP67
	Actuator Style	Round
	Contact DC Voltage	250V
	Minimum Operating Temperature	-20°C
	Contact AC Voltage	250V ac
	Maximum Operating Temperature	55°C
	Switch Contact Current	5A
	Standards/Approvals	cULus Recognized E 187490, IK10

	選取全部
	品牌 RS PRO
	Actuator Colour Silver
	Switch Operation Latching
	Product Type Push Button Switch
	Illuminated Yes
	Panel Cutout Size 19.2 mm
	Mount Type Panel
	Contact Configuration SPDT
	LED Colour Green
	Terminal Type Solder Pin
	IP Rating IP67
	Actuator Style Round
	Contact DC Voltage 250V
	Minimum Operating Temperature -20°C
	Contact AC Voltage 250V ac
	Maximum Operating Temperature 55°C
	Switch Contact Current 5A
	Standards/Approvals cULus Recognized E 187490, IK10

登入下載 CAD 模型

COO (Country of Origin):: CN

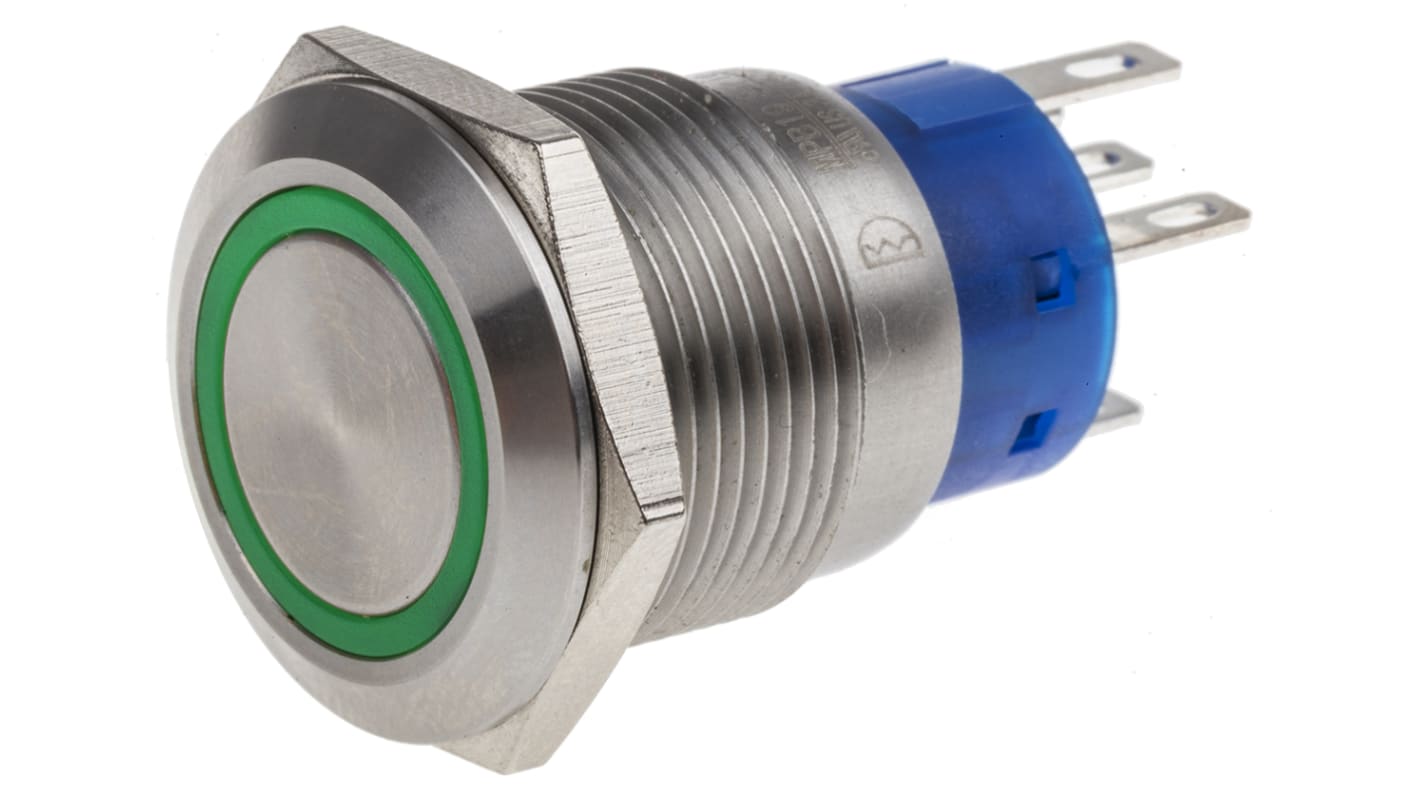

RS PRO Single Pole Double Throw (SPDT) Latching Green LED Push Button Switch, IP67, 19.2 mm (Dia.), Panel Mounting, 250 V AC

This single pole double throw (SPDT) latching green LED push button switch from RS PRO allows you to control the flow of electricity through a circuit. It's made for industrial settings from food production lines to scientific labs.

For easy installation, you can solder this product into place or panel mount it. Its compact design means it fits into smaller spaces. The contacts are made from copper to ensure good connectivity and no loss of power while you're working.

The component is IP67 rated, which means it's safe to use in dusty environments. You can also submerge it in up to one metre of water for half an hour. It's found in communications technology, machinery and medical equipment.

Features and Benefits

• Round, flat silver actuator

• Natural case colour

• Contact AC voltage rating of 250 V AC

• Single Pole Double Throw (SPDT) contact configuration

• Contact current rating of 5 A

• Copper contact material

• Illuminated

• Illumination voltage of 24 V

• IP (Ingress Protection) rating of IP67

• Green LED colour

• Panel mounting type

• Panel cut out size of 19.2 mm (diameter)

• Standards met include cULus Recognized E 187490, IK10

• Latching switch operation

• Solder pin terminal type
