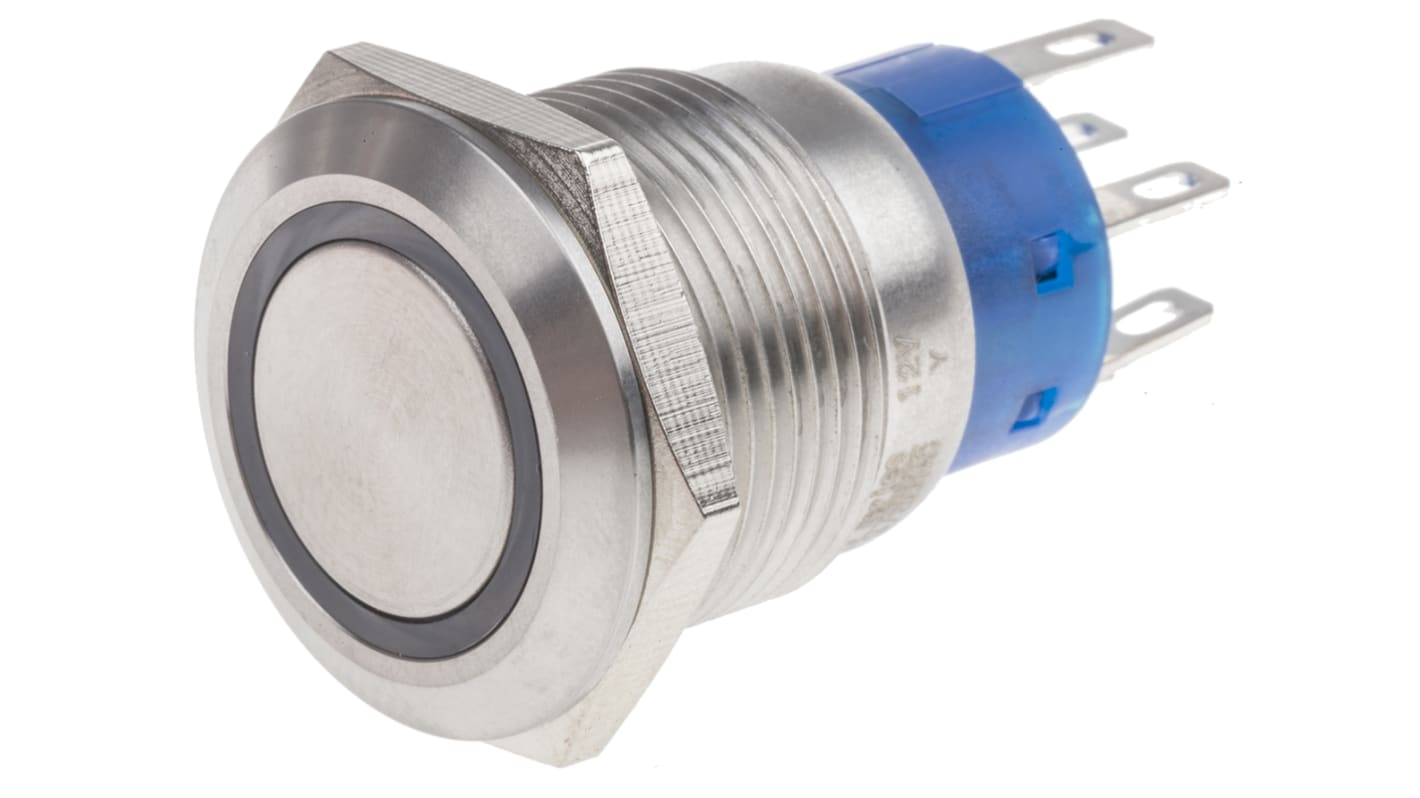

RS PRO Illuminated Push Button Switch, Latching, Panel, 19.2 mm Cutout, DPDT, Yellow LED, IP67, 250 V 250 V ac
- RS庫存編號:
- 111-5780
- Distrelec 貨號:
- 304-17-914
- 製造商:
- RS PRO
享受批量購買折扣
額外添加10件可節省HK$38.00
查看批量定價選項小計(1 件)*
HK$127.90
訂單超過 HK$250.00 免費送貨
有庫存
- 892 件準備從其他地點送貨
- 加上 39 件從 2026年11月20日 起發貨
- 加上 120 件從 2027年3月23日 起發貨
**需要更多嗎?**輸入您需要的數量,然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 節省 |
|---|---|---|
| 1 - 9 | HK$127.90 | - |
| 10 - 24 | HK$124.10 | HK$38.00 |
| 25 - 49 | HK$120.30 | HK$190.00 |
| 50 - 249 | HK$117.70 | HK$510.00 |
| 250 + | HK$96.80 | HK$7,775.00 |
* 參考價格
- RS庫存編號:
- 111-5780
- Distrelec 貨號:
- 304-17-914
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Actuator Colour | Silver | |
| Product Type | Push Button Switch | |
| Switch Operation | Latching | |
| Illuminated | Yes | |
| Panel Cutout Size | 19.2 mm | |
| Mount Type | Panel | |
| Contact Configuration | DPDT | |
| Terminal Type | Solder Pin | |
| LED Colour | Yellow | |
| IP Rating | IP67 | |
| Actuator Style | Round | |
| Contact DC Voltage | 250V | |
| Minimum Operating Temperature | -20°C | |
| Contact AC Voltage | 250V ac | |
| Maximum Operating Temperature | 55°C | |
| Switch Configuration | 2 NO/2 NC | |
| Switch Contact Current | 5A | |
| Standards/Approvals | cULus Recognized E 187490, ENEC 18, IK10 | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Actuator Colour Silver | ||
Product Type Push Button Switch | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Panel Cutout Size 19.2 mm | ||
Mount Type Panel | ||
Contact Configuration DPDT | ||
Terminal Type Solder Pin | ||
LED Colour Yellow | ||
IP Rating IP67 | ||
Actuator Style Round | ||
Contact DC Voltage 250V | ||
Minimum Operating Temperature -20°C | ||
Contact AC Voltage 250V ac | ||
Maximum Operating Temperature 55°C | ||
Switch Configuration 2 NO/2 NC | ||
Switch Contact Current 5A | ||
Standards/Approvals cULus Recognized E 187490, ENEC 18, IK10 | ||
- COO (Country of Origin):
- CN
RS PRO Double Pole Double Throw (DPDT) Latching Yellow LED Push Button Switch, IP67, 19.2 mm (Dia.), Panel Mounting, 250 V AC
This DPDT (Double Pole Double Throw) RS PRO push button switch is able to manage two different circuits simultaneously, controlling four separate output terminals. The switch is straightforward to use as the latching push button keeps the switch in the state you want until the button is pressed again.
The yellow LED ring makes it easy to see at a glance whether the switch is currently on or off. The compact, panel-mounting design allows for it to be used for applications with limited space where conventional switches wouldn't be suitable.
The switch has silver-plated copper contacts for a reliable connection. It's often used in medical or communications equipment or industrial control gears.
Features and Benefits
• Silver actuator colour
• Round actuator shape
• Flat actuator type
• Natural case colour
• Contact AC voltage rating of 250 V
• Double Pole Double Throw (DPDT) contact configuration
• Contact current rating of 5 A
• Copper contact material
• Illuminated
• Illumination voltage of 12 V
• IP (Ingress Protection) rating of IP67
• Yellow led colour
• Panel mounting type
• Panel cut out diameter of 19.2 mm
• Standards met include cULus, E 187490, ENEC 18, IK10
• Latching switch operation
• Solder pin terminal type
• Voltage rating of 250 V AC
