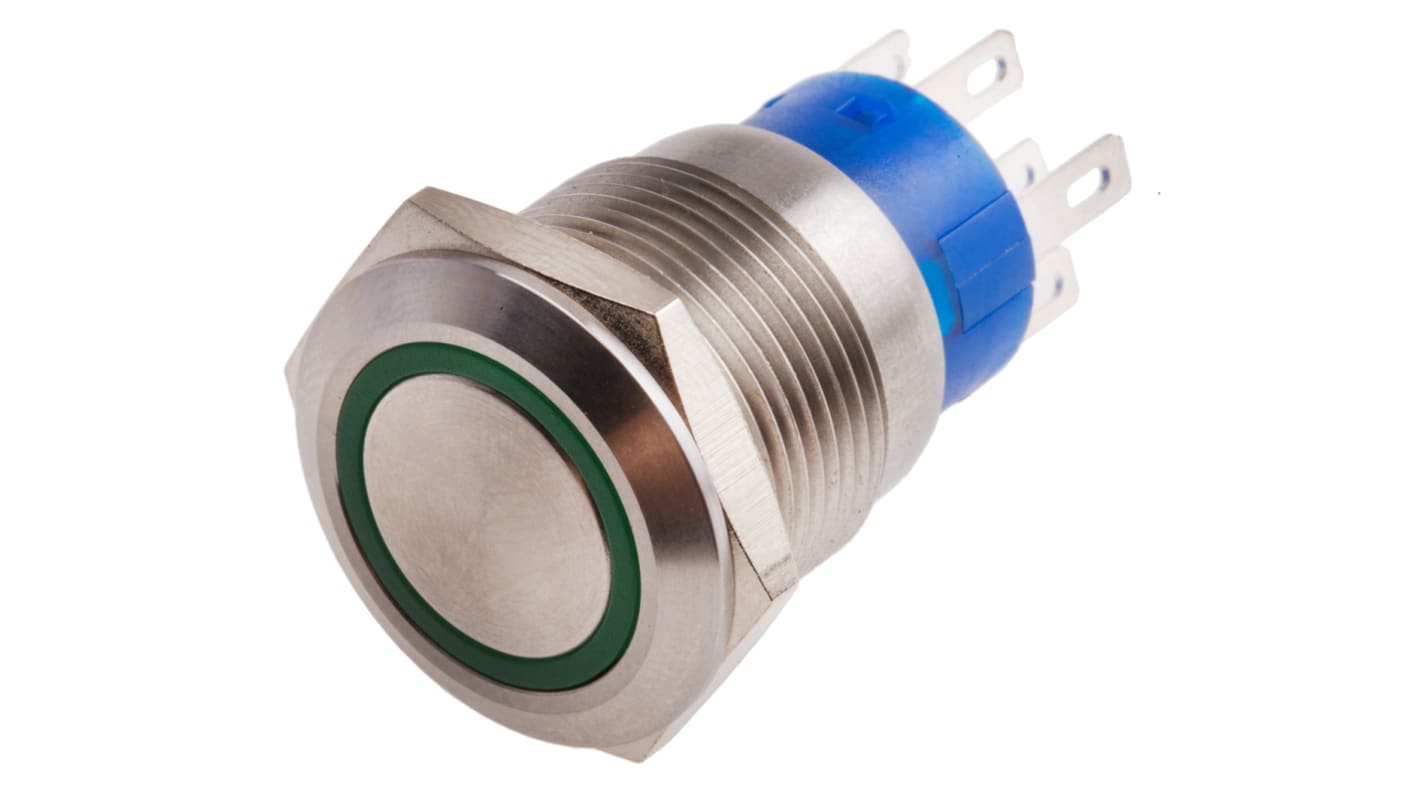

RS PRO Illuminated Push Button Switch, Momentary, Panel, 19.2 mm Cutout, DPDT, Green LED, IP67, 250 V 250 V ac
- RS庫存編號:
- 111-5781
- 製造商:
- RS PRO
享受批量購買折扣
額外添加10件可節省HK$34.00
查看批量定價選項小計（1 件）*
HK$142.10
訂單超過 HK$250.00 免費送貨
有庫存
- 148 件準備從其他地點送貨
- 加上 120 件從 2027年1月05日 起發貨
- 加上 120 件從 2027年1月26日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 節省 |
|---|---|---|
| 1 - 9 | HK$142.10 | - |
| 10 - 24 | HK$138.70 | HK$34.00 |
| 25 - 49 | HK$135.40 | HK$167.50 |
| 50 - 249 | HK$132.20 | HK$495.00 |
| 250 + | HK$108.80 | HK$8,325.00 |
* 參考價格
- RS庫存編號:
- 111-5781
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Actuator Colour | Silver | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Panel Cutout Size | 19.2 mm | |
| Mount Type | Panel | |
| Contact Configuration | DPDT | |
| Terminal Type | Solder Pin | |
| LED Colour | Green | |
| IP Rating | IP67 | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Round | |
| Minimum Operating Temperature | -20°C | |
| Contact DC Voltage | 250V | |
| Maximum Operating Temperature | 55°C | |
| Switch Contact Current | 5A | |
| Standards/Approvals | cULus Recognized E 187490, ENEC 18, IK10 | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Actuator Colour Silver | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Panel Cutout Size 19.2 mm | ||
Mount Type Panel | ||
Contact Configuration DPDT | ||
Terminal Type Solder Pin | ||
LED Colour Green | ||
IP Rating IP67 | ||
Contact AC Voltage 250V ac | ||
Actuator Style Round | ||
Minimum Operating Temperature -20°C | ||
Contact DC Voltage 250V | ||
Maximum Operating Temperature 55°C | ||
Switch Contact Current 5A | ||
Standards/Approvals cULus Recognized E 187490, ENEC 18, IK10 | ||
- COO (Country of Origin):
- CN
RS PRO Double Pole Double Throw (DPDT) Momentary Green LED Push Button Switch, IP67, 19.2 mm (Dia.), Panel Mounting, 250 V AC
Need to manage two different circuits simultaneously? This RS PRO Double Pole Double Throw (DPDT) push button switch is able to control four separate output terminals.
Its green LED ring allows the switch to be easily seen whether it's set to the on or off position. It's supplied ready for panel mounting for ease of installation. Thanks to its compact dimensions, it's suitable for use in areas where space is limited and where conventional switches would be inappropriate.
The switch's silver-plated copper contacts provide a dependable connection. It's regularly used in industrial control gears and medical or communications equipment.
Features and Benefits
