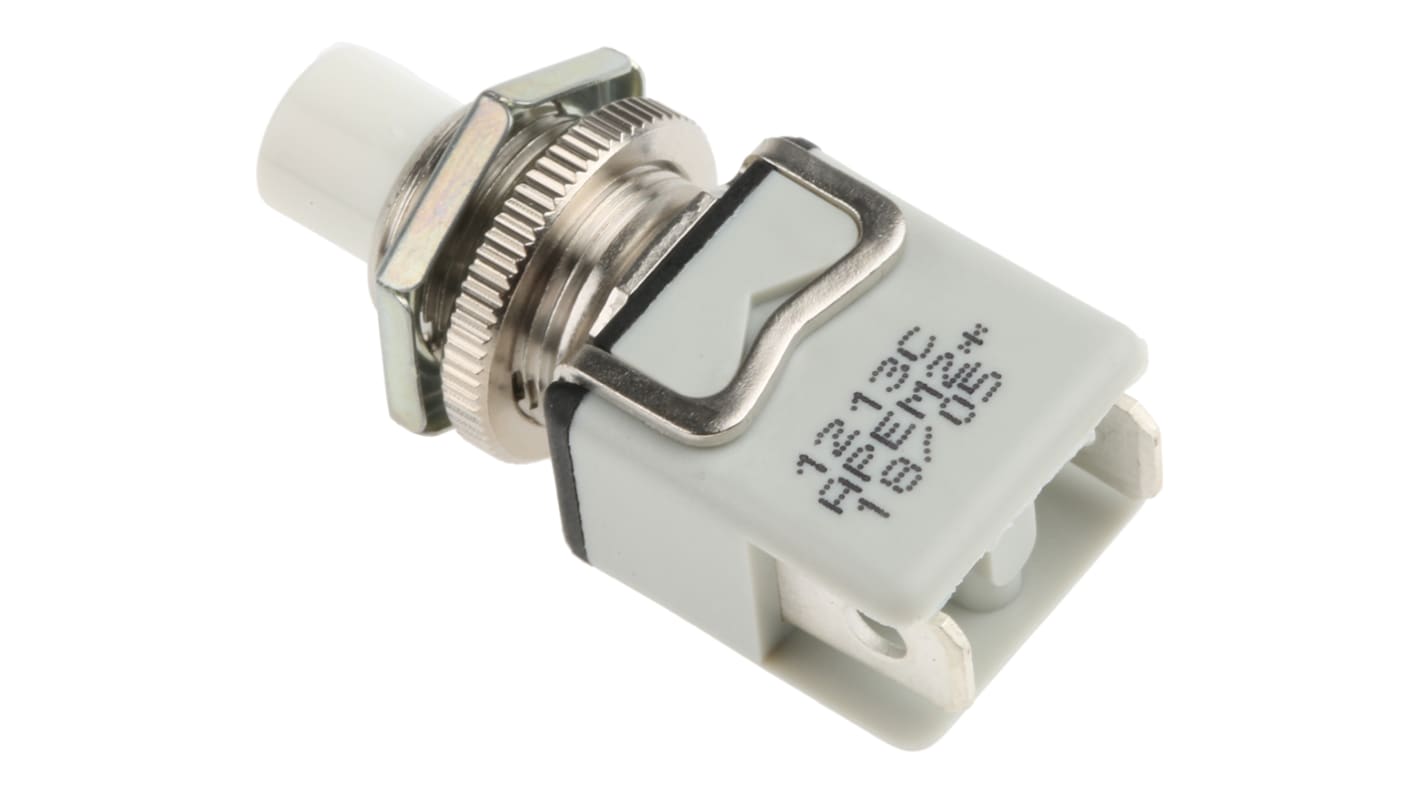

APEM Push Button Switch, Momentary, Panel Mount, 12.2mm Cutout, SPST, 250V ac
- RS庫存編號:
- 119-2920
- 製造零件編號:
- 1213C WHITE
- 製造商:
- APEM
89 在3 工作日內發貨 (海外庫存)
170 在3 工作日內發貨 (海外庫存)
單價 个
HK$43.83
單位 | 每單位 |
---|---|
1 - 9 | HK$43.83 |
10 - 49 | HK$42.52 |
50 - 99 | HK$41.20 |
100 - 249 | HK$40.32 |
250 + | HK$39.44 |
- RS庫存編號:
- 119-2920
- 製造零件編號:
- 1213C WHITE
- 製造商:
- APEM
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
1200 Series Singel Push-Button, 12mm
From Apem, this 1200 series push-button switch is single pole with a momentary action and a low-resistance plunger style actuator. Panel mounting and featuring 0.250in faston terminals, this Apem switch is easy to install.
A push button boot (stock no: 103-6303) and chrome panel nut cap (stock no: 103-6319) are available separately.
A push button boot (stock no: 103-6303) and chrome panel nut cap (stock no: 103-6319) are available separately.
• Contact rating of 4A @ 250Vac, 8A @ 125Vac, 4A @ 24Vdc
• Contact resistance of 10mΩ
• Insulation resistance of 1000MΩ min. @ 500Vdc
• Dielectric strength of 2000Vrms
• Silver Contact material
• Mechanical life of 10000 operations
• Operating temperature of -20 to +55°C
• Panel cut-out: 12.2mm dia.
• Depth behind panel: 22mm
• Bush thread M12 x 0.75
• Chrome button version with conical panel "nut"
• Contact resistance of 10mΩ
• Insulation resistance of 1000MΩ min. @ 500Vdc
• Dielectric strength of 2000Vrms
• Silver Contact material
• Mechanical life of 10000 operations
• Operating temperature of -20 to +55°C
• Panel cut-out: 12.2mm dia.
• Depth behind panel: 22mm
• Bush thread M12 x 0.75
• Chrome button version with conical panel "nut"
Features and Benefits:
Approvals
UL; CSA; VDE
規格
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Panel Cut Out Diameter | 12.2mm |
Mounting Type | Panel Mount |
Push Button Colour | White |
Contact Configuration | 1NO |
Voltage Rating | 250V ac |
Contact Current Rating | 4 A @ 24 V dc |
Contact Material | Silver |
Manufacturer Part No. | 1213C WHITE |
Terminal Type | Solder, Tab |
