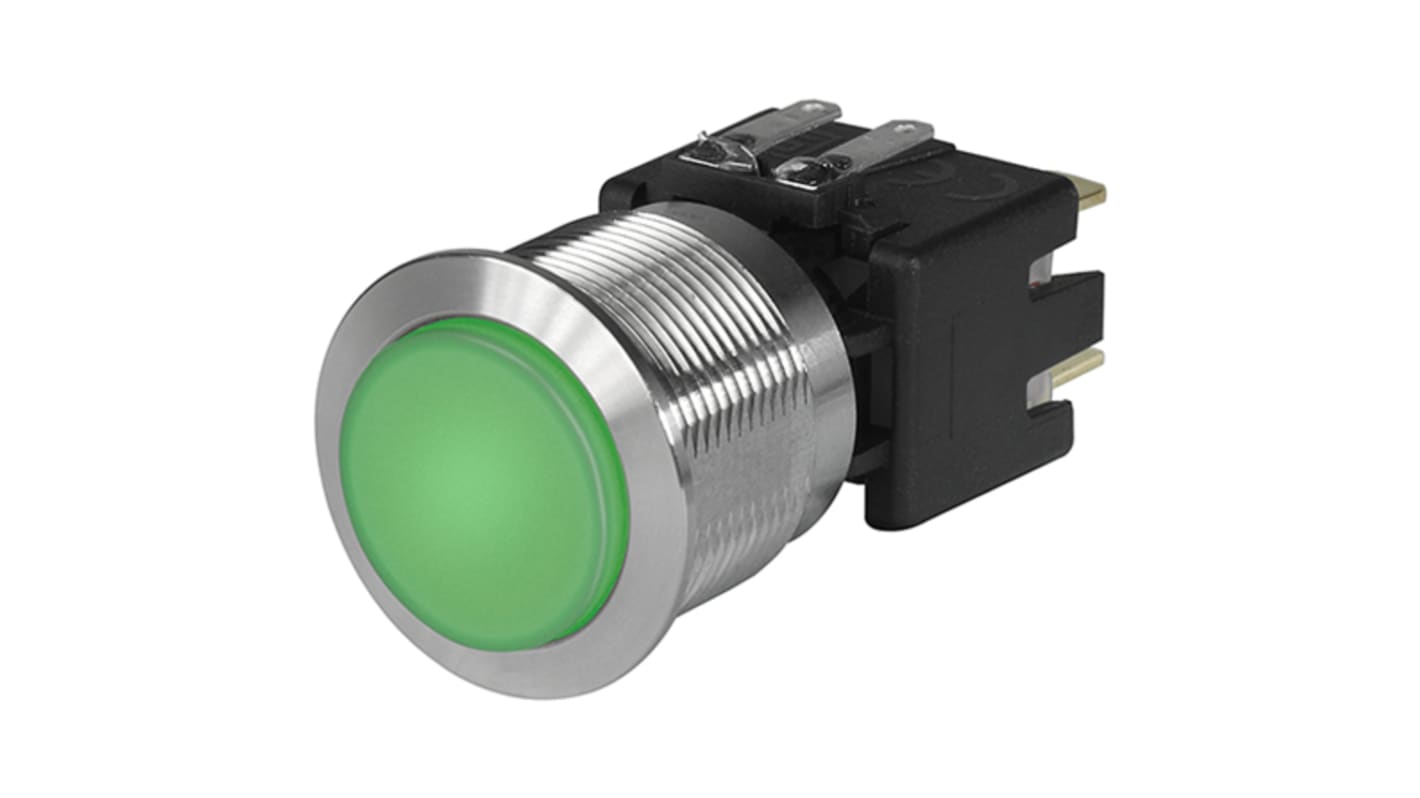

Schurter Illuminated Push Button Switch, Latching, Panel Mount, 22.1mm Cutout, DPDT, Green LED, 30 V dc, 250V ac, IP40,

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Push Button Switches
暫時無法供應
抱歉，我們不知道何時會到貨。
RS庫存編號:
134-6503
製造零件編號:
3-101-039
製造商:
Schurter
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Schurter

Switch Operation

Latching

Illuminated

Yes

Panel Cut Out Diameter

22.1mm

Mounting Type

Panel Mount

Push Button Colour

Green

Contact Configuration

DPDT

Voltage Rating

30 V dc, 250V ac

Push Button Style

Round

LED Colour

Green

IP Rating

IP40, IP64

Contact Current Rating

16 A

Contact DC Voltage Rating

30V

Manufacturer Part No.

3-101-039

Contact AC Voltage Rating

250V

Terminal Type

Solder Pin

COO (Country of Origin):
CH

Anti-Vandal M19 & M22 Push Button Switches - MSM LA CS Series


The sturdy stainless steel housing and the actuator made of scratch-proof ceramic make the MSM LA CS latching action switches especially well suited for use in equipment operating in harsh environments, or applications that require protection against vandalism. These include, vending machines, ticket machines, equipment in restaurant operations, public and sanitary facilities.
With actuator travel greater than 5 mm, the MSM LA CS is ideal for applications where increased feedback of the switching status (ON/OFF) is required. In the OFF state, the actuator position protrudes from the housing; in the ON state, it is recessed to the housing. This makes for user-friendly actuation and also prevents inadvertent switching.

N.O. switching function
Actuation force: 10 N
Shock protection: IK 07

Note

Switch illumination requires a 24 V dc supply

Standards

DIN EN, UL

Approvals

KEMA / ENEC, CSA
