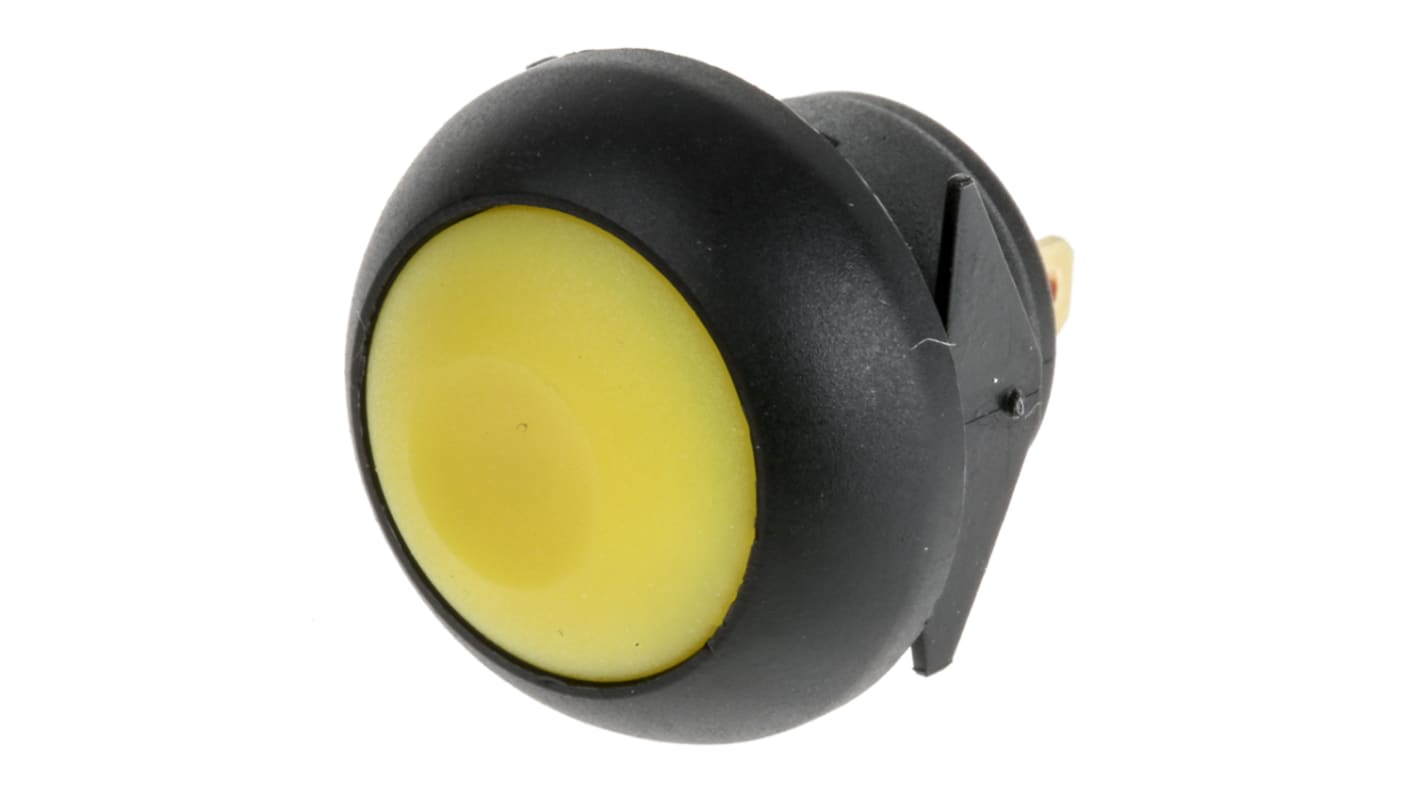

RS PRO Push Button Switch, Momentary, Panel, 13.6 mm Cutout, SPST, Yellow LED, IP67, 50 V dc 250 V ac
- RS庫存編號:
- 144-4357
- 製造商:
- RS PRO
可享批量折扣
查看批量定價選項小計（1 件）*
HK$17.60
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 1,000 件從 2026年11月10日 起裝運發貨
- 加上 500 件從 2027年3月02日 起發貨
- 加上 500 件從 2027年3月30日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 49 | HK$17.60 |
| 50 - 99 | HK$17.10 |
| 100 - 249 | HK$16.60 |
| 250 - 1249 | HK$15.90 |
| 1250 + | HK$15.10 |
* 參考價格
- RS庫存編號:
- 144-4357
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Actuator Colour | Yellow | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Panel Cutout Size | 13.6 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Solder Lug | |
| LED Colour | Yellow | |
| IP Rating | IP67 | |
| Actuator Style | Flat | |
| Contact AC Voltage | 250V ac | |
| Contact DC Voltage | 50V dc | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | SPDT | |
| Standards/Approvals | EN 60529:1991+A1:2001, IEC 60529:2001 | |
| Switch Contact Current | 100mA, 125mA, 200mA, 400mA, 500mA | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Actuator Colour Yellow | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Panel Cutout Size 13.6 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Solder Lug | ||
LED Colour Yellow | ||
IP Rating IP67 | ||
Actuator Style Flat | ||
Contact AC Voltage 250V ac | ||
Contact DC Voltage 50V dc | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration SPDT | ||
Standards/Approvals EN 60529:1991+A1:2001, IEC 60529:2001 | ||
Switch Contact Current 100mA, 125mA, 200mA, 400mA, 500mA | ||
The RS PRO Single Pole Single Throw (SPST) yellow colour panel mount is a momentary push button switch.it has operating temperature range of 30°C to 85°C and rated voltage is 24 VDC. It can be used in harsh environments where dust and water are present such as industrial processing plants. You'll find LED push button switches on a wide range of machines from arcade games to heavy-duty equipment.
Panel Cut Out Size 13.6 (Dia.)mm
Panel Cut Out Diameter 13.6mm
IP Rating IP67
Actuator Colour Yellow
