KNITTER-SWITCH Illuminated Vandal Proof Push Button Switch, Momentary, Panel Mount, DPDT, Red LED, 28 V dc, 250V ac,
- RS庫存編號:
- 164-9513
- 製造零件編號:
- MAV19A0F20E-324-JR
- 製造商:
- KNITTER-SWITCH
可享批量折扣
小計（1 托盤，共 50 件）*
HK$5,599.00
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年3月26日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每托盤* |
|---|---|---|
| 50 - 200 | HK$111.98 | HK$5,599.00 |
| 250 + | HK$109.74 | HK$5,487.00 |
* 參考價格
- RS庫存編號:
- 164-9513
- 製造零件編號:
- MAV19A0F20E-324-JR
- 製造商:
- KNITTER-SWITCH
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | KNITTER-SWITCH | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Silver | |
| Contact Configuration | DPDT | |
| Voltage Rating | 28 V dc, 250V ac | |
| Push Button Style | Round | |
| LED Colour | Red | |
| IP Rating | IP67 | |
| Contact Current Rating | 3 A | |
| Contact Material | Brass | |
| Manufacturer Part No. | MAV19A0F20E-324-JR | |
| Contact DC Voltage Rating | 28V | |
| Contact AC Voltage Rating | 250V | |
| Terminal Type | Solder Lug | |
| 選取全部 | ||
|---|---|---|
品牌 KNITTER-SWITCH | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Mounting Type Panel Mount | ||
Push Button Colour Silver | ||
Contact Configuration DPDT | ||
Voltage Rating 28 V dc, 250V ac | ||
Push Button Style Round | ||
LED Colour Red | ||
IP Rating IP67 | ||
Contact Current Rating 3 A | ||
Contact Material Brass | ||
Manufacturer Part No. MAV19A0F20E-324-JR | ||
Contact DC Voltage Rating 28V | ||
Contact AC Voltage Rating 250V | ||
Terminal Type Solder Lug | ||
- COO (Country of Origin):
- CN

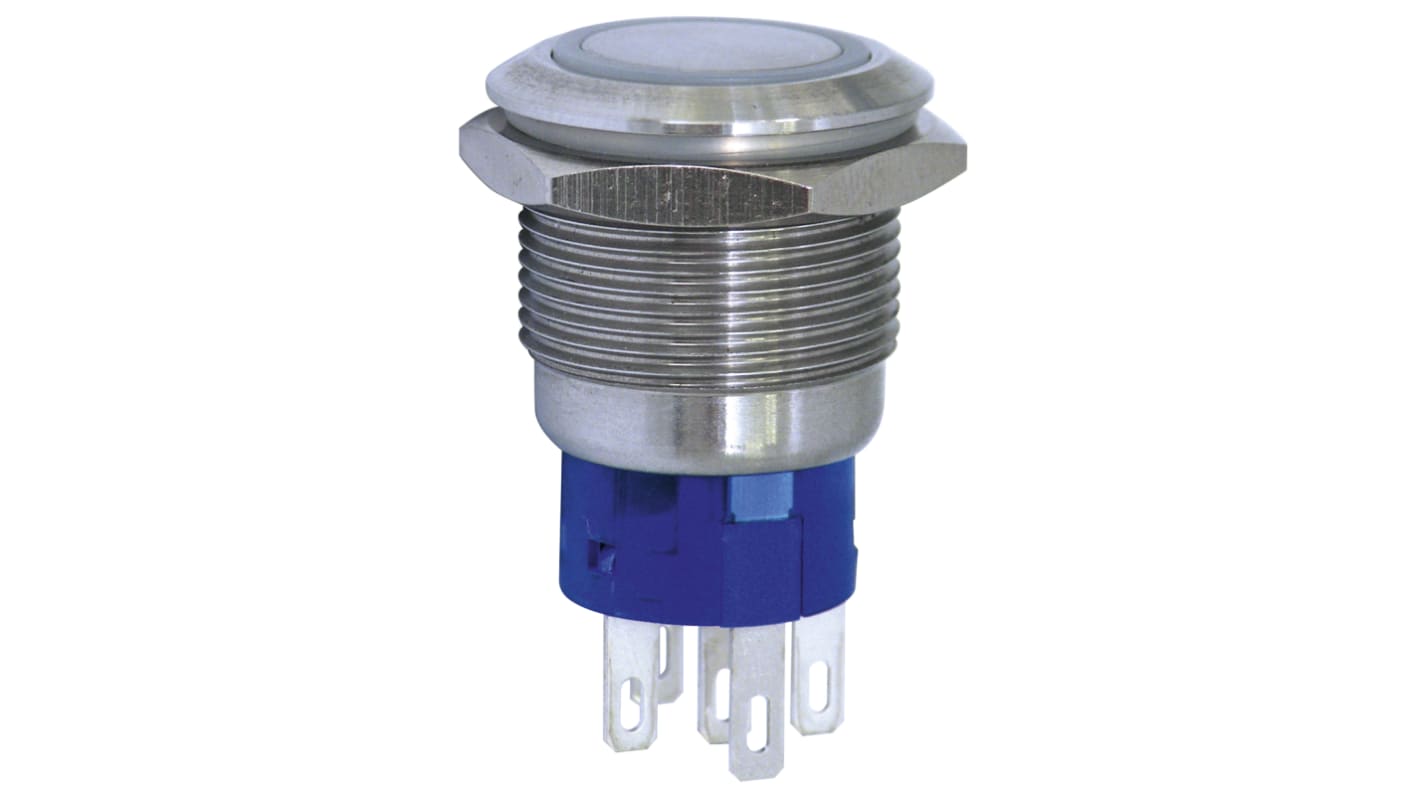

The Knitter-Switch MAV19 series, double pole double throw (DPDT), momentary red LED recessed push button switch has M19x1 bushing size, 250V AC & 28V DC contact voltage rating and 3A contact current rating.
Stainless steel button material
Ring shape lens style
IP67 protection rating
Solder lugs terminals
Gold flash over silver solder tab surface
Operating temperature ranging from -20 °C to +55 °C
LED voltage : 24 V, ca. 12 mA
Ring shape lens style
IP67 protection rating
Solder lugs terminals
Gold flash over silver solder tab surface
Operating temperature ranging from -20 °C to +55 °C
LED voltage : 24 V, ca. 12 mA
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
