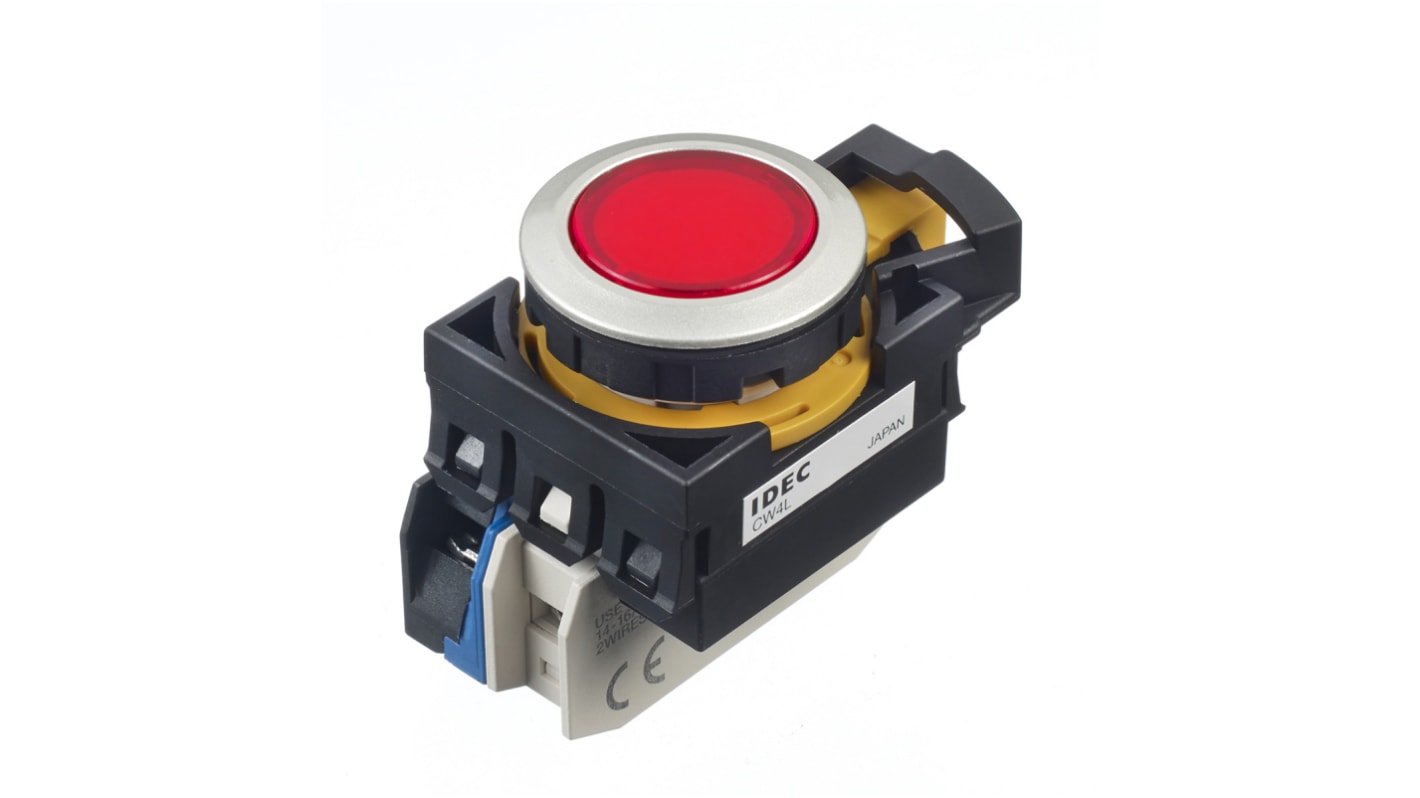

Idec CW Series Illuminated Push Button, Panel Mount, 22mm Cutout, SPST, IP65
- RS庫存編號:
- 168-2752
- 製造零件編號:
- CW4L-M1E10QM4R
- 製造商:
- Idec
查看所有Push Button Switches
- RS庫存編號:
- 168-2752
- 製造零件編號:
- CW4L-M1E10QM4R
- 製造商:
- Idec
- COO (Country of Origin):
- JP
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- JP
產品詳細資訊
The CW series gives a sleek, stylish image to your machines or control panels. The surface is safer with less chance of unexpected operation or accidents by hitting the projections, and also is cleaner with less dust build-up.
Flush silhouette switches
34.5mm depth behind the panel
locking removable contacts
Metallic/Block plastic bezels
light duty switches
34.5mm depth behind the panel
locking removable contacts
Metallic/Block plastic bezels
light duty switches
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
| Attribute | Value |
| Push Button Colour | Red |
| Push Button Diameter | 28mm |
| Mounting Type | Panel Mount |
| Push Button Material | Plastic |
| Illuminated | Yes |
| Push Button Style | Round |
| Contact Configuration | SPST |
| Panel Cut Out Diameter | 22mm |
| Series | CW |
| IP Rating | IP65 |
| Minimum Operating Temperature | -25°C |
| Manufacturer Part No. | CW4L-M1E10QM4R |
| Terminal Type | Screw |
| Maximum AC Voltage | 230 / 240V |
| Body Material | Metal |
| Maximum DC Voltage | 230 / 240V |
| Maximum Operating Temperature | +55°C |
