Panel mounting for use in Zone 1 hazardous areas. Maximum panel thickness is 5mm and the mounting hole required is 30.5mm diameter.,Front element is fixed to panel using the clamp nut. Body/contact block components fitted from rear utilising the built in quick action bayonet feature. The switches are rated at 500V/16A and the signal lamps have a rated voltage of 24Vdc.Housings are made from EN polyamide and glass reinforced polyester. Operating temperature: -55 to +50°C.
1 x N/O and 1 x N/C contact block included I, O, START and STOP labels included Dimensions 57 x 38 x 77mm (behind panel); front of panel depth 12mm
Certificate No.
PTB 97 ATEX 1081U
Group and Category
II 2 G EEx d e IIC T6

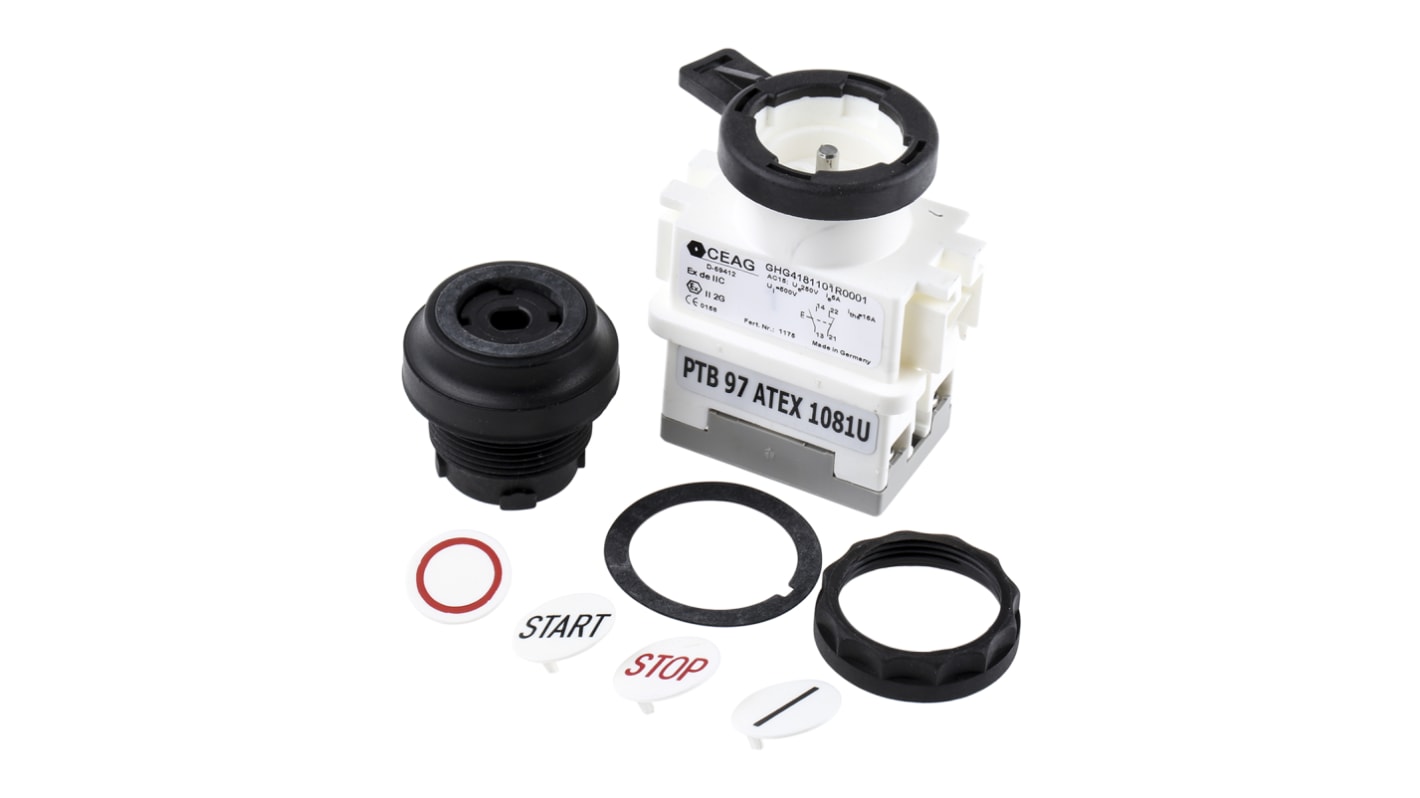

Eaton GHG4 Series Push-Button, SPDT, IP66 - GHG4188115R0001
This push-button by Eaton is designed with a SPDT contact configuration, making it suitable for a wide range of applications. It boasts reliable performance in various environments. With its compact design and durable construction, this push-button is a versatile choice for industrial settings.
Features & Benefits
• SPDT contact configuration for enhanced versatility • Durable construction for long-lasting performance • Compact design for space-saving installation • Suitable for hazardous areas with ATEX certification • IP66 rating for protection against dust and water ingress
Applications
• Ideal for panel mounting in control systems • Suitable for use in control panels for industrial automation • Can be used for applications requiring a round push-button design
Can it be used in hazardous areas?
Yes, this push-button is ATEX certified, making it suitable for hazardous environments.
Will it fit in a 30mm panel cutout?
Yes, the push-button is designed for a panel cutout of 30mm diameter.
Is it suitable for industrial automation?
Yes, this push-button is reliable for use in industrial automation applications.
Note
Eaton formerly known as CEAG Push buttons 202-3881 or 202-3897 can be used with control station 321-161.
