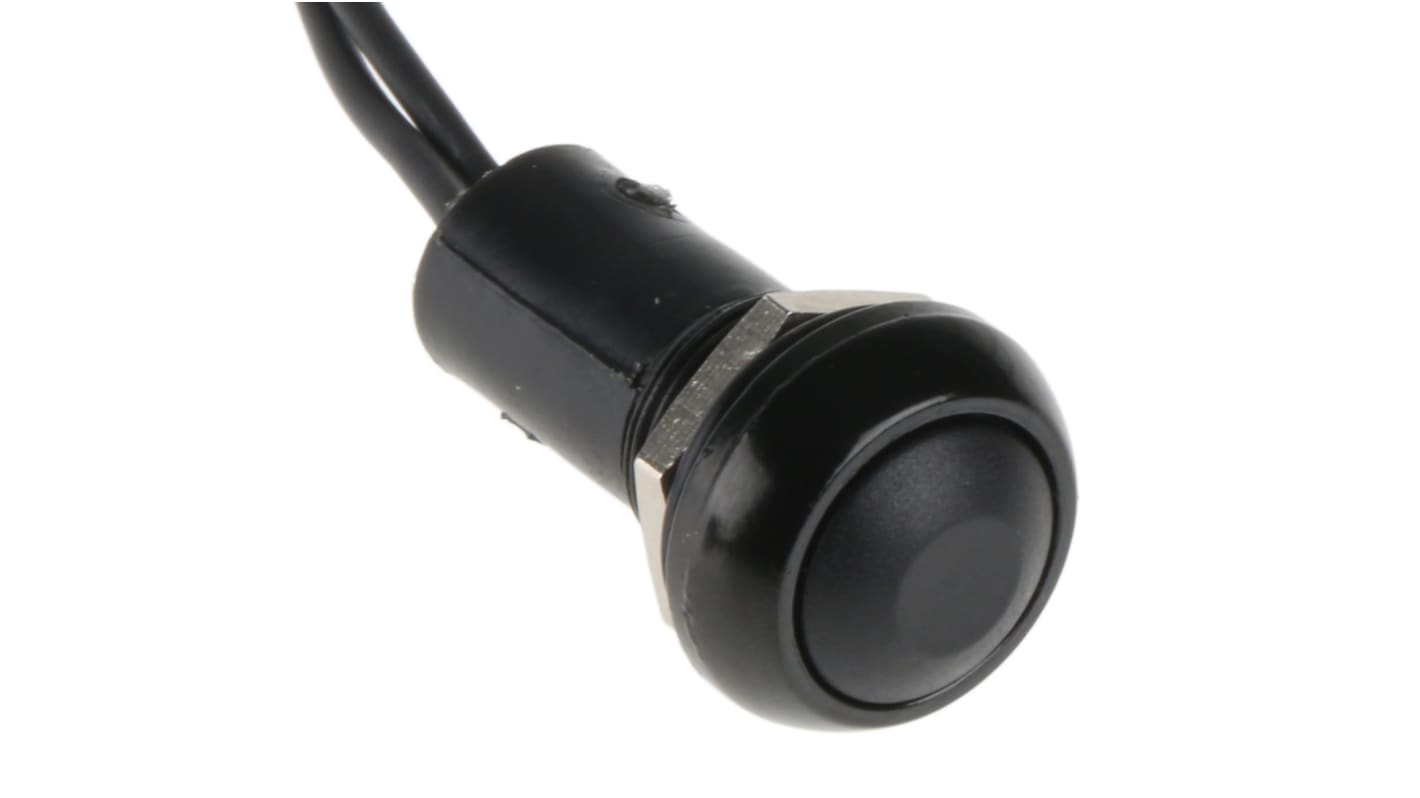

APEM Push Button Switch, Momentary, Panel Mount, 13.6mm Cutout, SPST, 48V ac, IP67
- RS庫存編號:
- 236-9446
- 製造零件編號:
- IPR3FAD-2
- 製造商:
- APEM
372 在3 工作日內發貨 (海外庫存)
150 在3 工作日內發貨 (海外庫存)
單價 个
HK$199.83
單位 | 每單位 |
---|---|
1 - 9 | HK$199.83 |
10 - 49 | HK$195.65 |
50 - 99 | HK$189.66 |
100 - 249 | HK$185.08 |
250 + | HK$181.08 |
- RS庫存編號:
- 236-9446
- 製造零件編號:
- IPR3FAD-2
- 製造商:
- APEM
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
Sealed momentary pushbutton switches IP 67 Series IP – wire leads, ø 12mm bushing
For harsh environments.
Resistant to salt spray.
Very robust: IK06.
Excellent tactile feedback.
Available in round or square version.
500mm wire lead terminals.
Resistant to salt spray.
Very robust: IK06.
Excellent tactile feedback.
Available in round or square version.
500mm wire lead terminals.
Standards
EN 50102 - IEC 512-4 - IEC 512-6
![](https://media.rs-online.com/t_line/LF236937-10.gif)
Standards
EN 50102 - IEC 512-4 - IEC 512-6
規格
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Panel Cut Out Diameter | 13.6mm |
Mounting Type | Panel Mount |
Push Button Colour | Black |
Contact Configuration | Single Pole Single Throw (SPST) |
Voltage Rating | 48V ac |
Push Button Style | Dome |
IP Rating | IP67 |
Contact Current Rating | 5 A @ 28 V dc |
Contact Material | Gold Plated Silver |
Manufacturer Part No. | IPR3FAD-2 |
Terminal Type | Through Hole |
