RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, DPST, Red LED, 250V ac, IP65

RS庫存編號:: 248-9166
製造商:: RS PRO

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, DPST, Red LED, 250V ac, IP65

可享批量折扣

小計（1 件）*

HK$227.70

訂單超過 HK$250.00 免費送貨

有庫存

30 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 9	HK$227.70
10 - 99	HK$220.90
100 +	HK$181.80

* 參考價格

RS庫存編號:: 248-9166
製造商:: RS PRO

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	RS PRO
	Switch Operation	Momentary
	Illuminated	Yes
	Series	SW19S
	Panel Cut Out Diameter	19.2mm
	Mounting Type	Panel Mount
	Contact Configuration	DPST
	Voltage Rating	250V ac
	Push Button Style	Round
	LED Colour	Red
	IP Rating	IP65
	Contact Current Rating	5 A @ 250 V ac
	Contact Material	Silver Alloy
	Contact AC Voltage Rating	250V
	Case Colour	Natural
	Legend	Dot
	Minimum Operating Temperature	-40°C
	Terminal Type	Screw
	Maximum Operating Temperature	+80°C

	選取全部
	品牌 RS PRO
	Switch Operation Momentary
	Illuminated Yes
	Series SW19S
	Panel Cut Out Diameter 19.2mm
	Mounting Type Panel Mount
	Contact Configuration DPST
	Voltage Rating 250V ac
	Push Button Style Round
	LED Colour Red
	IP Rating IP65
	Contact Current Rating 5 A @ 250 V ac
	Contact Material Silver Alloy
	Contact AC Voltage Rating 250V
	Case Colour Natural
	Legend Dot
	Minimum Operating Temperature -40°C
	Terminal Type Screw
	Maximum Operating Temperature +80°C

豁免

COO (Country of Origin):: CN

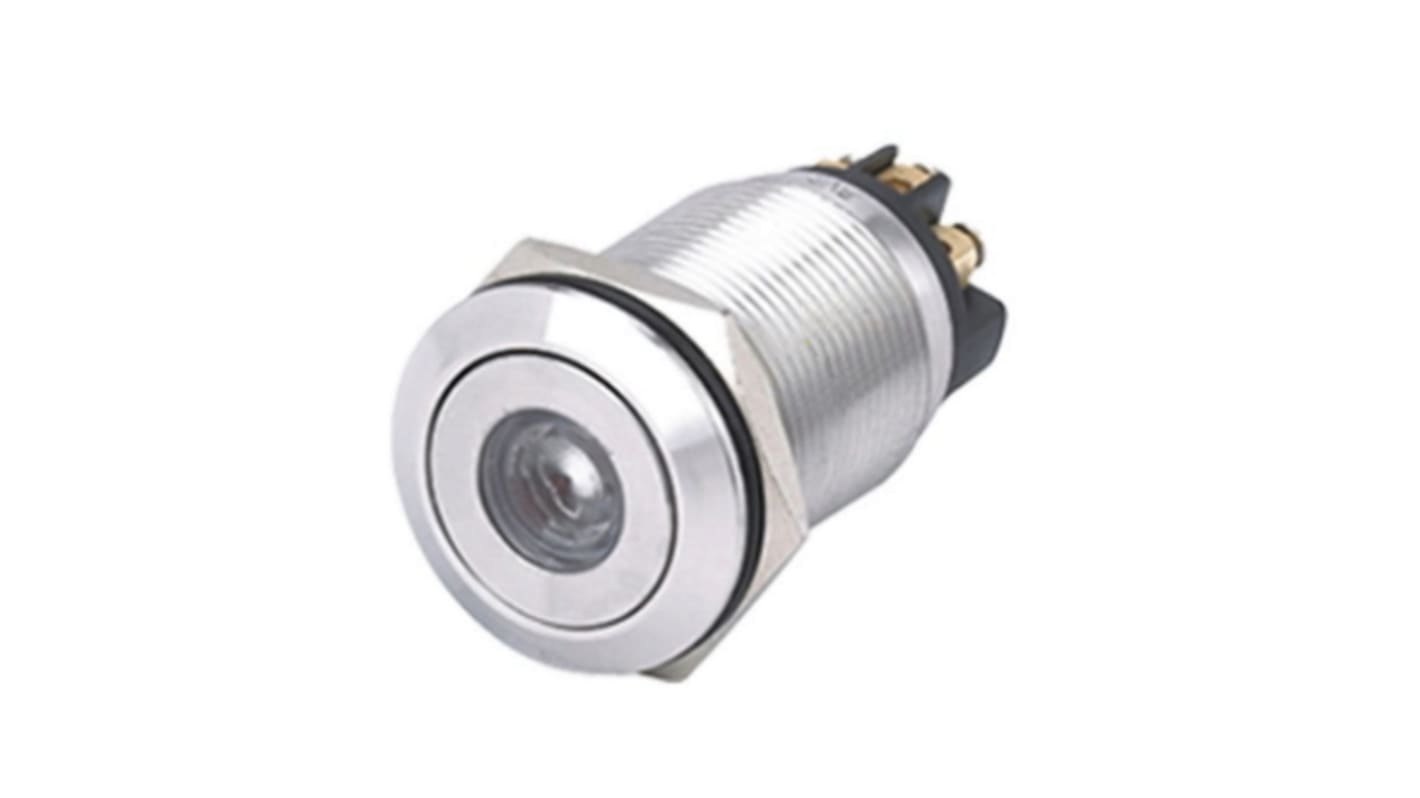

RS PRO Anti-Vandal Red Illuminated Dot Push Button Switch, 19.2mm

RS PRO’s high quality Stainless Steel anti vandal pushbutton is ideal for use in harsh conditions or public facing applications and is designed to withstand damage from physical attacks and repeated use. The illuminated dot in the centre this LED push button is highly visible and ideal for use in areas with low light levels.

The RS PRO IP65 push button is panel mounted for easy and quick installation and is rated for water resistance and ingress protection making it suitable for use in internal and external applications.

Vandal resistant metal push buttons have a wide range of applications including typically panel alarms, door and gate access control, elevators and escalators as well as lift and instrument control.

Features and Benefits

Red LED illumination

Stainless Steel push button

Vandal resistant

Panel mount installation

Momentary switch operation

≥1,000,000 operations

≥1,000 MΩ Insulation Resistance

Screw terminals

Standards and Approvals: IP65, IK10

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Supplied with

1 x Switch, 1 x Hex Nut, 1 x O-Ring
